6-105 6. [Advanced] How to use parameters
3
4
6
9

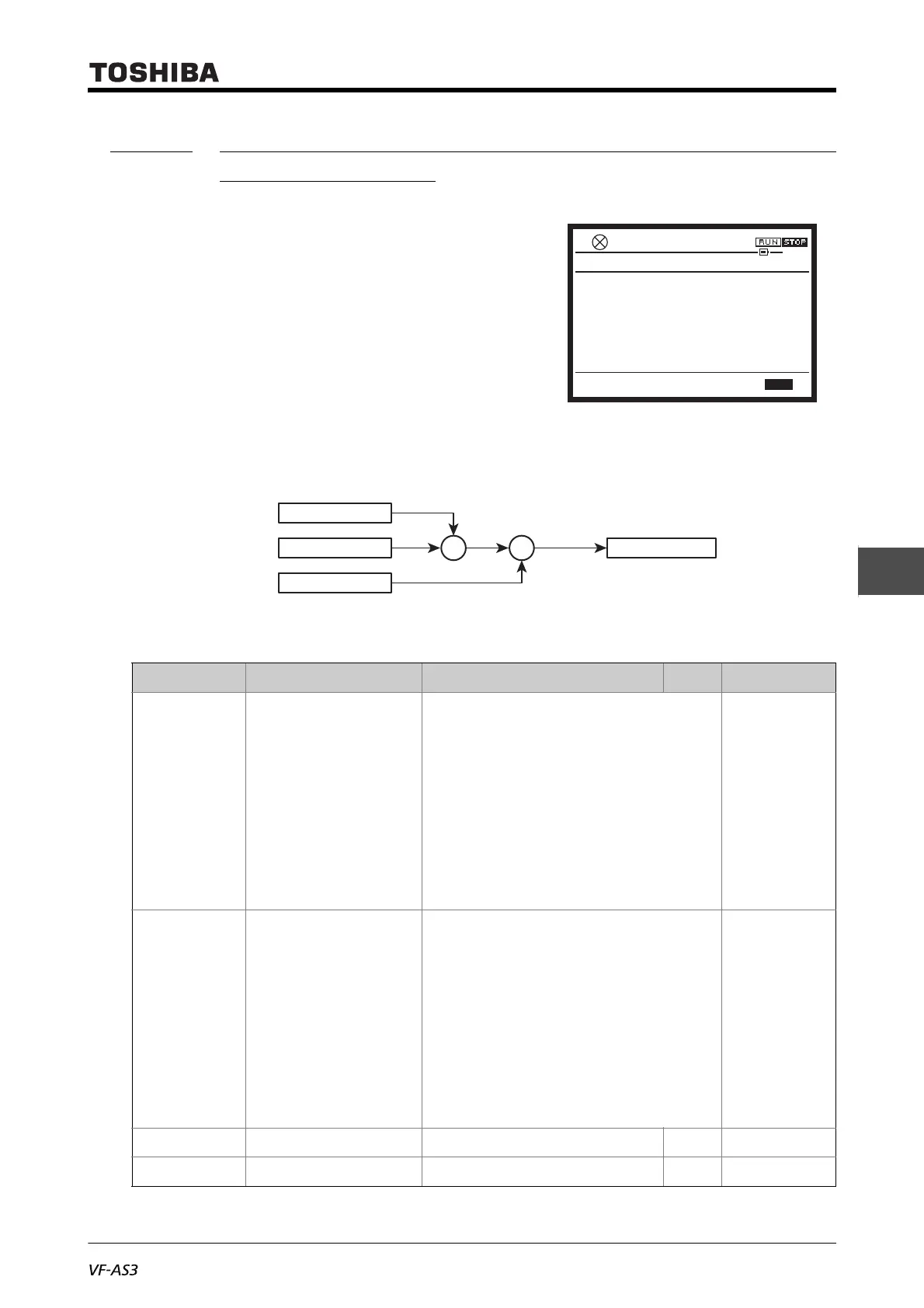

6. 25. 3 Selecting tension control torque bias input and load
sharing gain input
<F423: Tension control torque bias input>
<F424: Load sharing gain input>
<F727: Panel tension torque bias>
<F728: Panel load sharing gain>
■ Function
These parameters are used to select tension control torque bias input and load sharing gain input.
■ Parameter setting
Title Parameter name Adjustment range Unit Default setting
F423 Tension control torque
bias input
0: -
1: Terminal RR
2: Terminal RX
3: Terminal II
4: Terminal AI4 (option)
5 - 11: -
12: F727
13 - 19: -
20: Embedded Ethernet
21: RS485 communication connector 1
22: RS485 communication connector 2
23: Communication option
0
F424 Load sharing gain input 0: -
1: Terminal RR
2: Terminal RX
3: Terminal II
4: Terminal AI4 (option)
5 - 11: -
12: F728
13 - 19: -
20: Embedded Ethernet
21: RS485 communication connector 1
22: RS485 communication connector 2
23: Communication option
0
F727 Panel tension torque bias -250 to +250 % 0
F728 Panel load sharing gain 0 - 250 % 100
0.0HzSTOP
13:42
F727 : Panel tension torque bias
Min: -250 Max: 250
X1000 X100 X10 X1
%
+0
Load sharing gain
᳒
Torque reference Torque command
Tension control torque bias
Ქ
Ქ
Ქ
