10-15 10. Selection and installation of peripheral devices
3
9
10

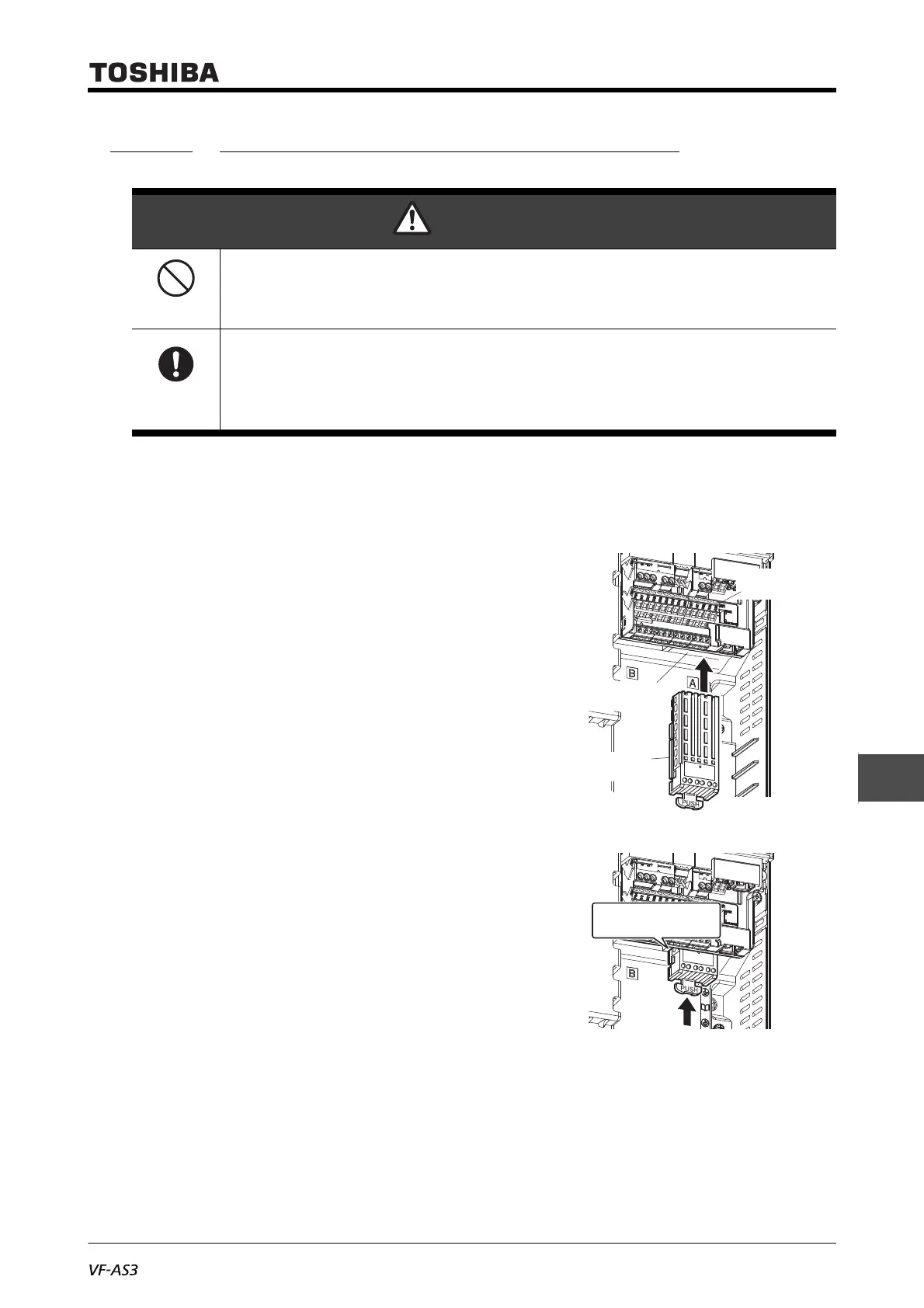

10. 4. 2 Mounting/removing insert type options
Mounting/removing methods of a cassette option to the option slot A, B are as follows.
When using the option slot 3, refer to [10. 4. 3].
■ Mounting (Option slot A, B)
1 Remove the front cover and other parts.
Covers to be removed at the time of wiring vary
depending on the frame size.
For how to remove, refer to [2. 2].
2 Insert a cassette option to the option slot A, B until
you hear a click sound.
3 Perform wiring to the cassette option.
4 When wiring is complete, mount the removed
cover.
For how to mount them, refer to [2. 2].
■ Removing (Option slot A, B)
1 Remove the front cover and other parts.
Covers to be removed vary depending on the frame size.
For how to remove, refer to [2. 2].
2 Remove wiring to the cassette option.
WARNING
Prohibited
• Do not connect any communication options other than supported by option slots.
It can cause failure and accident.
Mandatory
action
• Mounting/removing options should be performed 15 minutes or more after the power is shut off,
and checking the charge lamp of the inverter is OFF.
The inverter and options may be damaged.
• Do not use tools for mounting/removing options.
The inverter and options may be damaged.
Cassette
option
Option slot
Control terminal
block
Insert until you hear a
click sound.
