■ Front cover

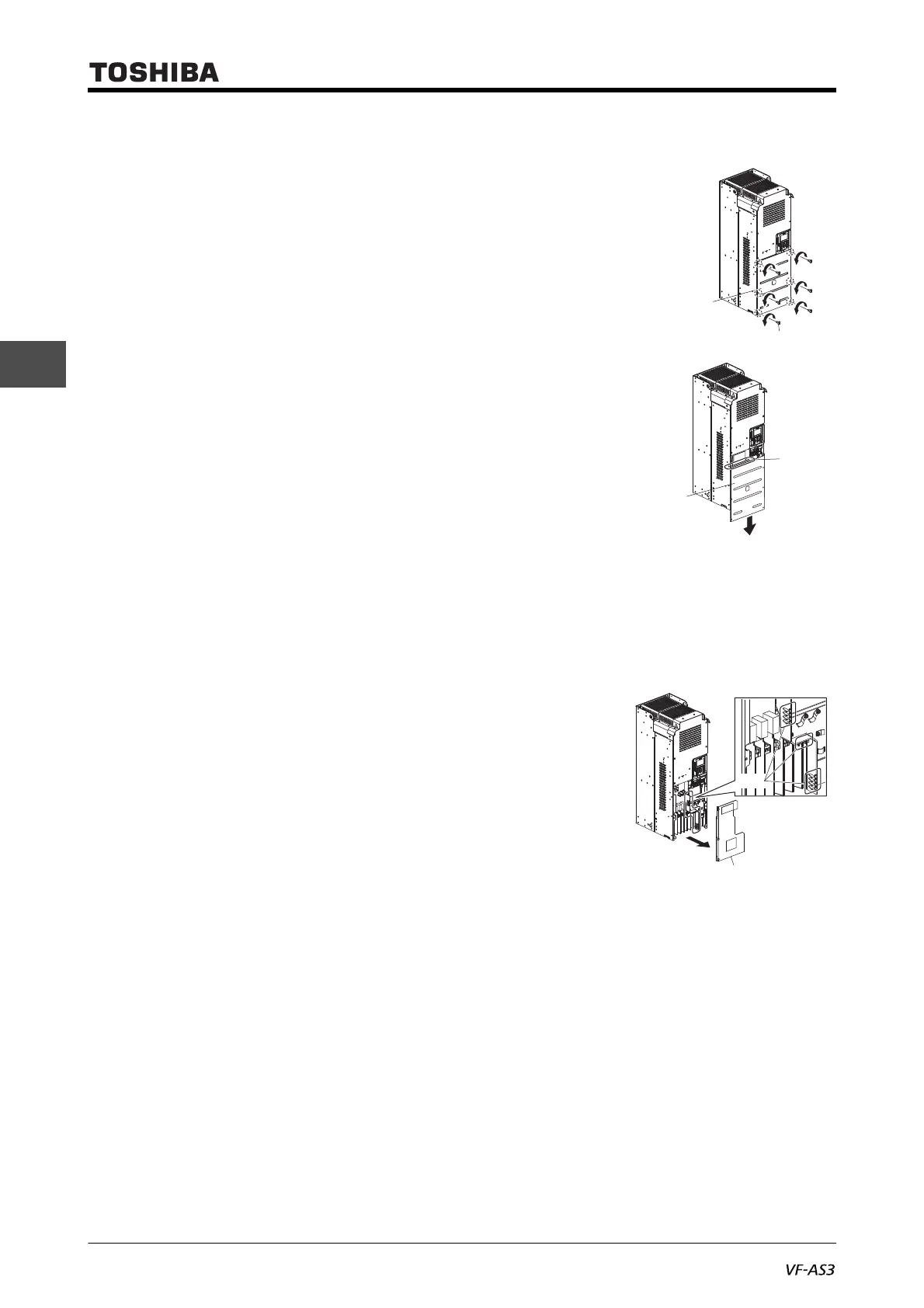

1 Remove six screws of the front cover.
Store the removed screws so as not to be lost.
2 Lift the bottom end of the front cover, pull the entire cover
downward and remove it from the unit.
Since the upper part of the front cover has an inserted part,
the cover cannot be removed just by lifting it.
3 Mount the front cover in the reverse procedure.
■ Transparent cover
1 Remove the front cover.
Refer to the procedure above.
2 Remove the tab that holds down the transparent cover, lift
the transparent cover and remove it from the unit.
The transparent cover is just to be fitted in. It has no screw.
3 Mount the transparent cover in the reverse procedure.
■ Wiring duct
1 Remove the front cover and the transparent cover.
Refer to the procedure above.
Front cover
Screw
Insertion
Front cover
Tab
Transparent cover
