Toshiba TOSVERT VF-AS3 User Manual

E6582062
10-19 10. Selection and installation of peripheral devices
3
9
10

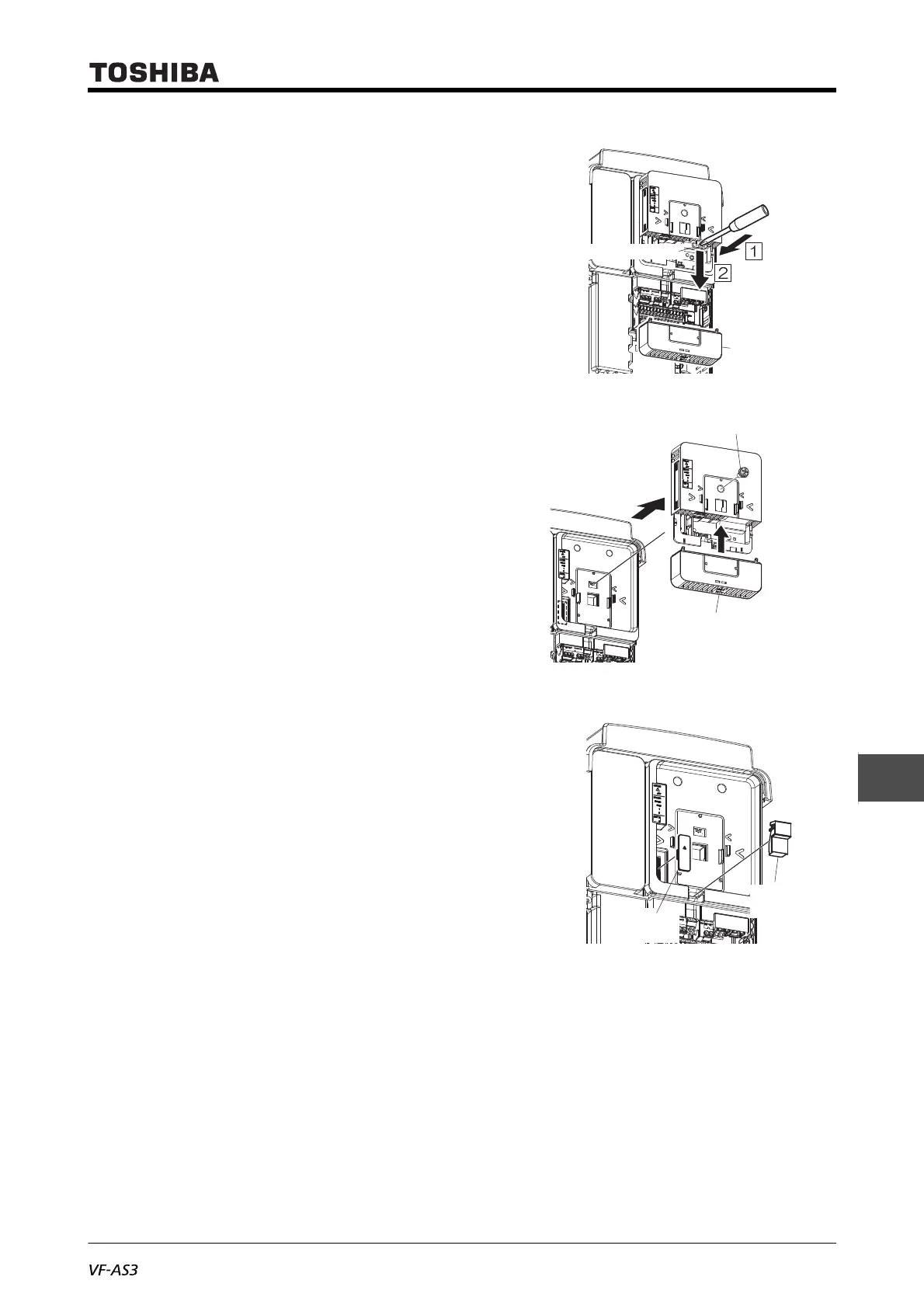

5 While pressing the release tab down, pull the cas-
sette option to remove from slot C.
6 Remove the Option adaptor.
Mount the adaptor cover removed before.
7 While pressing the PUSH part located on both
right and left sides of the operation panel, pull the
operation panel straight upward.
The operation panel is connected to the unit with
the connector on the center of back side.
Adaptor
cover
Release tab
Screw
(does not come off)
Adaptor cover
Connector
cover
Wiring
cover

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
