Toshiba TOSVERT VF-AS3 User Manual

E6582062
10. Selection and installation of peripheral devices 10-18
9
10

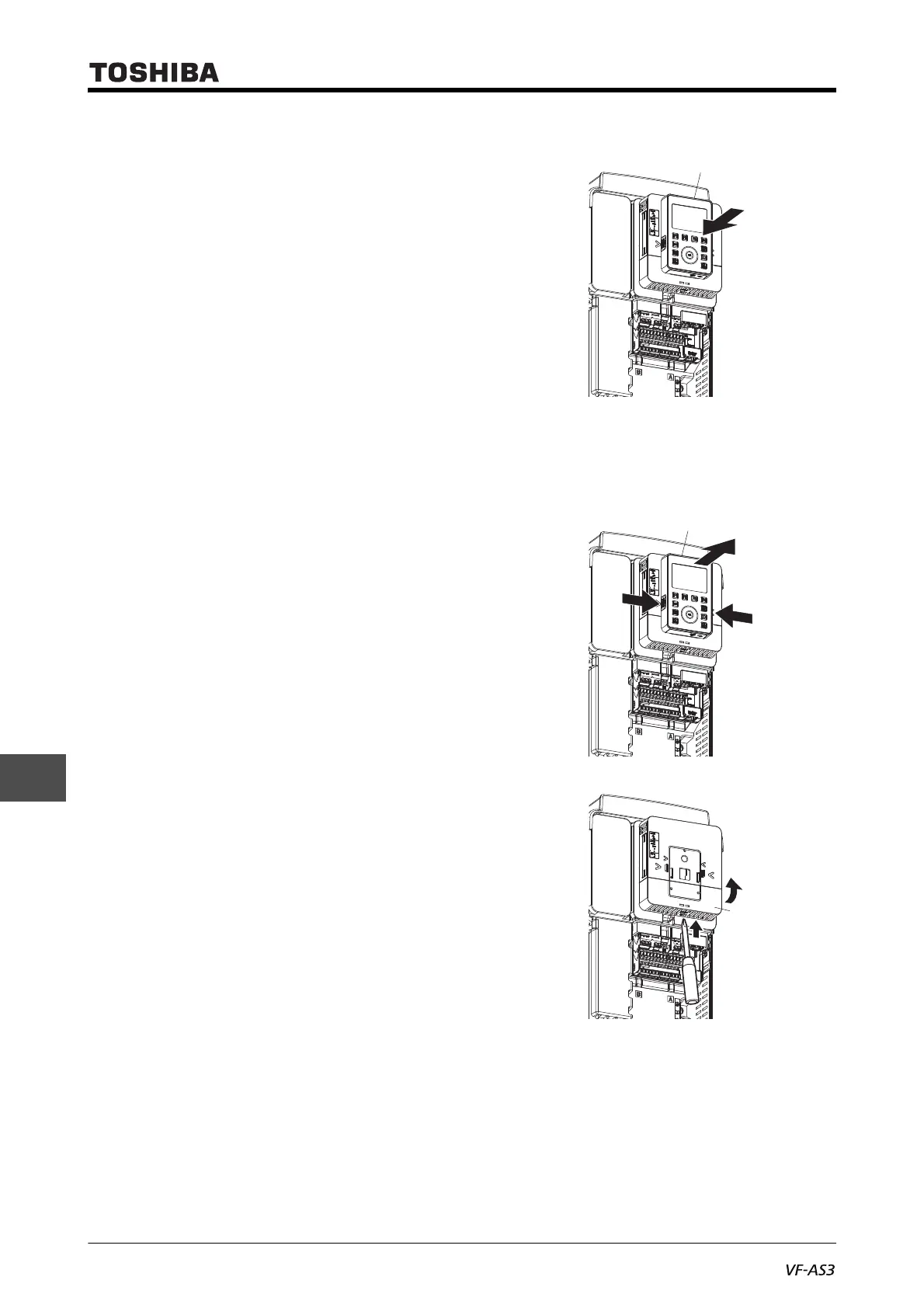

9 After wiring is complete, mount the adaptor cover
on the Option adaptor.
Be cautious that the wiring of the cassette option
does not get pinched by the adaptor cover.
The removed operation panel can be installed on
top surface of the Option adaptor.
10 Mount the removed front covers.
■ Removing of option
1 Remove the front covers and other parts in
advance. Covers to be removed at the time of wir-
ing vary depending on the frame size of inverter.
2 While pressing the PUSH part located on both right
and left sides of the operation panel, pull the opera-
tion panel straight upward.
The operation panel is connected to the unit with
the connector on the center of back side.
3 Insert a screwdriver, etc. to the lock removal hole of
the Option adaptor cover to push and unlock, and
remove the adaptor cover of the Option adaptor.
4 Remove wiring to the cassette option.
Operation panel
Operation panel
Adaptor
cover

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
