Toshiba TOSVERT VF-AS3 User Manual

E6582062
2-29 2. Installation and wiring
2
3
9
10

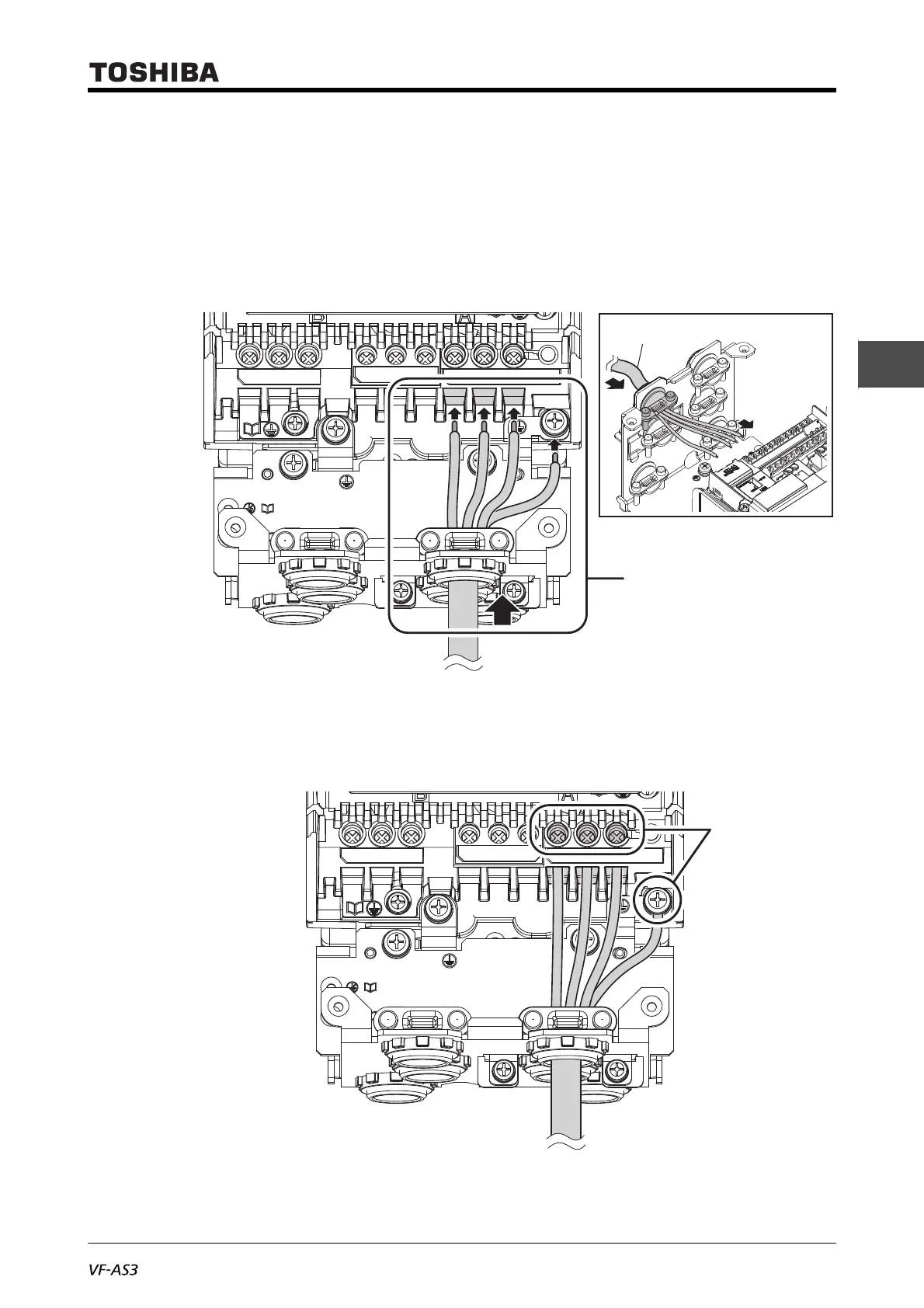

4 Pass the motor wiring through the cable clamp.
The cable clamp exists only in frame size A1 to A5.
5 Mount the motor wiring to the screw of each corresponding terminal.
Mount ferrules with insulation sleeve terminal and crimp-style terminal with insulation sleeve to
the end of each wire of the motor in advance. For cautions, refer to "■Wiring" of [2. 3. 1].
6 Tighten the screws of the terminals [U/T1], [V/T2], and [W/T3] and a terminal [PE].
For the recommended tightening torque, refer to "■Recommended tightening torque of power
terminal screws" of [2. 3. 3].
Pass the cable
Cable
Tighten screws (x4)

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
