Toshiba TOSVERT VF-AS3 User Manual

E6582062
2. Installation and wiring 2-30
2
9

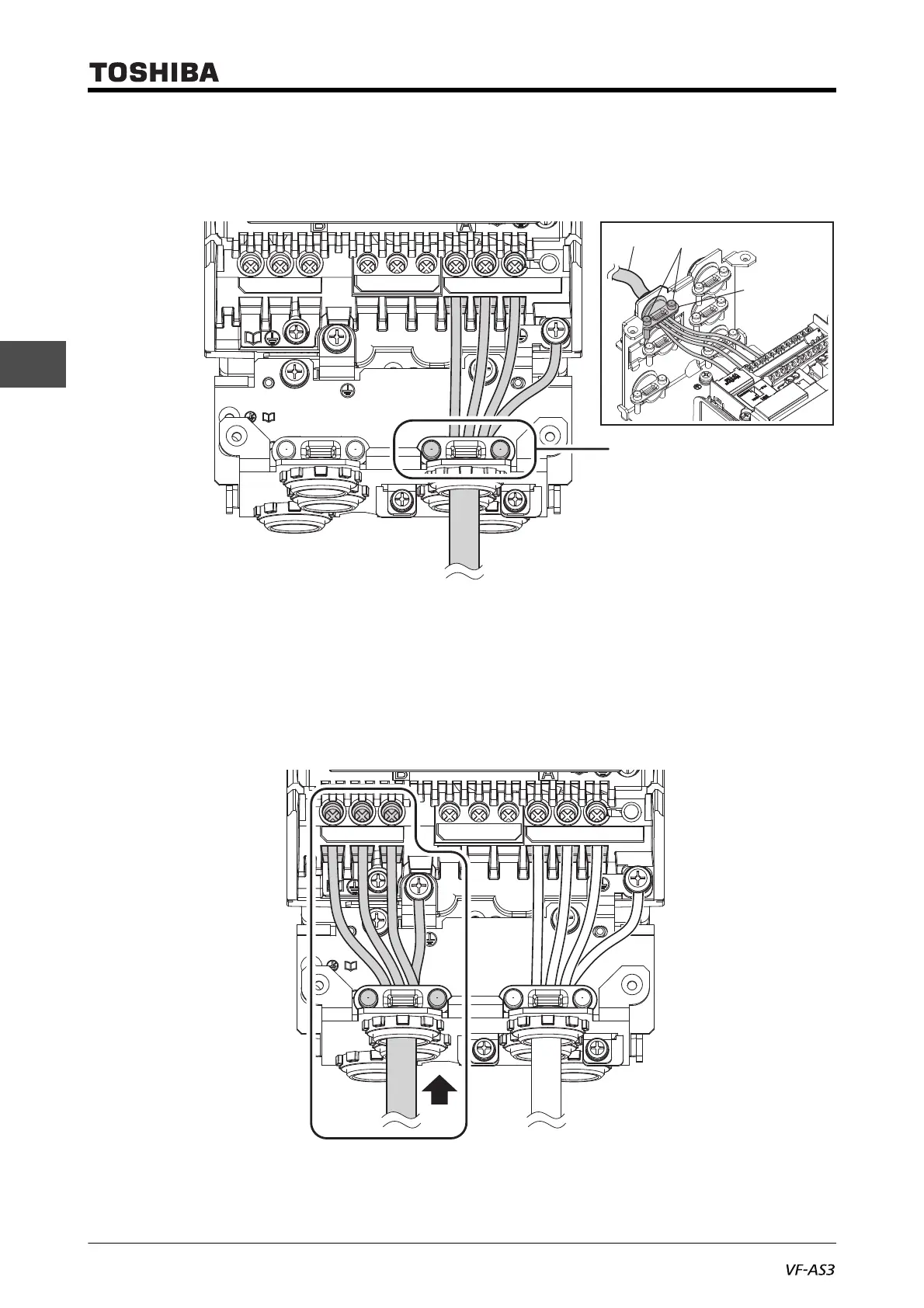

7 Tighten two screws of the cable clamp and fix the motor wiring (four wires) with the cable
clamp.
The cable clamp exists only in frame size A1 to A5.
8 Similarly, mount the power supply wiring to the terminals [R/L1], [S/L2], and [T/L3] and a terminal
[PE] after passing it through other cable clamp.
For the recommended tightening torque of the screws, refer to "■Recommended tightening
torque of power terminal screws" of [2. 3. 3].
Also fix the power supply wiring with the cable clamp.
The cable clamp exists only in frame size A1 to A5.
9 When connection is complete, mount the front cover.
For how to mount, refer to [2. 2. 1].
Tighten the two screws of the clamp
to fix the cable
Cable
Screws (x2)
Clamp

Toshiba TOSVERT VF-AS3 Specifications

General

Model	TOSVERT VF-AS3
Category	Inverter
Overload Capacity	150% for 60 seconds
Cooling Method	Forced Air Cooling
Control Method	V/f control, Sensorless vector control
Braking Unit	Built-in
Communication Protocols	Modbus RTU, DeviceNet, Profibus DP
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault
Enclosure	IP20
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
