Toshiba TOSVERT VF-S11 User Manual

E6581158
F-2
6

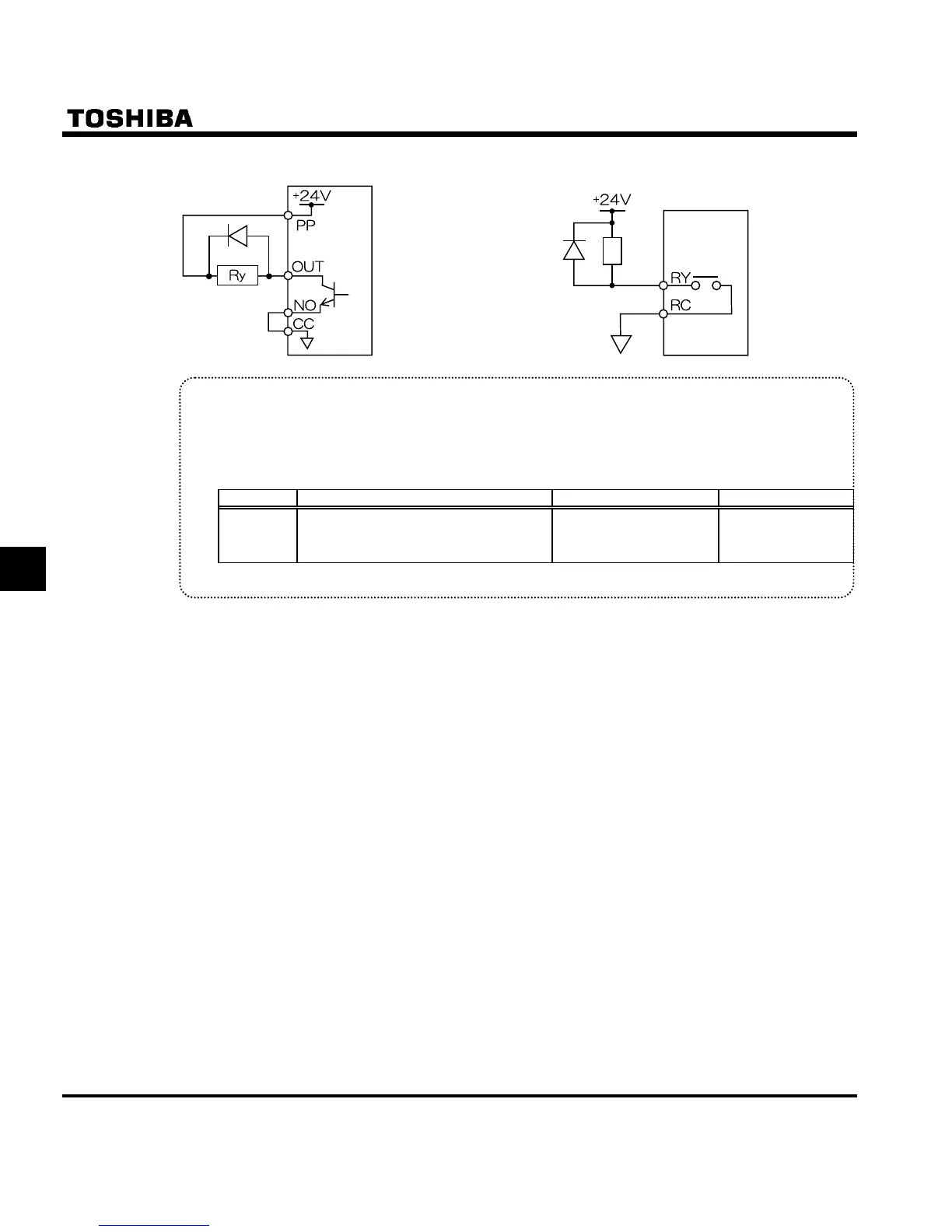

An example of the connection of the open collector OUT terminal An example of the connection of the relay output terminals
• Output terminal setting
Output of the low-speed signal (ON signal) between the RY and RC terminals is the factory default
setting of the output terminal selection parameter. This setting must be changed to invert the polarity of
the signal.
[Parameter setting]
Title Function Adjustment range Default setting
H
Output terminal selection 1A (RY-RC)
0-255
(See Section 11, K-18)
4 (ON signal)
or
5 (OFF signal)
Set H to output to OUT-NO terminals.

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
