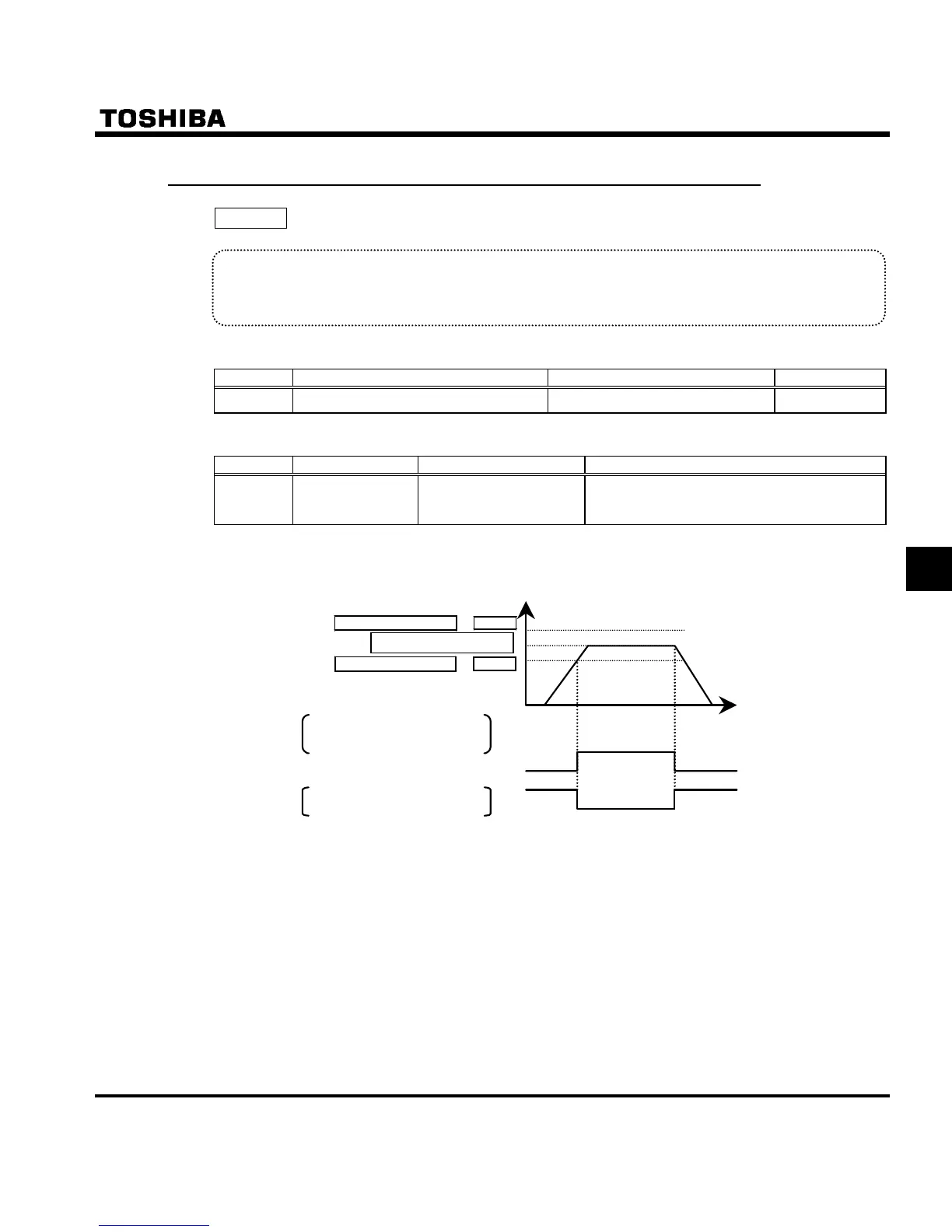

6.1.2 Output of designated frequency reach signal
H : Speed reach detection band
• Function
When the output frequency becomes equal to the setting by designated frequency ±H, an ON or
OFF signal is generated.
Q Parameter setting of designated frequency and detection band
Title Function Adjustment range Default setting
H Speed reach detection band
0.0 ∼ HJ (Hz)
2.5
Q Parameter setting of output terminal selection
Title Function Adjustment range Default setting
H
Output terminal
selection 2A
(OUT-NO)
0-255
(See Section 11, K-18)
6: RCH (designated frequency - ON signal), or
7: RCHN (designated frequency - OFF signal)
Note: Select the H parameter to specify RY-RC terminal output, or the H parameter to specify
FLA-FLC-FLB terminal output.
Output frequency [Hz]
Time [s]
Designated frequency
− H
ON
OFF
Designated frequency  +  H
Designated frequency
Set frequency speed reach signal
P24-OUT (Default setting)
RY-RC
FLA/FLC/DLB
Set frquency spped reach signal:
Inverted
ON
OFF
0

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
