Toshiba TOSVERT VF-S11 User Manual

E6581158
J-13
10

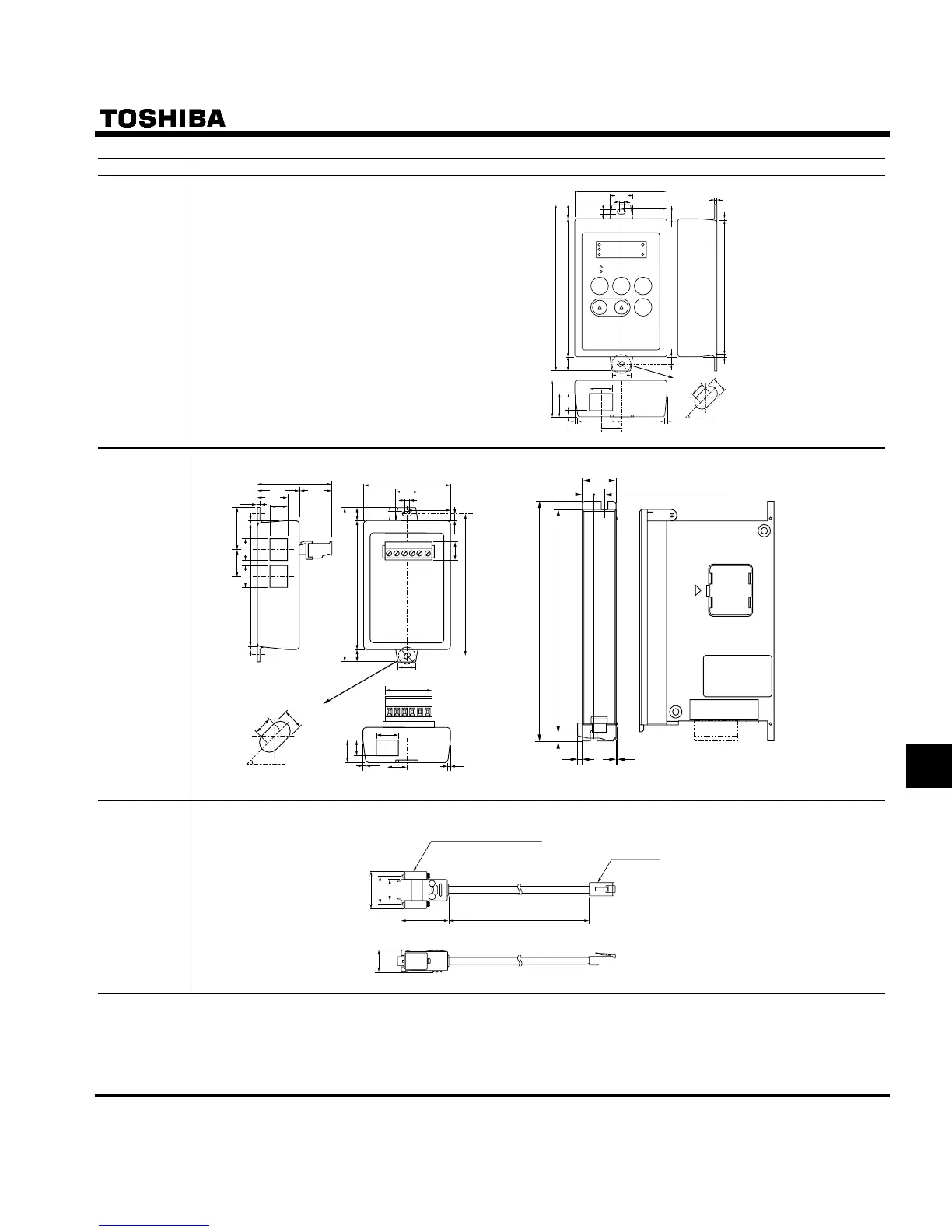

Devices External dimensions and connections
Extension
panel
Extension panel type: RKP001Z
Cable type (1m): CAB0011
(3m): CAB0013
(5m): CAB0015
RS485
communicati
on converter
unit
・
2-port type: RS4001Z
・
8-port type: RS4002Z
Cable type (1m): CAB0011, (3m): CAB0013, (5m): CAB0015
RS232C
communicati
on converter
unit
RS232C cable type: RS20035
60.0
30.0
2.0
2.8
3.2 holes
3.2 holes
11.0
112.0
90.0
5.0
5.0
1.0 1.088.0
11.0
27.1
19.6
13.52.0
2.0
16.0
45°
9.0
15.9
8.0
13.2
1.0 1.0
60.0
30.0
2.0
2.8
3.2 holes
3.2 holes
11.0
112.0
88.0
19.9 31.6
90.0
5.0
1.0
1.0
100.0
12.6
11.0
19.6
13.5
45°
9.0
15.9
13.2
1.0 1.0
28.0
16.0
2.0
49.7
22.6
27.1
19.6
13.5
15.9 15.9
D-sub9 pin connetor (socket)
JR45 connector
33.2
25.0
19.2
19.6
40.2 5m
25
8.5
8 (Installation dimension)
180
6
168 (Installation dimension)
4
1

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
