E6581158
J-12
10

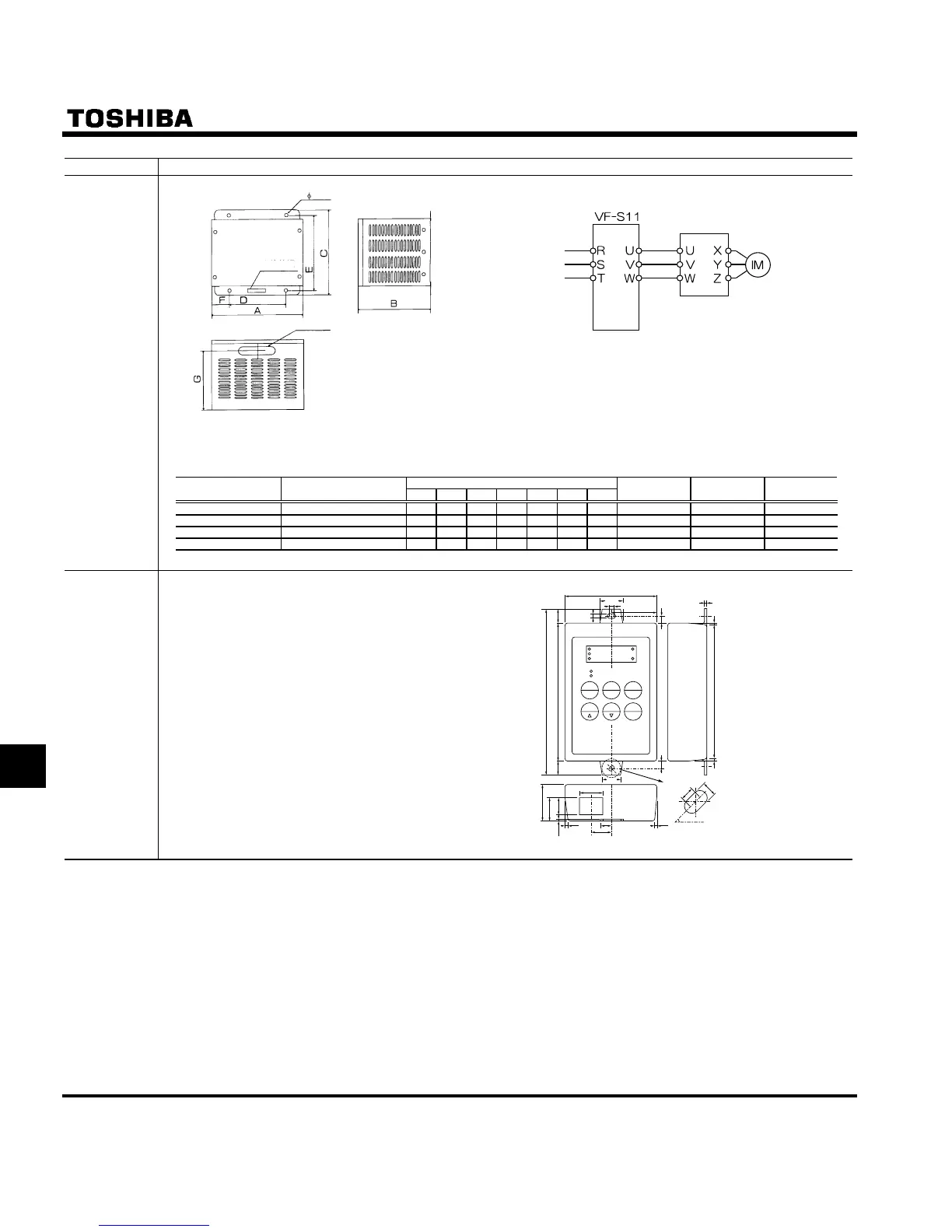

External dimensions
4- 12 holes
Name plate
(Installation
dimension)
Wire opening
(Installation dimension)
Devices External dimensions and connections
Braking
resistor
Parameter
writer
Parameter writer type: PWU001Z
Cable type (1m): CAB0011
(3m): CAB0013
(5m): CAB0015
Dimensions (mm)
Motor-end surge voltage
suppression filter l
Applicable motor (kW)
ABCDEFG
Terminal screw Grounding screw
Approx. weight
(kg)
MSF-4015Z 0.4､0.75､1.5 310 255 300 200 270 55 189 M4 M4 12
MSF-4037Z 2.2､3.7 310 255 300 200 270 55 209 M4 M4 20
MSF-4075Z 5.5､7.5 310 315 350 200 320 55 249 M5 M5 30
MSF-4150Z 11､15 330 350 400 200 370 65 289 M5 M5 40
Š Measures to protect motors against surge voltages
In a system in which a 400V-class general-purpose motor is operated with a voltage PMW inverter
that uses an ultra high-speed switching device (such as an IGBT), surge voltages may be produced
and deteriorate the insulation of motor coils, depending on the cable length, wiring method, cable
constant, and so on. Here are some examples of measures against surge voltages.
(1) Use motors with a high dielectric strength.
(2) To suppress surge voltages, install an AC reactor (an input reactor may be used instead. For the
application, contact your Toshiba dealer) or a surge suppression filter on the output side of the
inverter.
Connections
Power source
Motor-end surge voltage
suppression filter
60.0
30.0
2.0
2.8
3.2
holes
3.2 holes
11.0
112.0
90.0
5.0
5.0
1.0 1.088.0
11.0
27.1
19.6
13.52.0
2.0
16.0
45°
9.0
15.9
8.0
13.2
1.0 1.0
