E6581158
A-11
1

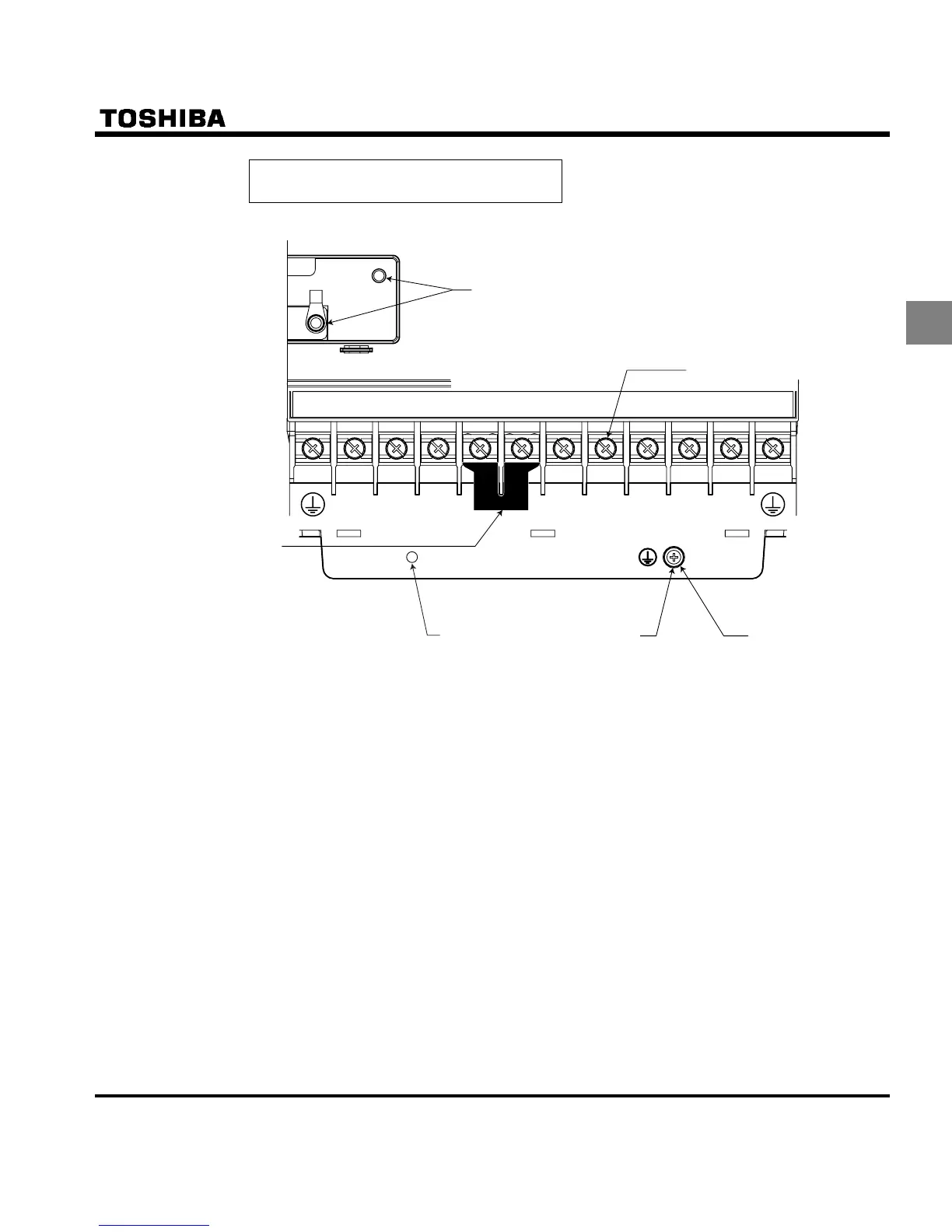

VFS11-2110, 2150PM
-4110, 4150PL
PC/− U/T1 V/T2 W/T3PB
PA/＋PO
R/L1 S/L2 T/L3
M6 screw
Grounding capacitor
disconnecting tap M4 screw
(4110, 4150 only)
Sorting-bar
Grounding terminal
(M5 screw)
Screw hole of EMC plate
Note 1
In case of the lug connector, cover the lug connector with insulated tube, or use the insulated lug con-
nector.
Note 1: EMC plate is attached as standard.
