Toshiba TOSVERT VF-S11 User Manual

E6581158
A-12
1
2) Grounding capacitor disconnecting switch and taps
Warning
Mandatory
The grounding capacitor disconnecting tap is provided with a protection cover. To avoid shock hazards,
always attach the cover after connecting or disconnecting the capacitor to or from the tap.
Every single-phase 200V/three-phase 400V model has a built-in high-attenuation noise filter, which is
grounded through a capacitor.
If you want to disconnect the capacitor from the grounding line to reduce the amount of leakage current,
you can do so easily using the switch or tap. Keep in mind, however, that disconnecting the capacitor
from the grounding line causes the inverter to become incompliant with the EMC directive. Also note
that the inverter must always be turned off before the capacitor is disconnected or reconnected.

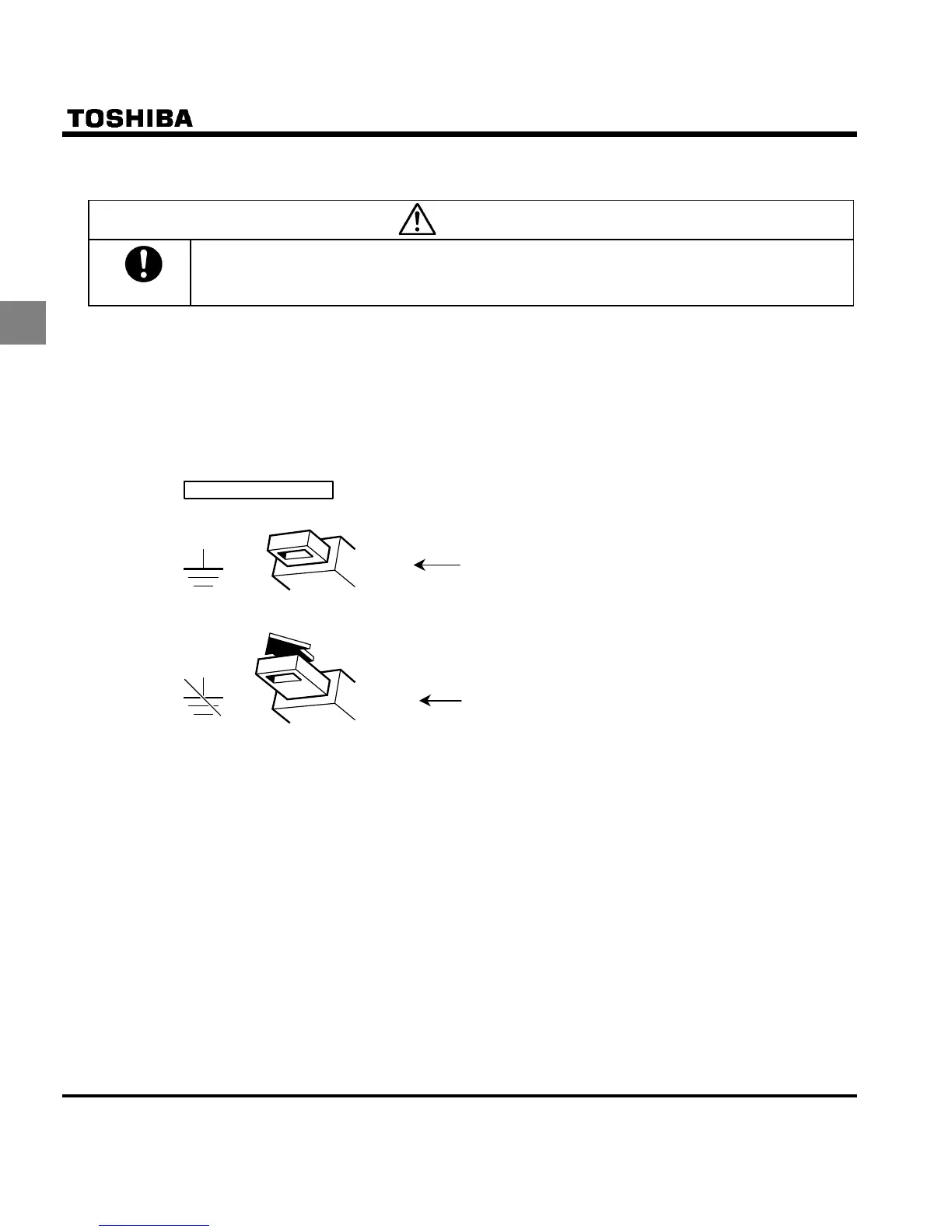

3.7kW or less : Switch
To connect the capacitor from the grounding, push this
switch. (Factory default position)
To disconnect the capacitor from the grounding, pull up this
switch.

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
