Toshiba TOSVERT VF-S11 User Manual

E6581158
A-15
1
1.3.3 How to open the front (terminal board) cover

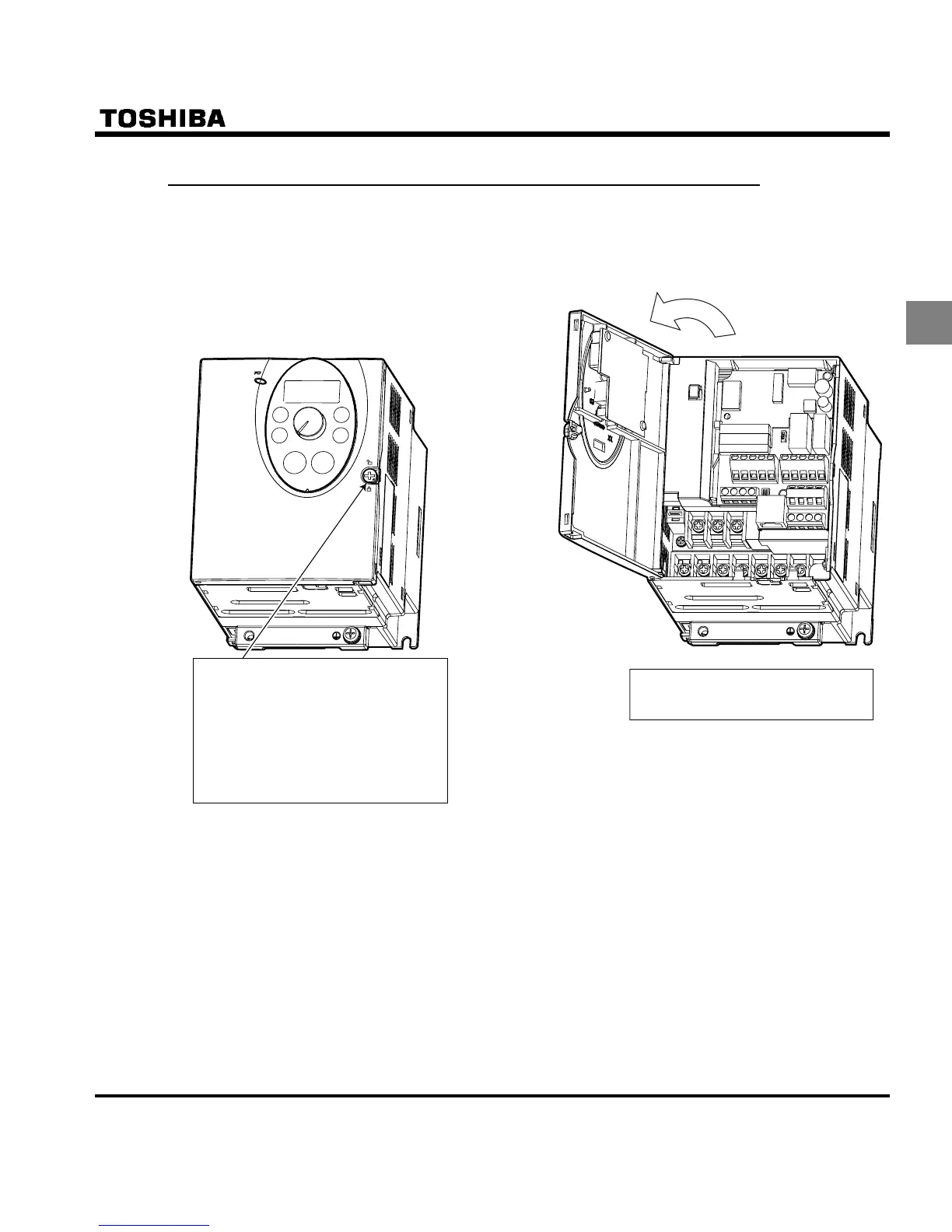

To wire the terminal board, remove the front lower cover in line with the steps given below.
Turn the locking screw on the right
side of the front panel 90˚
counterclockwise to align the dot on
the screw with the unlock position
mark (upper side). To avoid damage
to the screw, Do not apply excessive
force to turn the screw more than 90
degrees.
Pull the front panel toward you
and swing it open to the left.
(1)
(2)

Toshiba TOSVERT VF-S11 Specifications

General

Model	TOSVERT VF-S11
Category	Inverter
Output Frequency	0.1-400Hz
Frequency Range	0.1-400Hz
Control Method	V/f Control, Sensorless Vector Control
Power Rating	0.2kW to 15kW
Cooling Method	Forced air cooling
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	Modbus RTU
Input Voltage	200-240V, 380-480V
Braking Unit	Built-in (optional external braking resistor)
