5

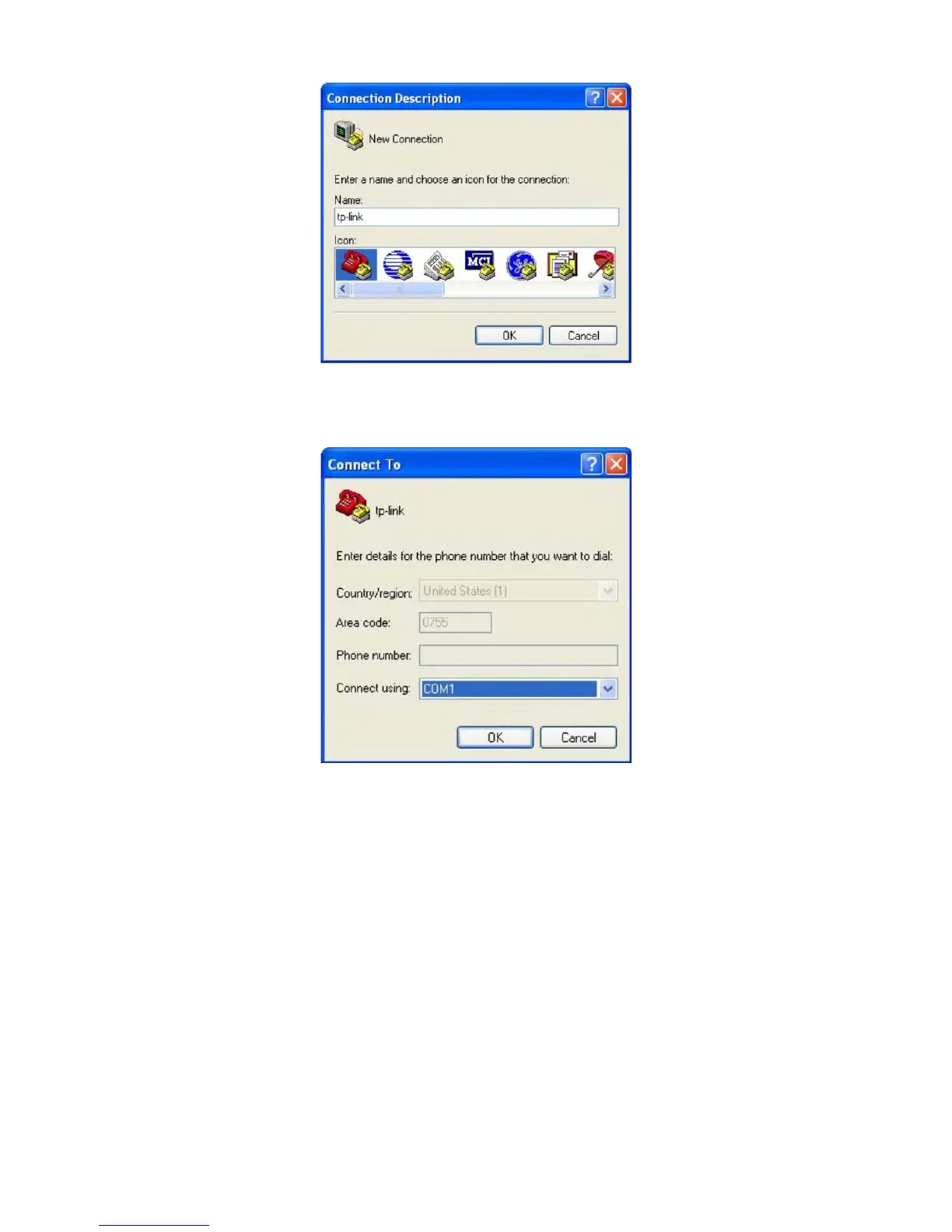

Figure 1-2 Connection Description
4.
Select the port to connect in
Figure 1-3
, and click
OK
.
Figure 1-3 Select the port to connect
5.
Configure the port selected in
the step above as the following Figure 1-4
shown.
Configure
Bits per second
as 38400,
Dat
a bit
s
as 8,
Parity
as None,
Sto
p b
i
ts
as 1,
Flow control
as None, and then click
OK
.
17
19
Table of Contents
Default Chapter
3
Table of Contents
3
Preface
14
Chapter 1 Using the CLI
17
1.1 Accessing the CLI
17
1.1.1 Logon by a Console Port
17
1.1.2 Logon by Telnet
19
1.2 CLI Command Modes
24
1.3 Security Levels
26
1.4 Conventions
26
1.4.1 Format Conventions
26
1.4.2 Special Characters
26
1.4.3 Parameter Format
27
Chapter 2 User Interface
28
Enable
28
Enable Password
28
Disable
29
Configure
29
Exit
29
End
30
Chapter 3 IEEE 802.1Q VLAN Commands
31
Vlan
31
Interface Vlan
31
Name
32
Switchport Mode
32
Switchport Access Vlan
33
Switchport Trunk Allowed Vlan
33
Switchport General Allowed Vlan
34
Switchport Pvid
35
Show Vlan Summary
35
Show Vlan Brief
36
Show Vlan
36
Chapter 4 Protocol VLAN Commands
37
Protocol-Vlan Template
37
Protocol-Vlan Vlan
37
Protocol-Vlan
38
Show Protocol-Vlan Template
39
Show Protocol-Vlan Vlan
39
Show Protocol-Vlan Interface
39
Chapter 5 VLAN-VPN Commands
41
Dot1Q-Tunnel
41
Dot1Q-Tunnel Tpid
41
Switchport Dot1Q-Tunnel Enable
42
Switchport Dot1Q-Tunnel Mode Uplink
42
Show Dot1Q-Tunnel
43
Show Dot1Q-Tunnel Interface
43
Show Dot1Q-Tunnel Uplink
44
Chapter 6 Voice VLAN Commands
45
Voice Vlan
45
Voice Vlan Aging Time
45
Voice Vlan Mac-Address
46
Switchport Voice Vlan Mode
47
Switchport Voice Vlan Security
47
Show Voice Vlan
48
Show Voice Vlan Oui
48
Show Voice Vlan Switchport
48
Chapter 7 Private VLAN Commands
50
Private-Vlan Primary
50
Private-Vlan Secondary
50
Private-Vlan Association
51
Switchport Private-Vlan
51
Switchport Private-Vlan Host-Association
52
Switchport Private-Vlan Mapping
53
Show Vlan Private-Vlan
53
Chapter 8 GVRP Commands
55
Gvrp(Global)
55
Gvrp(Interface)
55
Gvrp Registration
56
Gvrp Timer
56
Show Gvrp Global
57
Show Gvrp Interface
58
Chapter 9 Etherchannel Commands
59
Channel-Group
59
Port-Channel Load-Balance
60
Lacp System-Priority
60
Lacp Port-Priority
61
Show Etherchannel
61
Show Etherchannel Load-Balance
62
Show Lacp
62
Show Lacp Sys-ID
63
Chapter 10 User Manage Commands
64
User Name
64
User Access-Control Ip-Based
65
User Access-Control Mac-Based
65
User Access-Control Port-Based
66
User Max-Number
67
User Idle-Timeout
67
Line
68
Password
69
Login
69
Login Local
70
Show User Account-List
70
Show User Configuration
71
Chapter 11 Binding Table Commands
72
Ip Source Binding
72
Ip Dhcp Snooping
73
Ip Dhcp Snooping Global
74
Ip Dhcp Snooping Information Option
75
Ip Dhcp Snooping Information Strategy
75
Ip Dhcp Snooping Information Remote-ID
76
Ip Dhcp Snooping Information Circuit-ID
76
Ip Dhcp Snooping Trust
77
Ip Dhcp Snooping Mac-Verify
78
Ip Dhcp Snooping Limit Rate
78
Ip Dhcp Snooping Decline
79
Show Ip Source Binding
79
Show Ip Dhcp Snooping
80
Show Ip Dhcp Snooping Information
80
Show Ip Dhcp Snooping Interface Gigabitethernet
81
Chapter 12 ARP Inspection Commands
82
Ip Arp Inspection(Global)
82
Ip Arp Inspection Trust
82
Ip Arp Inspection(Interface)
83
Ip Arp Inspection Limit-Rate
84
Ip Arp Inspection Recover
84
Show Ip Arp Inspection
85
Show Ip Arp Inspection Interface
85
Show Ip Arp Inspection Statistics
86
Clear Ip Arp Inspection Statistics
86
Chapter 13 IP Verify Source Commands
87
Ip Verify Source
87
Show Ip Verify Source
87
Chapter 14 Dos Defend Command
89
Ip Dos-Prevent
89
Ip Dos-Prevent Type
89
Show Ip Dos-Prevent
90
Chapter 15 IEEE 802.1X Commands
91
Dot1X System-Auth-Control
91
Dot1X Auth-Method
91
Dot1X Guest-Vlan(Global)
92
Dot1X Quiet-Period
93
Dot1X Timeout
93
Dot1X Max-Reauth-Req
94
Dot1X
94
Dot1X Guest-Vlan(Interface)
95
Dot1X Port-Control
95
Dot1X Port-Method
96
Radius
97
Radius Server-Account
98
Show Dot1X Global
98
Show Dot1X Interface
99
Show Radius Accounting
99
Show Radius Authentication
100
Chapter 16 System Log Commands
101
Logging Buffer
101
Logging File Flash
102
Clear Logging
102
Logging Host Index
103
Show Logging Local-Config
104
Show Logging Loghost
104
Show Logging Buffer
104
Show Logging Flash
105
Chapter 17 SSH Commands
106
Ip Ssh Server
106
Ip Ssh Version
106
Ip Ssh Timeout
107
Ip Ssh Max-Client
107
Ip Ssh Download
108
Show Ip Ssh
108
Chapter 18 SSL Commands
110
Ip Http Secure-Server
110
Ip Http Secure-Server Download Certificate
110
Ip Http Secure-Server Download Key
111
Show Ip Http Secure-Server
112
Chapter 19 MAC Address Commands
113
Mac Address-Table Static
113
Mac Address-Table Aging-Time
114
Mac Address-Table Filtering
114
Mac Address-Table Max-Mac-Count
115
Show Mac Address-Table Address
116
Show Mac Address-Table Aging-Time
116
Show Mac Address-Table Max-Mac-Count Interface Gigabitethernet
117
Show Mac Address-Table Interface Gigabitethernet
117
Show Mac Address-Table Mac-Num
118
Show Mac Address-Table Mac
118
Show Mac Address-Table Vlan
119
Chapter 20 System Configuration Commands
120
System-Time Manual
120
System-Time Ntp
120
System-Time Dst Predefined
122
System-Time Dst Date
122
System-Time Dst Recurring
123
Hostname
124
Location
125
Contact-Info
125
Ip Management-Vlan
126
Ip Address
126
Ip Address-Alloc Dhcp
127
Ip Address-Alloc Bootp
127
Reset
128
Reboot
128
Copy Running-Config Startup-Config
129
Copy Startup-Config Tftp
129
Copy Tftp Startup-Config
130
Firmware Upgrade
130
Ping
132
Tracert
132
Loopback Interface
133
Show System-Time
133
Show System-Time Dst
134
Show System-Time Ntp
134
Show System-Info
135
Show Cable-Diagnostics Interface
135
Chapter 21 Ethernet Configuration Commands
136
Interface Gigabitethernet
136
Interface Range Gigabitethernet
136
Description
137
Shutdown
137
Flow-Control
138
Media-Type
138
Duplex
139
Speed
139
Storm-Control Broadcast
140
Storm-Control Multicast
141
Storm-Control Unicast
141
Storm-Control Rate
142
Bandwidth
142
Clear Counters
143
Show Interface Status
143
Show Interface Counters
144
Show Interface Description
144
Show Interface Flowcontrol
145
Show Interface Configuration
145
Show Storm-Control
146
Show Bandwidth
146
Chapter 22 Qos Commands
148
Qos
148
Qos Cos
148
Qos Dscp
149
Qos Queue Cos-Map
149
Qos Queue Dscp-Map
150
Qos Queue Mode
151
Show Qos Interface
152
Show Qos Cos-Map
153
Show Qos Dscp-Map
153
Show Qos Queue Mode
153
Show Qos Status
154
Chapter 23 Port Mirror Commands
155
Monitor Session Destination Interface
155
Monitor Session Source Interface
156
Show Monitor Session
157
Chapter 24 Port Isolation Commands
158
Port Isolation
158
Show Port Isolation Interface
158
Chapter 25 Loopback Detection Commands
160
Loopback-Detection(Global)
160
Loopback-Detection Interval
160
Loopback-Detection Recovery-Time
161
Loopback-Detection(Interface)
161
Loopback-Detection Config
162
Loopback-Detection Recover
162
Show Loopback-Detection Global
163
Show Loopback-Detection Interface
163
Command Mode
164
Chapter 26 ACL Commands
165
Time-Range
165
Absolute
165
Periodic
166
Holiday
167
Holiday(Global)
167
Access-List Create
168
Mac Access-List
168
Access-List Standard
169
Access-List Extended
170
Rule
171
Access-List Policy Name
172
Access-List Policy Action
173
Redirect Interface
173
S-Condition
174
S-Mirror
174
Access-List Bind(Interface)
175
Access-List Bind(Vlan)
175
Show Time-Range
176
Show Holiday
176
Show Access-List
176
Show Access-List Policy
177
Show Access-List Bind
177
Chapter 27 MSTP Commands
179
Spanning-Tree(Global)
179
Spanning-Tree(Interface)
179
Spanning-Tree Common-Config
180
Spanning-Tree Mode
181
Spanning-Tree Mst Configuration
181
Instance
182
Name
183
Revision
183
Spanning-Tree Mst Instance
184
Spanning-Tree Mst
184
Spanning-Tree Priority
185
Spanning-Tree Tc-Defend
186
Spanning-Tree Timer
186
Spanning-Tree Hold-Count
187
Spanning-Tree Max-Hops
188
Spanning-Tree Bpdufilter
188
Spanning-Tree Bpduguard
189
Spanning-Tree Guard Loop
189
Spanning-Tree Guard Root
190
Spanning-Tree Guard Tc
190
Spanning-Tree Mcheck
191
Show Spanning-Tree Active
191
Show Spanning-Tree Bridge
192
Show Spanning-Tree Interface
192
Show Spanning-Tree Interface-Security
193
Show Spanning-Tree Mst
194
Chapter 28 IGMP Commands
195
Ip Igmp Snooping(Global)
195
Ip Igmp Snooping(Interface)
195
Ip Igmp Snooping Immediate-Leave
196
Ip Igmp Snooping Drop-Unknown
196
Ip Igmp Snooping Vlan-Config
197
Ip Igmp Snooping Multi-Vlan-Config
198
Ip Igmp Snooping Filter Add-ID
199
Ip Igmp Snooping Filter(Global)
200
Ip Igmp Snooping Filter(Interface)
200
Ip Igmp Snooping Filter Maxgroup
201
Ip Igmp Snooping Filter Mode
201
Show Ip Igmp Snooping
202
Show Ip Igmp Snooping Interface
202
Show Ip Igmp Snooping Vlan
203
Show Ip Igmp Snooping Multi-Vlan
204
Show Ip Igmp Snooping Groups
204
Show Ip Igmp Snooping Filter
205
Chapter 29 SNMP Commands
206
Snmp-Server
206
Snmp-Server View
206
Snmp-Server Group
207
Snmp-Server User
208
Snmp-Server Community
210
Snmp-Server Host
210
Snmp-Server Engineid
212
Snmp-Server Traps Snmp
212
Snmp-Server Traps Link-Status
213
Snmp-Server Traps
214
Snmp-Server Traps Mac
215
Snmp-Server Traps Vlan
215
Rmon History
216
Rmon Event
217
Rmon Alarm
218
Show Snmp-Server
219
Show Snmp-Server View
220
Show Snmp-Server Group
220
Show Snmp-Server User
220
Show Snmp-Server Community
221
Show Snmp-Server Host
221
Show Snmp-Server Engineid
221
Show Rmon History
222
Show Rmon Event
222
Show Rmon Alarm
223
Chapter 30 LLDP Commands
224
Lldp
224
Lldp Hold-Multiplier
224
Lldp Timer
225
Lldp Receive
226
Lldp Transmit
226
Lldp Snmp-Trap
227
Lldp Tlv-Select
227
Show Lldp
228
Show Lldp Interface
228
Show Lldp Local-Information Interface
229
Show Lldp Neighbor-Information Interface
229
Show Lldp Traffic Interface
230
Chapter 31 Cluster Commands
231
Cluster Ndp
231
Cluster Ntdp
232
Cluster Explore
233
Cluster
233
Cluster Ip Pool
234
Cluster Commander
234
Cluster Manage
235
Cluster Member
235
Cluster Candidate
236
Cluster Individual
236
Show Cluster Ndp
237
Show Cluster Ntdp
237
Show Cluster Neighbour
238
Show Cluster
238
Show Cluster Member
239
Show Cluster Manage Role
239
Other manuals for TP-Link TL-SG5428
Installation Guide
28 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the TP-Link TL-SG5428 and is the answer not in the manual?
Ask a question
TP-Link TL-SG5428 Specifications
General
Brand
TP-Link
Model
TL-SG5428
Category
Switch
Language
English
Related product manuals
TP-Link TL-SG5412F
257 pages
TP-Link TL-SG105
16 pages
TP-Link TL-SG108
16 pages
TP-Link TL-SG108E
79 pages
TP-Link TL-SG116E
86 pages
TP-Link TL-SG105E
79 pages
TP-Link TL-SG1024
6 pages
TP-Link TL-SG3424
3 pages
TP-Link TL-SG2008
153 pages
TP-Link TL-SG116P
2 pages
TP-Link TL-SG108PE
86 pages
TP-Link TL-SG1005P
14 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
