7
TRENDnet User’s Guide
Multi-Gig Web Smart Switch Series
Green on
Solid
When the Green LED is on, the respective port is
connected on a Gigabit Speed
Off
10/100Mbps is connected or there is no link
established
Green
Blinking
Link/Act
When the LED is blinking green, the port is
transmitting or receiving data on the network at
Gigabit speed.
Green
Link/Act Solid
When the LED is solid green, there is a link
established
Off
When the LED is off, the respective port is
disconnected.
• PoE Mode: Gigabit Ethernet Port PoE+ LEDs (1-48)
Green on
When the Green LED is on, the connected device
is receiving power.
Green Solid
When the LED is solid Green, there is a power
error
Off
No Power device is connected

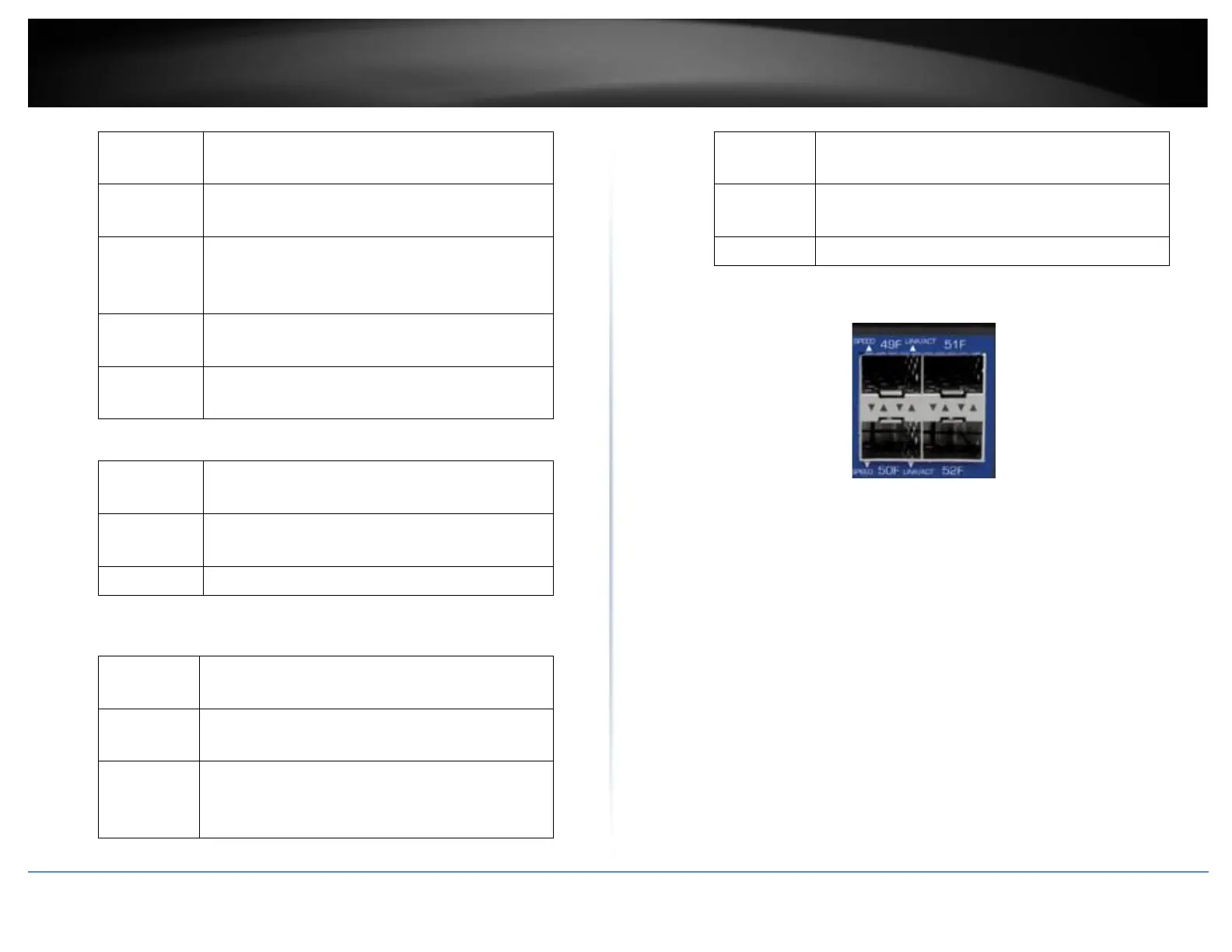

• SFP Slots (49-52)
Green
When the SFP LED is on, the link established using
the SFP module is operating at 10Gbps speed.
Amber
When the SFP LED is on, the link established using
the SFP module is operating at 1000Mbps speed.
Off
When the SFP LED is on, the link established using
the SFP module is operating at 10/100Mbps
speed or there is no link
Green
blinking
When the SFP LED is blinking, the port is
transmitting or receiving data
Green Solid
When the SFP LED is solid, there is a link
connected
Off
No link established.
