o Permit- This selection allows ingress packets that conform to the
specified ACL criteria.
o Deny- This selection drops ingress packets that conform to the
specified ACL criteria.

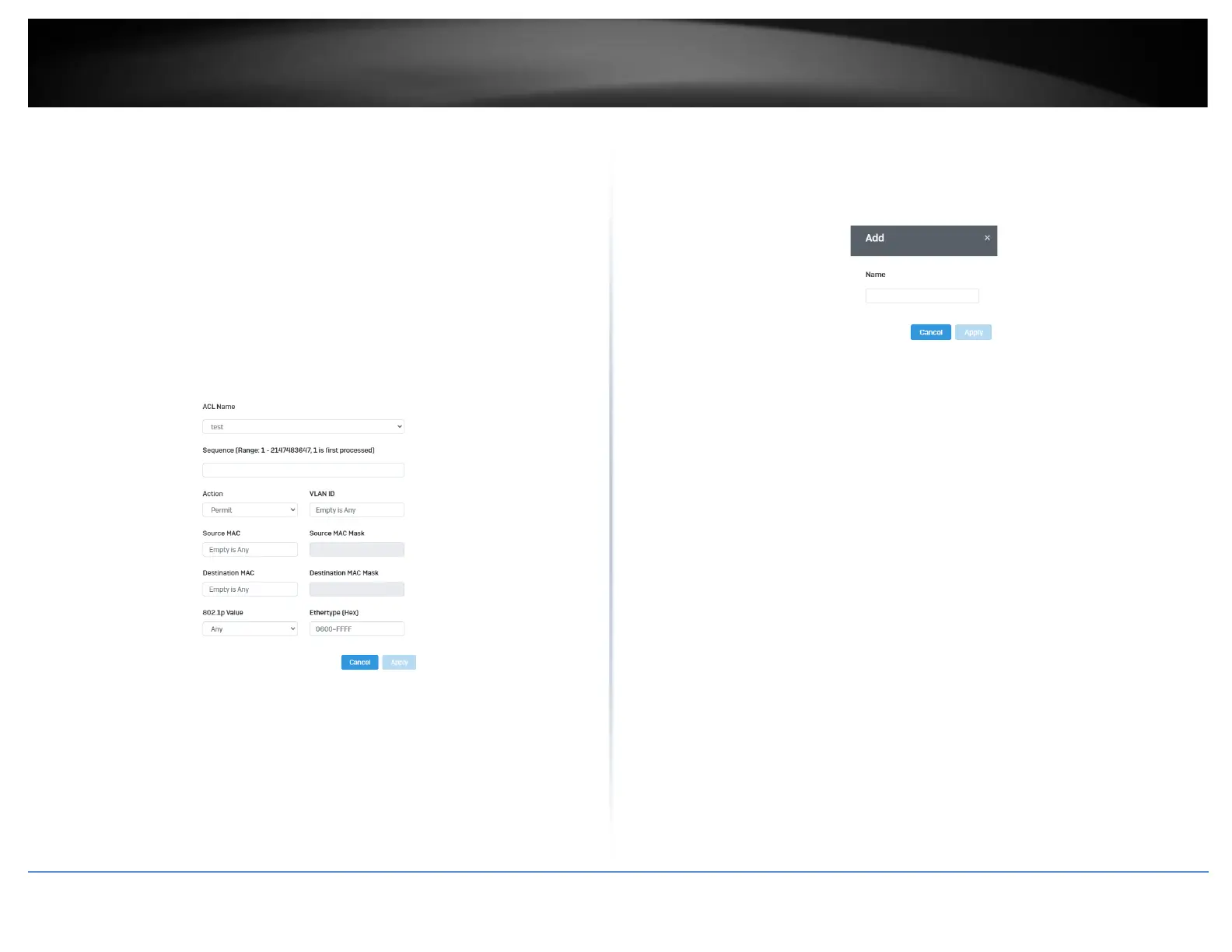

• VLAN ID: Enter the VLAN ID to associate with this MAC ACL.
• Source MAC: Input the source of the MAC address
• Destination MAC: Input the destination MAC address
• Source MAC Mask & Destination MAC Mask: Enter the mask of the Source
MAC and Destination MAC.
• 802.1p Value: Select the priority to assign with 7 being the highest priority and
0 being the lowest.
• Ethertype (Hex)- Specifies EtherType packet filtering
Access Control: Creating IPv4 ACL
Security > Access Control > IPv4 ACL
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, then click on Access Control, and click on IPv4 ACL.
3. Click the Add button to create a new ACL.
4. Input a name in the field and click Apply to save your new ACL name to the Flash.
Access Control: Configuring IPv4 ACL
Security > Access Control > IPv4 ACE
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, then click on Access Control, and click on MAC ACE.
3. Review the settings below and click Apply to save your settings.
• ACL Name: Select the ACL name you would like to configure.
• Sequence:
• Action: Defines the ACl action linked to the rule criteria.
o Permit- This selection allows ingress packets that conform to the
specified ACL criteria.
o Deny- This selection drops ingress packets that conform to the
specified ACL criteria.
• Type of Service: Enter a number in the Type of Service field within the range of
0 to 63. This field indicates the DSCP level of interest. This field is not
mandatory and you may elect to leave it blank.
