TEG-7124WS Overview
Package Contents
In addition to your switch, the package includes:
• Quick Installation Guide
• Power cord (1.8 m / 6 ft.)
• Rack mount kit
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.
TEG-7124WS Hardware Features

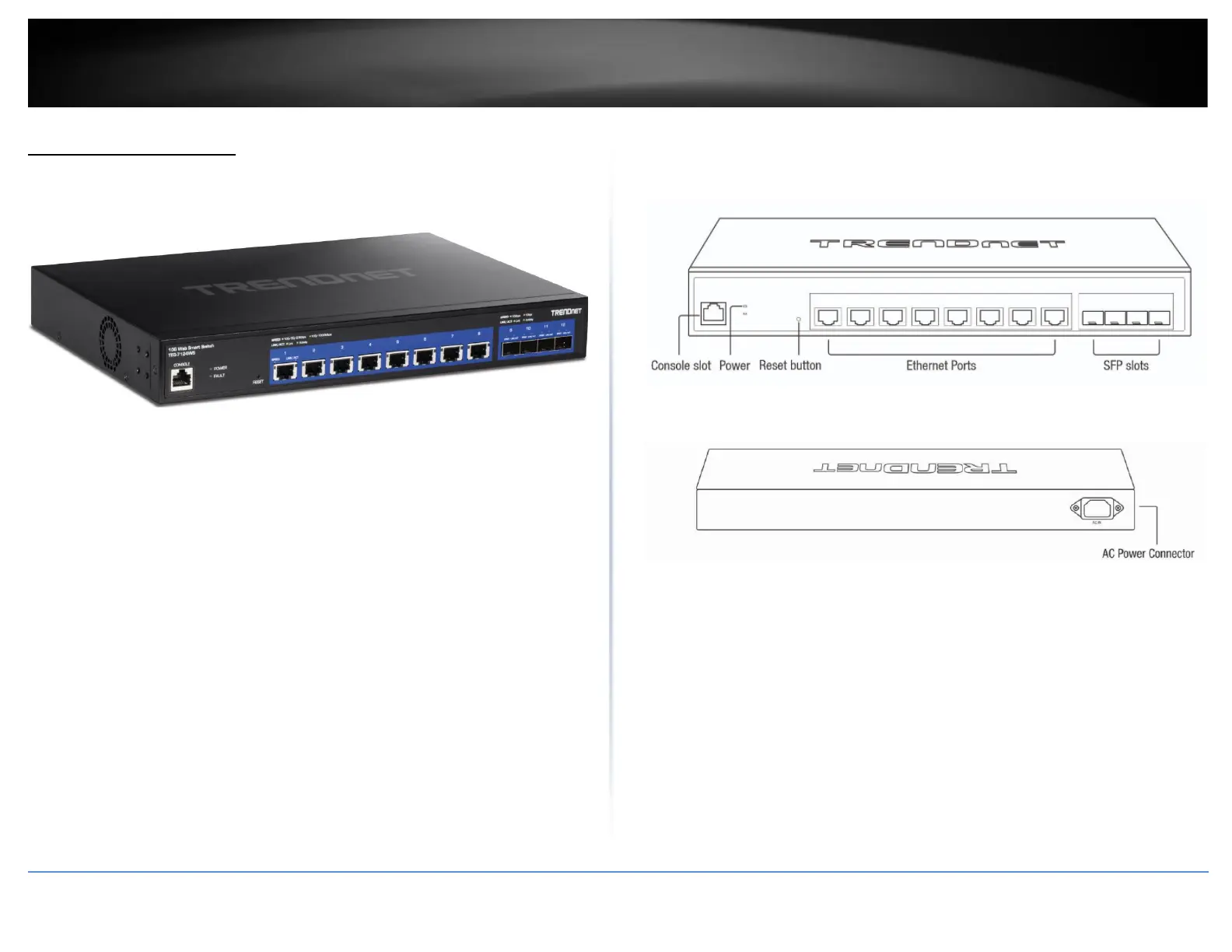

Front View
Rear View
• Power LED Indicator – LED indicators for power and fault
• Reset Button – Press and hold the button 1~3 seconds and release to
reboot the device. Pressing the button more than 5 seconds will reset
the switch to factory defaults. The ports LEDs will turn off to indicate
that the reset was initiated.
• Ethernet Ports (1-8) – Connect network devices at 10Gbps / 5Gbps
2.5Gbps / 1Gbps / 100Mbps speeds.
• SFP Slots (9-12) – Supports optional 10Gbps or 1Gbps mini-GBIC SFP
modules for uplink or downlink connections.
