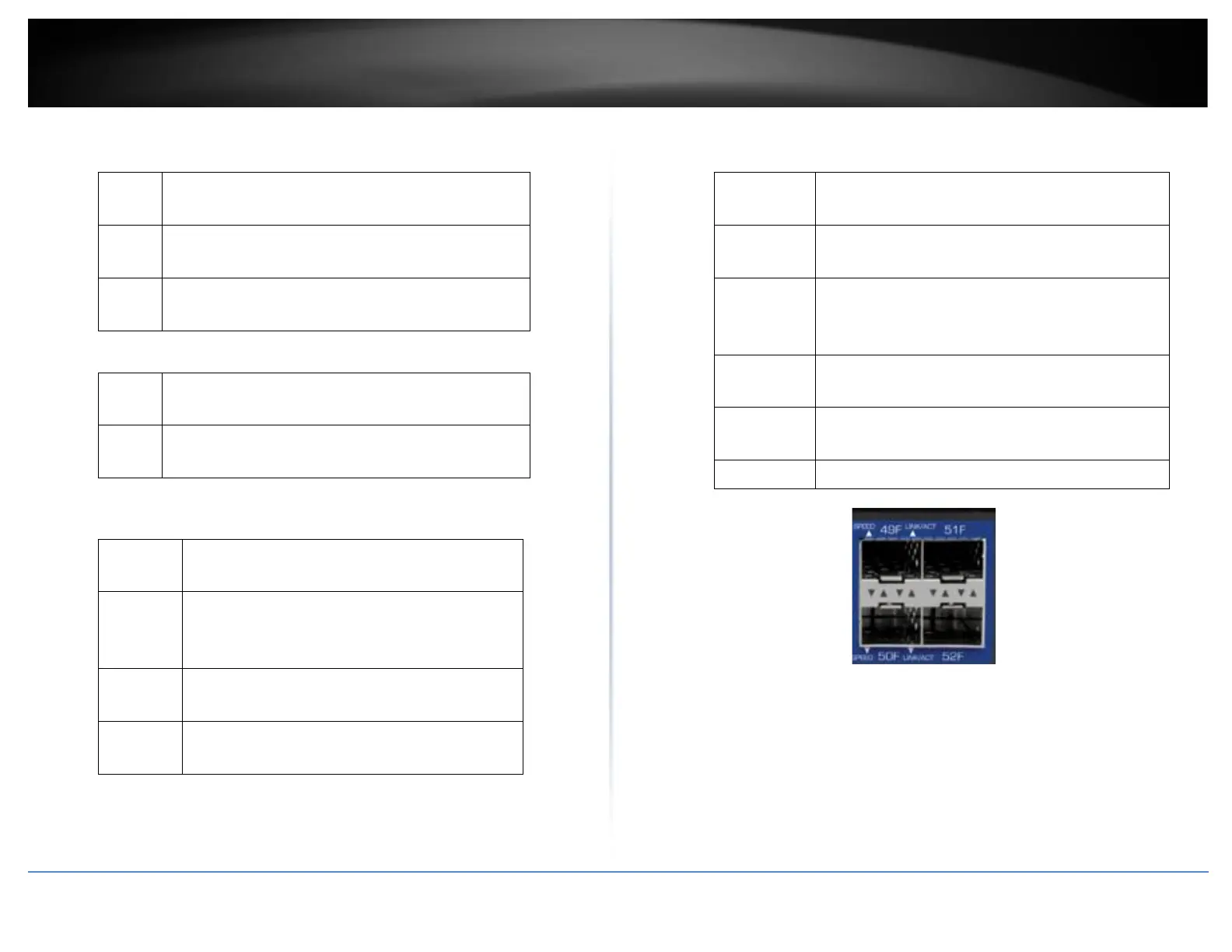

Diagnostic LEDs
• Power LED
On
When the Power LED is on, the device is receiving
power.
Off
When the Power LED is off, the power adapter is
not connected or the device is not receiving power.
Blinking
When the Power LED is blinking, the switch is
receiving power and is botting up
• Fault LED
Amber
On
When the Fault LED is on, there is an error with the
switch.
Off
When the Fault LED is off, there is no error with the
switch.
• Ethernet Port LEDs (1-48)
Green on
When the Green LED is on, the respective port
is connected at 1000Mbps speed
Off
When the LED is off, the respective port is
either connected at 10/100Mbps or there is No
Link
Green
Blinking
When the LED is blinking green, the port is
transmitting or receiving data on the network.
Green
Solid
When the LED is solid green, there is a
connection between the device and the switch
• SFP Slots (49-52)
Green
When the SFP LED is on, the link established using
the SFP module is operating at 10Gbps speed.
Amber
When the SFP LED is on, the link established using
the SFP module is operating at 1000Mbps speed.
Off
When the SFP LED is on, the link established using
the SFP module is operating at 10/100Mbps
speed or there is no link
Green
blinking
When the SFP LED is blinking, the port is
transmitting or receiving data
Green Solid
When the SFP LED is solid, there is a link
connected
Off
No link established.
