TRENDnet User’s Guide
Multi-Gig Web Smart Switch Series

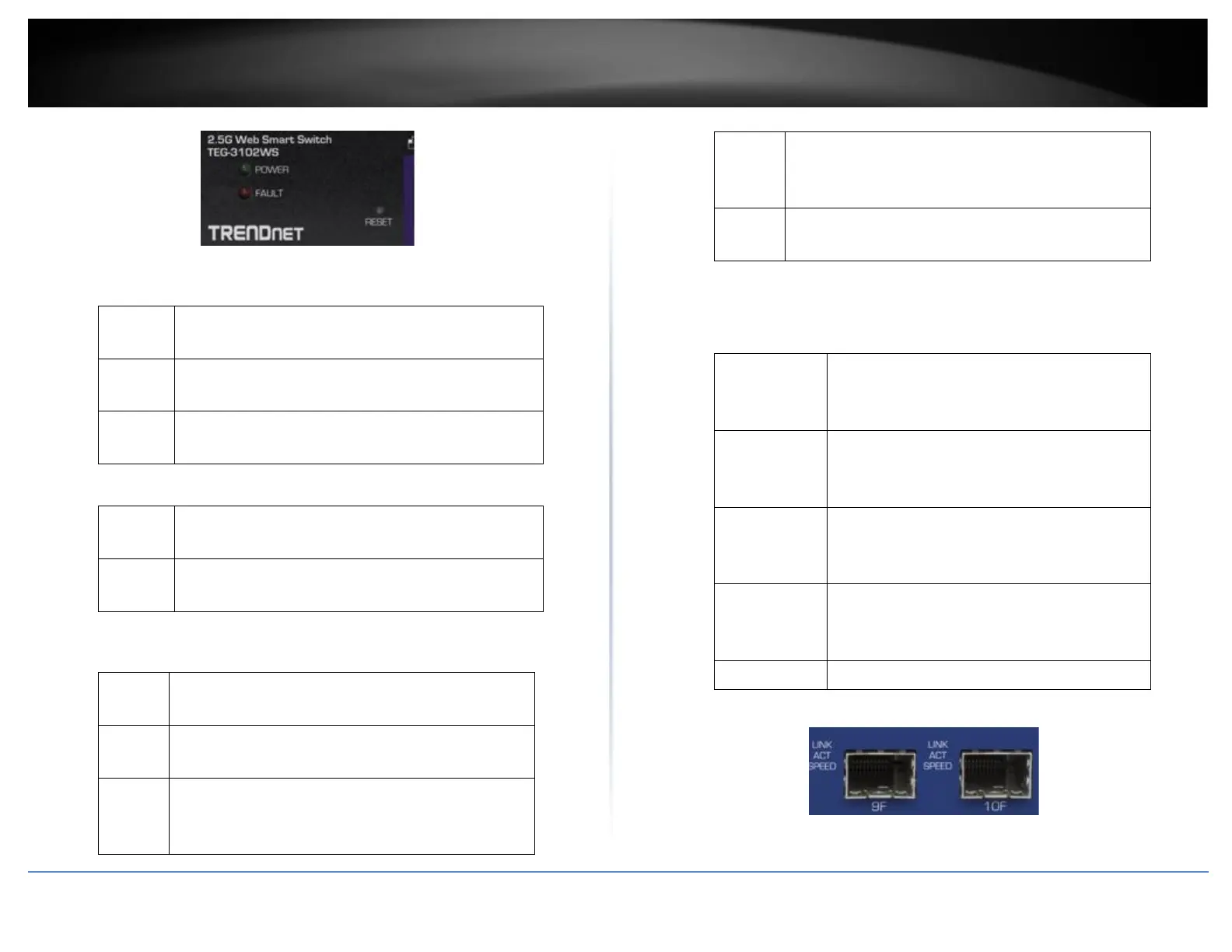

Diagnostic LEDs
• Power LED
On
:
When the Power LED is on, the device is receiving
power.
Off
:
When the Power LED is off, the power adapter is
not connected or the device is not receiving power.
Blinking
:
When the Power LED is blinking, the switch is
receiving power and is botting up
• Fault LED
Amber
On
:
When the Fault LED is on, there is an error with the
switch.
Off
:
When the Fault LED is off, there is no error with the
switch.
• Ethernet Port LEDs (1-8)
Green
on
:
When the Green LED is on, the respective port is
connected to a 2.5Gbps Ethernet network.
Amber
on
:
When the Green LED lights on, the respective port
is connected to a 100/1000Mbps Ethernet network.
Green
Blinking
:
When the LED is blinking green, the port is
transmitting or receiving data on the network at
2.5Gbps speed.
Amber
Blinking
:
When the LED is blinking amber, the port is
transmitting or receiving data on the network at
100/1000Mbps speed.
Off
When the LED is off, the respective port is
disconnected.
• SFP Slots (9-10)
Link/Activity
Green on
:
When the SFP LED is on, the link established
using the SFP module is operating at 10Gbps
speed.
Green
blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
10Gbps link established.
Amber on
:
When the SFP LED is on, the link established
using the SFP module is operating at
1000Mbps speed.
Amber
blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
1000Mbps link established.
Off
:
No link established.
