Driver installation and features
58 T2-C User Guide

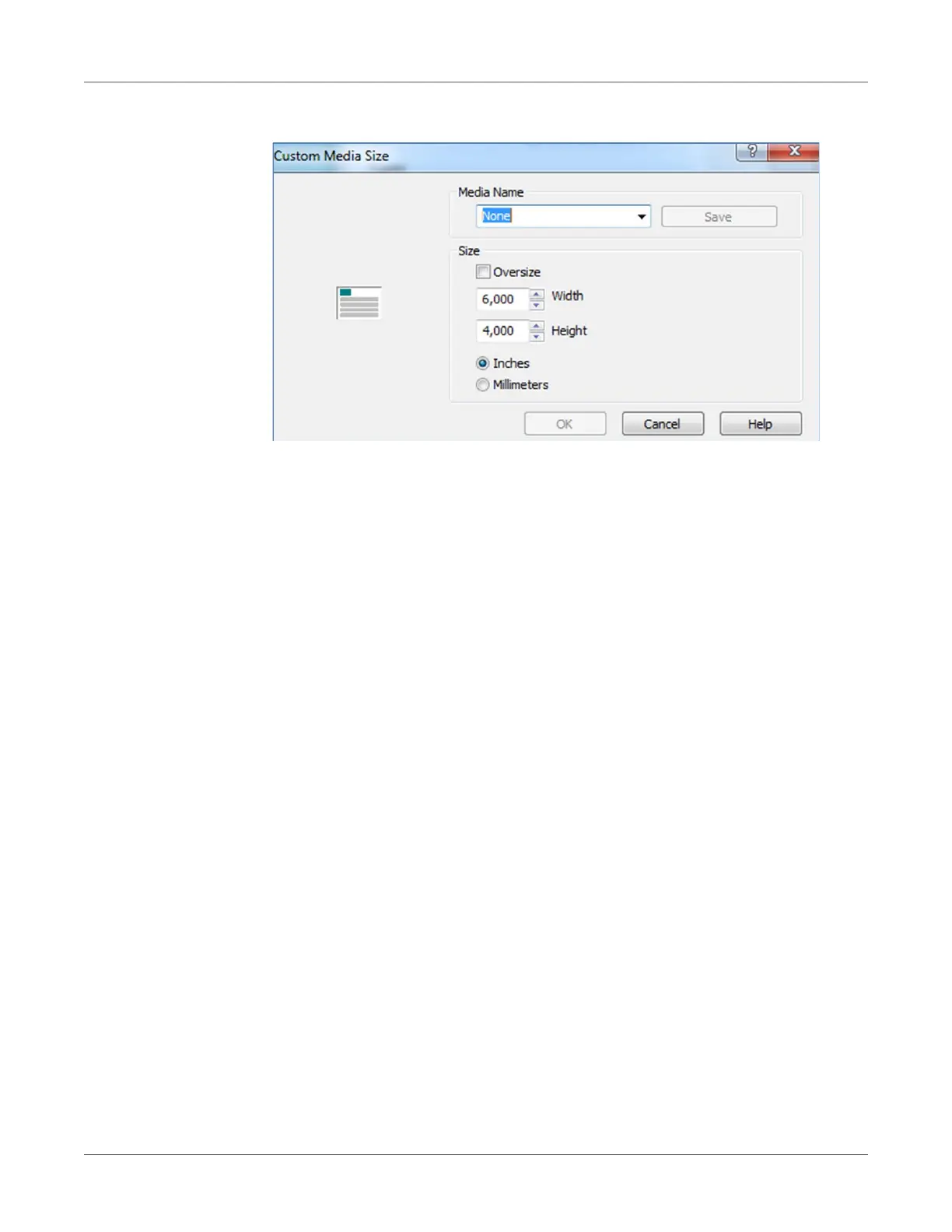

Size: Predefined size from the list or custom size.
Media Name: Save custom size into the profile list.
Oversize: Full bleed printing = oversizing the image by 1mm over the edges when
printed. Aspect ratio is locked.
Overspray: Overspray printed image over the label size by 0.5mm. Does not preserve
aspect ratio.
Color Selection
Color mode (uses CMYK ink to mix colors on labels)
Composite Black (uses CMYK to mix black color on labels)
Black Only (uses only black ink for printing black color on labels)
Print speed
6 IPS (resolution 1600 x 1600 dpi)
12 IPS (resolution 1600 x 800 dpi)
Page Management
Stitching: Stitching images together make one continuous image. This mode is for
exceeding the maximum printable label length which is 762mm.
The maximum printable label length is 762mm. If 762mm label height is not enough,
then stitching is the workaround option. In practice, create a multi-page PDF where the
long image is cut into pieces. This way if stitching option is on, the TrojanTwo press will
stick all images from the multi-page PDF together and print it out as one continuous
image without gaps between pages.
Note: The PAUSE function only works at the mid job maintenance distance in stitch
mode. Mid job maintenance distance is set in the TrojanTwo tab > Media Settings >
Advanced menu. The reason for this is that a stitch job practically counts as 1 page for
the firmware no matter how many pages are being stitched.
