User Interface (UI)
74
T2-C User Guide

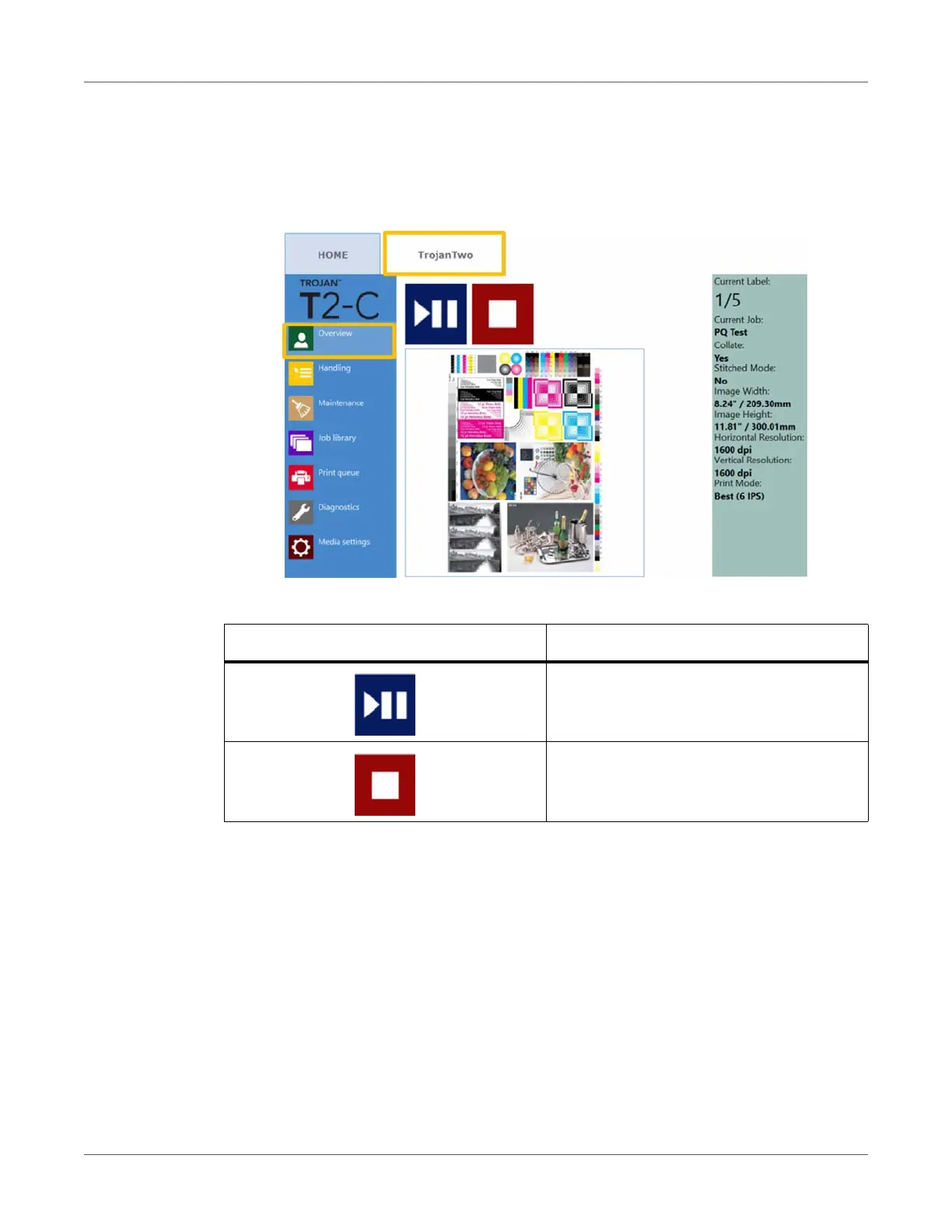

T2-C press handling menus (TrojanTwo tab)
Overview menu
Overview menu when the T2-C press is printing.
•
Information from currently printe
d job, including:
–
Preview image of the labe
l which is being printed
at the moment
–
Label counte
r
–
Name of print job in Job Libr
ary
Icon
Description
Pause/Resume print job
Stop/Cancel print
job
73
75
Table of Contents
