User Interface (UI)
84 T2-C User Guide
• Temperature: Adjusting ink temperature to room temperature for the best print quality. The
average temperature of the room where the T2-C press is set up is displayed in the
temperature field based on the feedback of the built in temperature sensor. Heating the ink
right before printing will be adjusted to the environmental temperature. This field is filled
automatically based on the temperature sensor but can be overwritten by the user.
Note: User defined temperature value remains valid only until the next reboot.
• Color Bars: Standard color bars for checking printhead nozzles, mixes CMYK colors (A4
size).
• Ink Channels: Printing a color bar with each ink channel, no ink mixing (CMYK - A4 size).
Important: The ink channels test plot is the best diagnostic tool to verify the current state
of the printhead nozzles. If there is any blocked/dehydrated nozzle or other nozzle defect,
then this can be clearly seen on this diagnostic page.

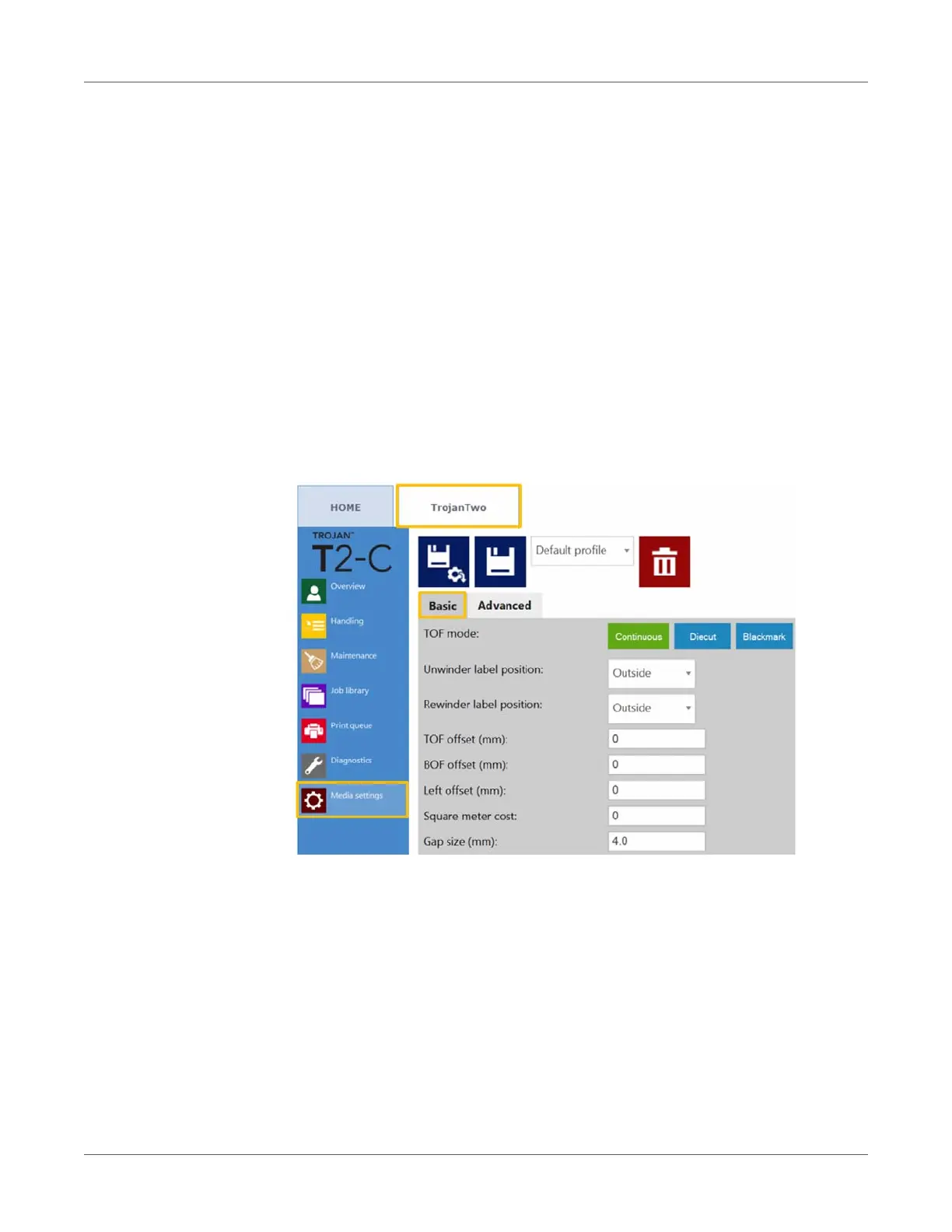

Media Settings menu
Media Settings Basic
• TOF mode: TOF (Top Of Form) has to be set according to the applied label media type:
Continuous (continuous roll, no gaps between labels).
Diecut (gaps between labels, the labels are pre die-cut on the liner).
Blackmark (pre-printed blackmarks on the media, blackmarks can be outside or inside
on the roll).
• Unwinder label position: Inside/Outside. Unwinder is rotating according to printing
inside or outside of the label roll.
• Rewinder label position: Inside/Outside. Rewinder is rotating according to printing
inside or outside of the label roll.
