User Interface (UI)
T2-C User
Guide
75
•
Shows Print Queue state and Stop/Clear Err
or button when machine is in idle mode.

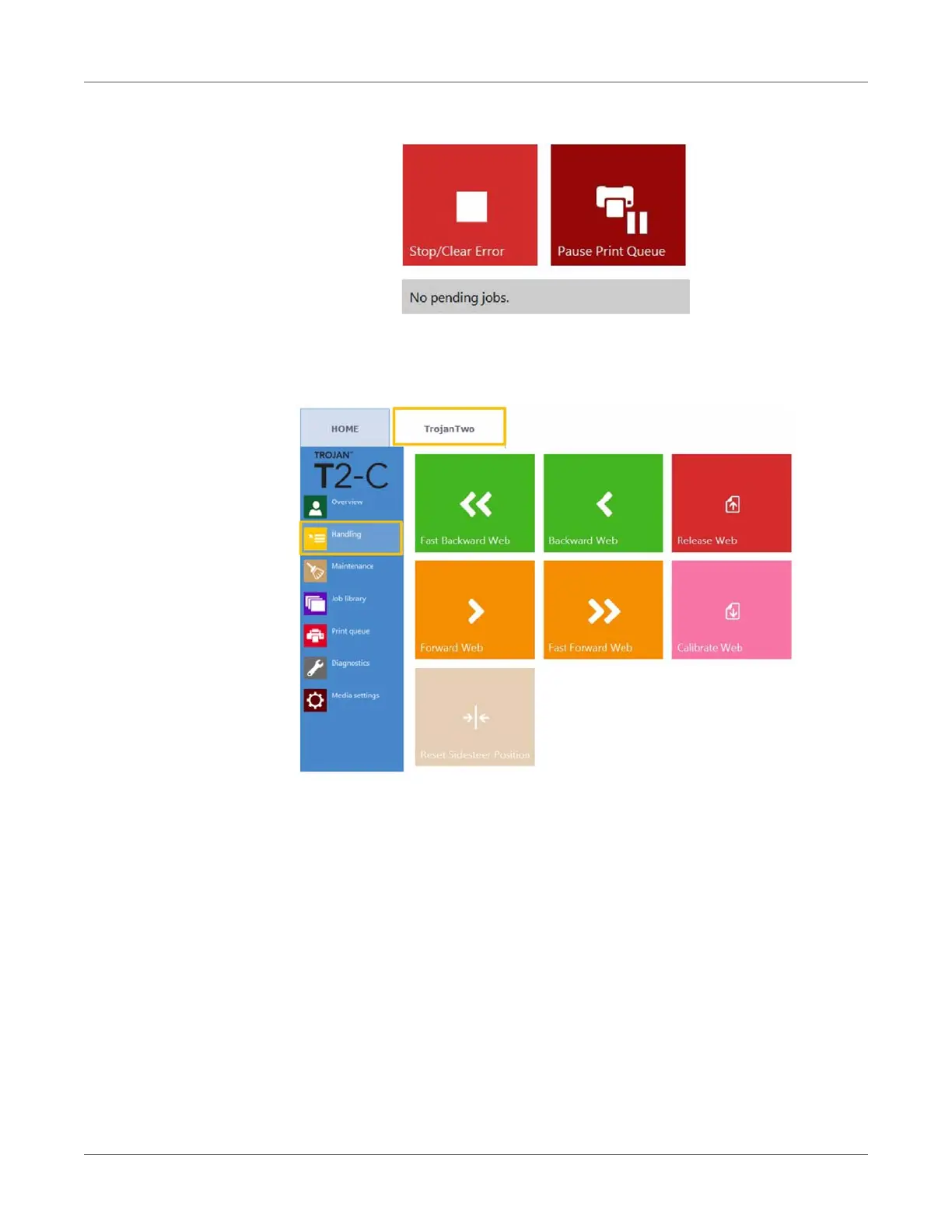

Handling menu
The Handling menu includes all the web path re
lated actions.
Backward/Forwar
d Web Button
Moves the label web
backward/forwar
d. The movemen
t speed is defined
in the
HOME >
Settings > Printing Preferen
ces
menu.
See “Settings menu” on page 63.
