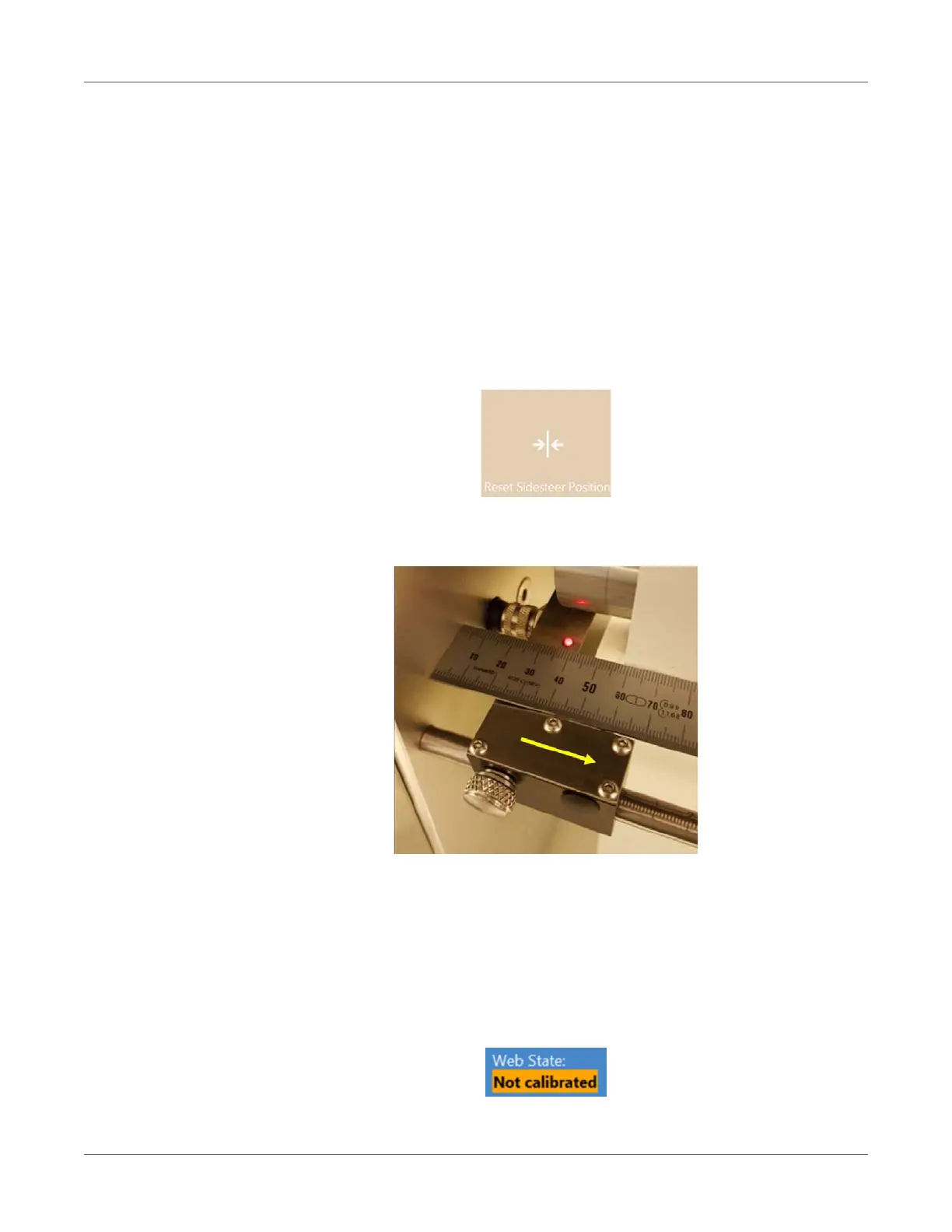

Adjusting the label edge sensor
• The label edge sensor is for adjusting the left edge of the media physically throughout the
whole web path for the best rollup performance.
• Adjusting the sensor can be done manually by physically moving the sensor. Moving the
sensor has an immediate effect on the label roll position.
• As a starting position for the sensor, it is advised to align the sensor to the 0 position
on the metric scale at the axis where the sensor can be moved.
• Further adjustments can be done even during printing as if needed.
1 Press the Reset Sidesteer Position button in the TrojanTwo tab > Handling menu after
a new media roll has been threaded.
2 Adjust the label edge sensor's bracket to be exactly at the 0 position on the metric scale at
the axis where the sensor can be moved.
Note: When moving the sensor, the manual knob that locks the sensor's position has to
be released.
Calibrate tension for the label web
It is assumed that the label rolls are placed correctly and the machine is threaded with media.
1 Web state is currently: 'Not calibrated':
