Trojan T2-C User Manual

Power on
T2-C User Guide 25

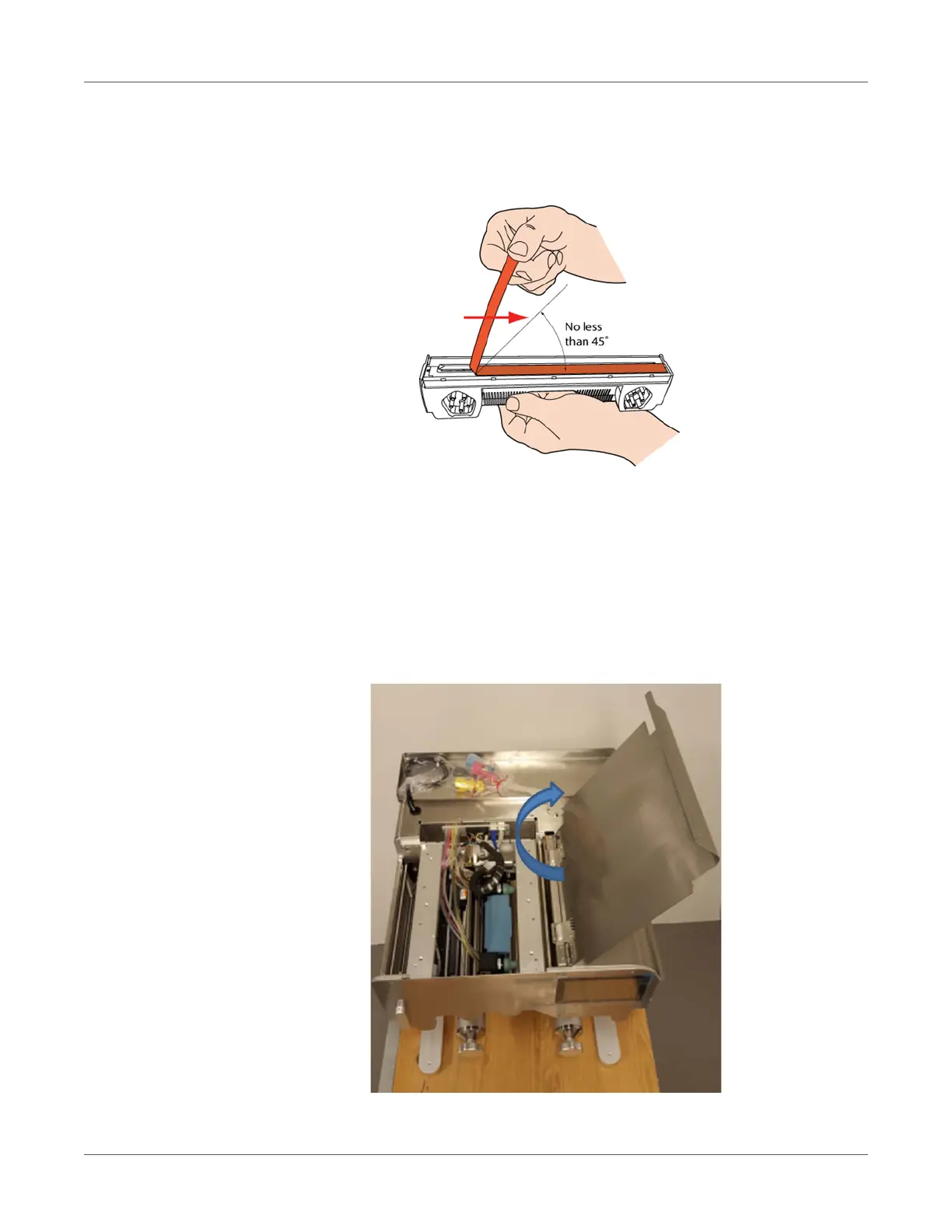

6 Remove the protective strip from the printhead nozzles. While holding the printhead
cartridge by the handle with one hand, grasp the pull tab with the other hand and slowly and
carefully peel back the plastic strip covering the printhead nozzles. Maintain an angle of no
less than 45° with the printhead surface when pulling on the strip.
Note: Dispose of the removed strip immediately and do not allow the removed strip to
contact the electrical contacts or the printhead nozzles.
Installing the printhead
Important: The printhead can only be filled with ink when the reservoir ink tanks are filled. For
the first time installation, the printhead can only be primed when filling the reservoir tanks
procedure is completed.
1 Open the top lid on the T2-C press to gain access to the print engine.

Trojan T2-C Specifications

General

Brand	Trojan
Model	T2-C
Category	Label Maker
Language	English
