T2-C User Guide 61
11
User Interface (UI)

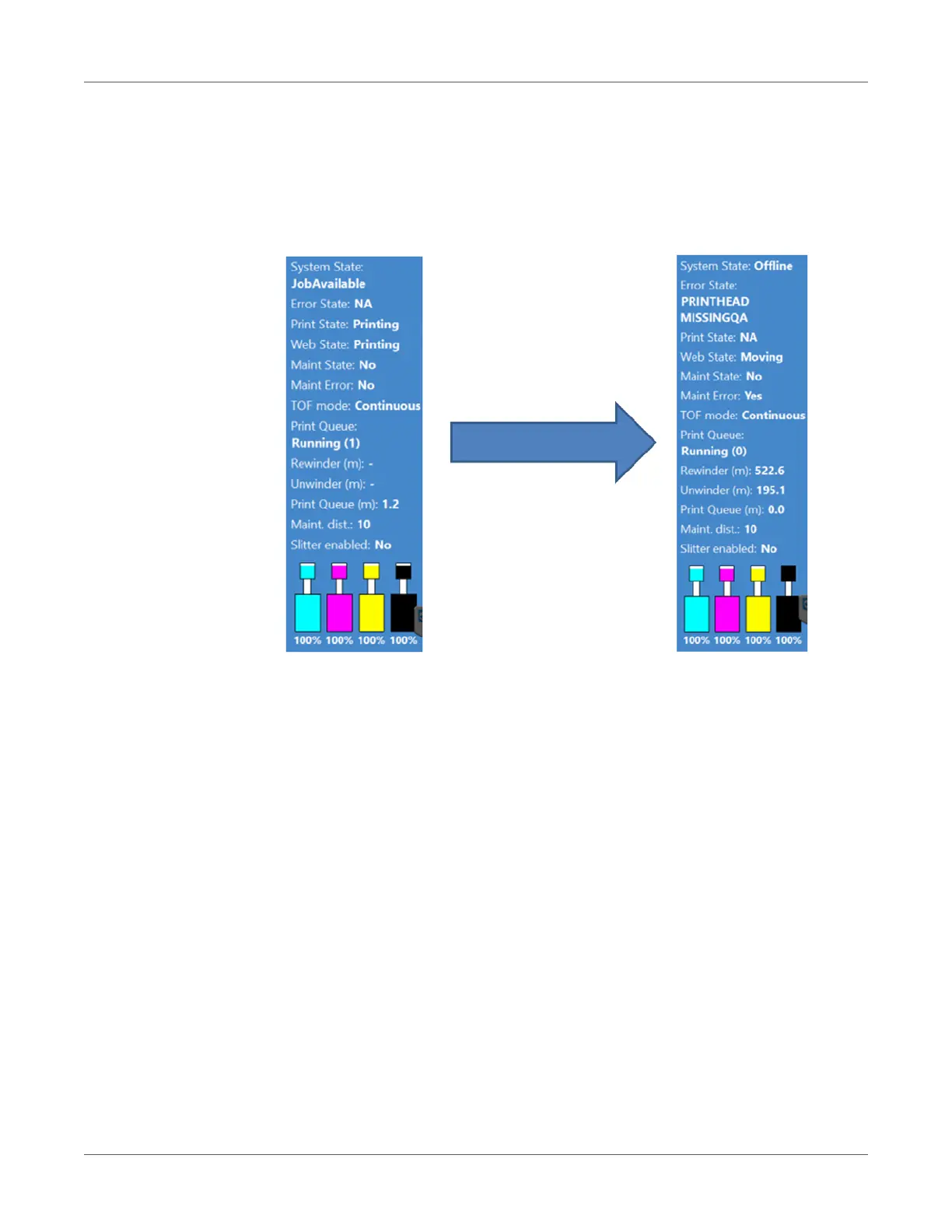

Right side status bar
The status bar provides real time information about the T2-C current status. The main points
are:
• System State: The machine is only ready to print if the system state is 'ONLINE'. Other
system statuses can be 'JobAvailable' (when print job(s) are loaded to the print queue),
'Maintenance Busy' (when the printer is doing maintenance) or 'Offline' (if no printhead is
installed or if there is an error state).
• Error state: Displays a certain error message if there is an error state. See
“Troubleshooting” on page 115. NA = Not Available if there is no error state.
• Print state: 'NA' if the T2-C is in the idle state, 'Printing' if the T2-C is printing and 'Pause'
if current print job is paused.
• Web state: Displays the current status of the web path system. It is 'Ready' when tension
is calibrated and web path system is ready to print, 'Not Calibrated' when tension is not
calibrated, 'Moving' when the label web is moving, 'Printing' when machine is printing and
'Paused' if the current print job is being paused or mid job maintenance is occurring during
printing.
• Maint state: 'Yes' when there is maintenance occurring or 'No' when there is no ongoing
maintenance.
• Maint error: 'Yes' when there is an error with the maintenance or 'No' if there is no problem.
