User Interface (UI)
88
T2-C User Guide
•

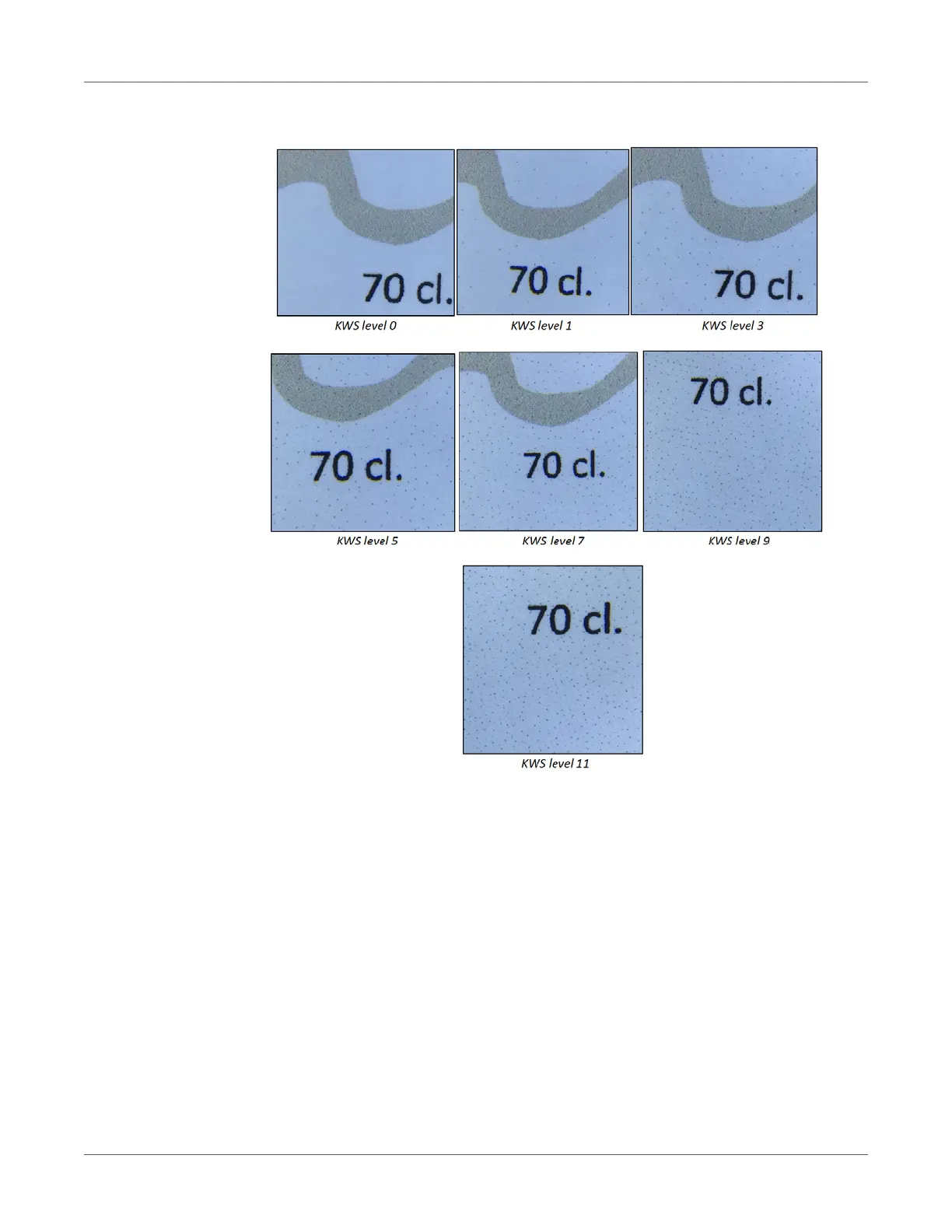

KWS levels
Warning:
The degree of KWS has an effect on pr
inthead life. The higher the KWS
level is set the more protection the printhe
ad gets against dehydratio
n of nozzles.
ALTHOUGH switching KWS off (0) does not resu
lt in loos
ing warrant
y for the printhea
d,
it is still advised to enable KWS and set it
to a level where th
e small dots are still
acceptable in te
rm
s of print quality.
87
89
Table of Contents
Default Chapter
7
Table of Contents
7
Chapter 1: Introduction
11
General Information
11
Introduction
11
Overview and Application
12
Chapter 2 Setting up the T2-C Press
17
Cabling (Network and Power Supply)
18
Physical Setup
17
Chapter 3: Power on
19
Power on
19
Power on Process
19
Visible Safety Check
19
Installing Ink Tanks and the Printhead
20
Installing the Ink Tanks
20
Unpacking the Printhead
23
Installing the Printhead
25
Chapter 4 Loading the Label Material
29
Unwinder and Rewinder Roll Direction
29
Rolling Direction Unwinder - Ink Jet Coating on the Inside or Outside
29
Rolling Direction Rewinder
30
Threading the Label Material from Scratch
31
Adjusting the Label Edge Sensor
35
Calibrate Tension for the Label Web
35
Splicing and Changing the Label Roll
37
Chapter 5 Select and Queue Print / Start Print Job
39
Chapter 6 Pause, Resume, or Stop a Print Job
41
Chapter 7 Moving the Label Web
43
Chapter 8: Printing Modes
45
Continuous Printing Mode
45
Printing Modes
45
Die-Cut Printing Mode
46
Calibrating the Label Gap Sensor
46
Blackmark Printing Mode
48
Calibrating the Label Gap/Blackmark Sensor
48
Gap Size and Speeds
50
Chapter 9 Shutting down the T2-C Press
51
Chapter 10: Driver Installation and Features
53
Driver Installation
53
Driver Installation and Features
53
Driver Features and Functions
56
General Driver Settings
57
Integrating Additional Color Profiles
59
Chapter 11: User Interface (UI)
61
Right Side Status Bar
61
User Interface (UI)
61
General Settings (HOME Tab)
62
Overview Menu
62
Settings Menu
63
Statistics Menu
70
Shutdown
72
Exporting Statistics Data to a CSV File / Viewing Statistics from a Browser
72
T2-C Press Handling Menus (Trojantwo Tab)
74
Overview Menu
74
Handling Menu
75
Maintenance Menu
77
Job Library Menu
79
Print Queue Menu
82
Diagnostics Menu
83
Media Settings Menu
84
Chapter 12: Updating Software and Firmware
89
Updating Software and Firmware
89
Updating Via the Online Updater
89
Updating Via the Offline Updater
90
Purpose
93
Usage
93
Using the Built in Slitter for the T2-C Press
93
Chapter 13: Using the Built in Slitter for the T2-C Press
94
Replacing the Slitter Blades
95
Chapter 14: Maintenance
97
Cleaning Other Rollers
99
Emptying the Waste Ink Bottle
99
Maintenance
97
Regular Cleaning/Checking Tasks
97
Cleaning the NIP Roller
97
Replacing the Wiper Roller
101
Manual Printhead Wiping
105
Clean or Replace Aerosol Filter
108
Preparing the T2-C Press for Transportation
109
Removing the Printhead
109
Chapter 15: Preparing the T2-C Press for Transportation
110
Storing Used or Opened Printheads
110
Removing the Ink from the Reservoir Ink Tanks
111
Removing the Ink from the Ink Filters
112
Empty and Clean the Waste Ink Bottle
113
Removing the Ink Tanks
113
Chapter 16: Troubleshooting
115
Error States
115
Troubleshooting
115
Error Messages on Screen
119
Appendix A: Spare Parts
121
Consumables
121
Print Engine
121
Circuit Boards
122
Tubes, Cables, and Other Parts
123
Index
