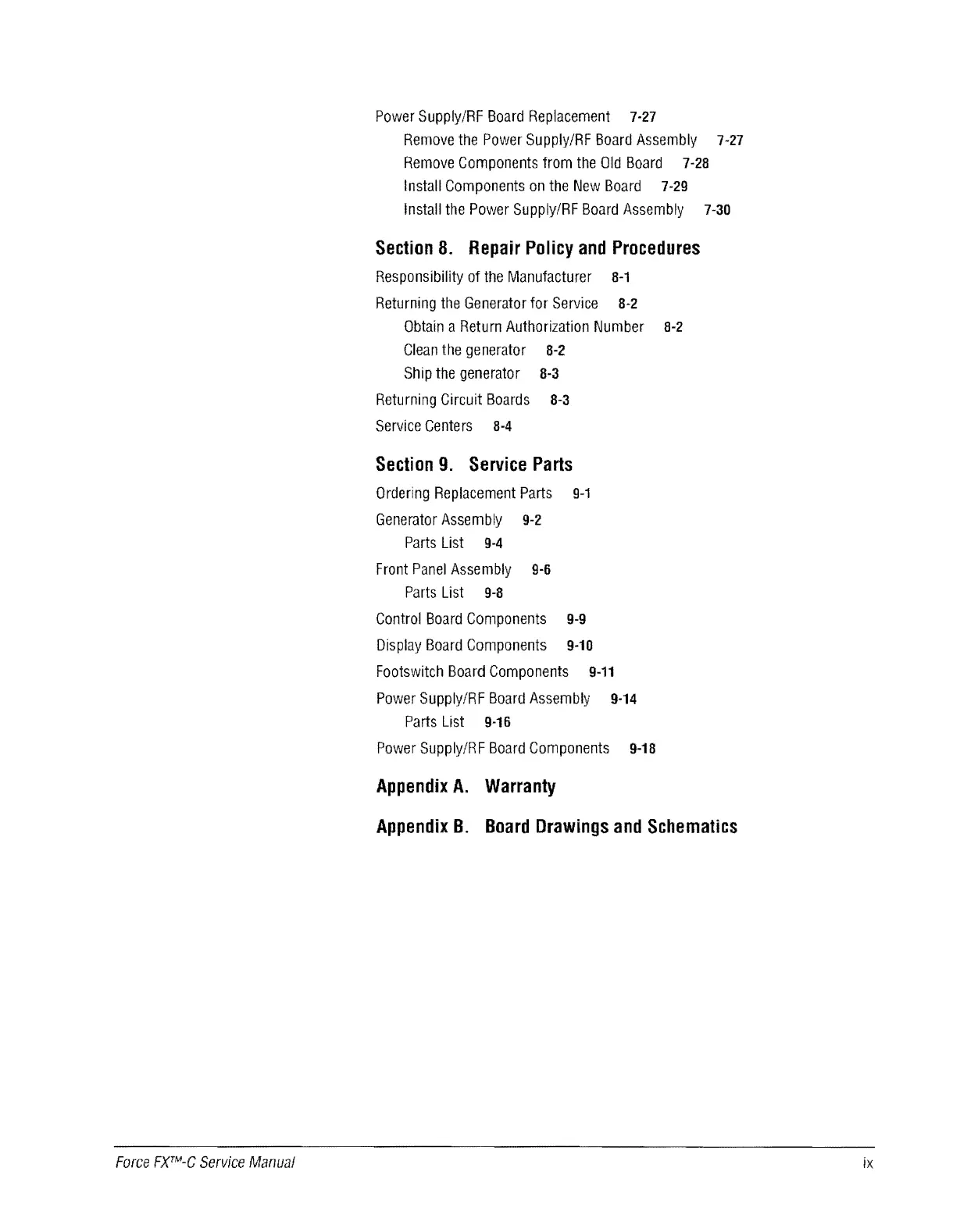

Force FXTM-C Service Manual
Power Supply/RF Board Replacement 7-27
Remove the Power Supply/RF Board Assembly 7-27
Remove Components from the Old Board 7-28
Install Components on the New Board 7-29
Install the Power Supply/RF Board Assembly 7-30
Section 8. Repair Policy and Procedures
Responsibility of the Manufacturer 8-1
Returning the Generator for Service 8-2
Obtain a Return Authorization Number 8-2
Clean the generator 8-2
Ship the generator 8-3
Returning Circuit Boards 8-3
Service Centers 8-4
Section 9. Service Parts
Ordering Replacement Parts 9-1
Generator Assembly 9-2
Parts List 9-4
Front Panel Assembly 9-6
Parts List 9-8
Control Board Components 9-9
Display Board Components 9-10
Footswitch Board Components 9-11
Power Supply/RF Board Assembly 9-14
Parts List 9-16
Power Supply/RF Board Components 9-18
Appendix A. Warranty
Appendix B. Board Drawings and Schematics
ix
