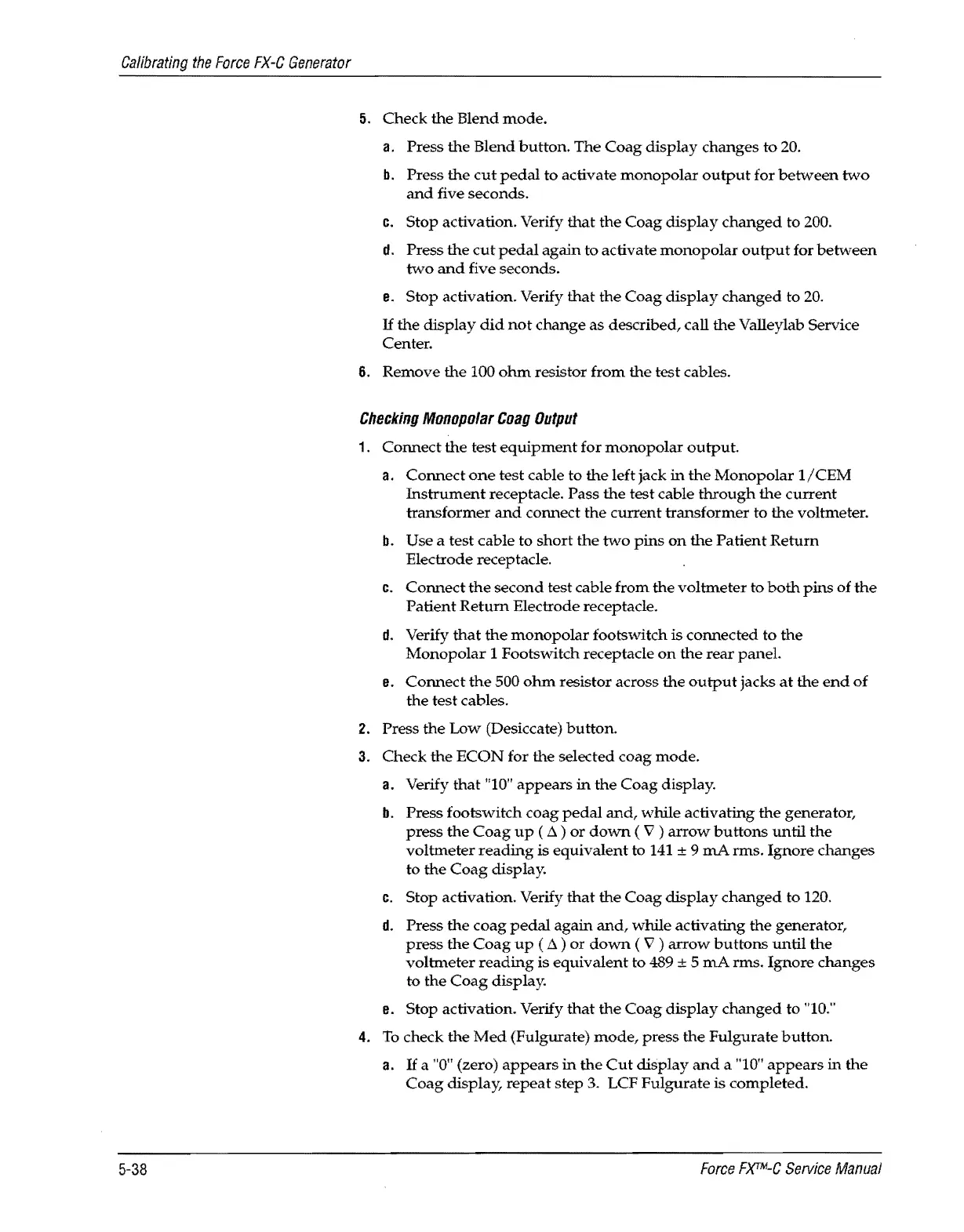

Calibrating
the
Force
FX-C
Generator
5-38
5.
Check
the Blend
mode.
a.
Press
the
Blend
button.
The
Coag
display
changes
to
20.
b.
Press
the
cut
pedal
to activate
monopolar
output
for
between
hvo
and
five seconds.
c.
Stop activation. Verify
that
the
Coag
display
changed
to 200.
d. Press
the
cut
pedal
again
to activate
monopolar
output
for
between
two
and
five seconds.
e.
Stop
activation. Verify
that
the
Coag
display
changed
to 20.
If
the
display
did
not
change
as
described, call
the
Valleylab Service
Center.
6.
Remove
the
100
ohm
resistor from
the
test cables.
Checking
Monopo/ar
Coag
Output
1.
Connect
the
test
equipment
for
monopolar
output.
a.
Connect
one
test cable to
the
left jack
in
the
Monopolar
1/
CEM
Instrument
receptacle.
Pass
the
test
cable
through
the
current
transformer
and
connect
the
current
transformer
to
the
voltmeter.
b.
Use a test cable to
short
the
two
pins
on
the
Patient
Return
Electrode receptacle.
c.
Connect
the
second
test cable from
the
voltmeter
to
both
pins
of
the
Patient
Return
Electrode receptacle.
d.
Verify
that
the
monopolar
footswitch
is
connected to
the
Monopolar
1 Footsvvitch receptacle
on
the
rear
panel.
e.
Connect
the
500
ohm
resistor across
the
output
jacks
at
the
end
of
the
test
cables.
2.
Press
the
Low
(Desiccate)
button.
3.
Check
the
ECON
for the selected
coag
mode.
a. Verify
that
"10"
appears
in
the
Coag
display.
b. Press footswitch coag
pedal
and,
while activating
the
generator,
press
the
Coag
up
(
1l
)
or
down
( V )
arrow
buttons
until
the
voltmeter
reading
is
equivalent
to 141 ± 9
rnA
rms. Ignore changes
to
the
Coag
display.
c.
Stop activation. Verify
that
the
Coag
display
changed
to
120.
d.
Press
the
coag
pedal
again
and,
while
activating
the
generator,
press
the
Coag
up
(
1l
)
or
down
( V )
arrow
buttons
until
the
voltmeter
reading
is
equivalent
to 489 ± 5 rnA rms.
Ignore
changes
to
the
Coag
display.
e.
Stop activation. Verify
that
the
Coag
display
changed
to "10."
4.
To
check
the
Med
(Fulgurate)
mode,
press
the
Fulgurate
button.
a.
If
a
"0"
(zero)
appears
in
the
Cut
display
and
a
"10"
appears
in
the
Coag
display,
repeat
step
3. LCF
Fulgurate
is completed.
Force
F)(1M-C
Service
Manual
