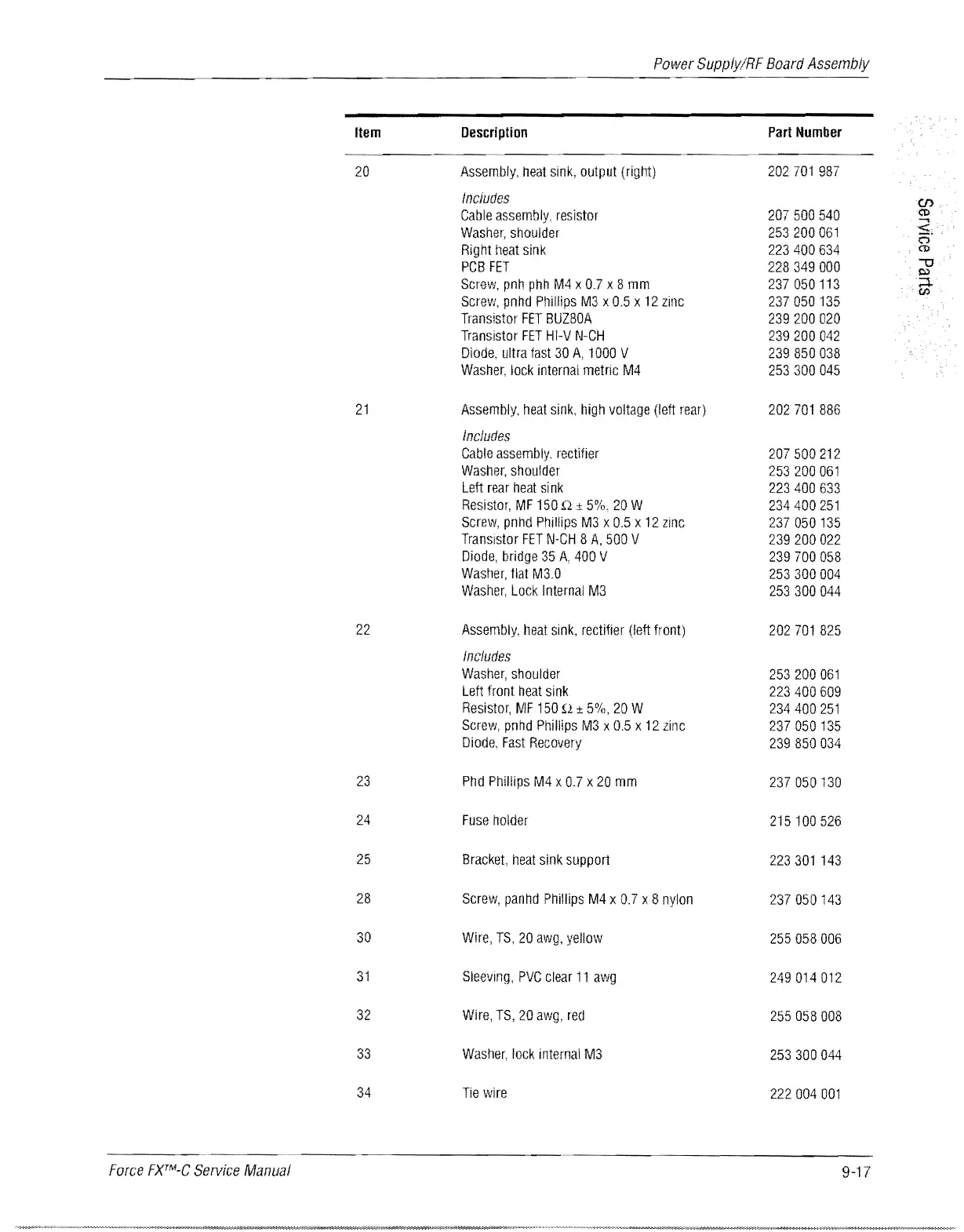

Power SupplylRF Board Assembly
Item
Description Part Number
20
Assembly, heat sink, output (right) 202 701 987
Includes
en
Cable assembly, resistor 207500540
c:o
....,
Washer, shoulder
253200061
S.
<:")
Right Ileat sink 223400634
c:o
PCB FET
228349000
""0
til
Screw. pnh phh M4 x 0.7 x 8 mm 237050113
;4
{J')
Screw, pnhd Phillips M3 x 0.5 x 12 zinc 237050135
Transistor FET BUZ80A
239200020
Transistor FET HI-V N-CH
239200042
Diode, ultra fast 30 A, 1000 V
239850038
Washer, lock internal metnc M4
253300045
21 Assembly, heat sink, high voltage (left rear)
202 701 886
Includes
Cable assembly. rectifier
207500212
Washer, shoulder
253200061
Left rear heat 5i nk
223400633
Resistor, MF 150 Q ± 5%,20 W
234400251
Screw, pnhd Phillips M3 x 0.5 x 12 zinc
237050135
Transistor FET N-CH 8 A, 500 V
239200022
Diode, bridge 35 A, 400 V
239700058
Washer, flat M3.0
253300004
Washer, Lock Internal M3
253300044
22 Assembly, heat sink, rectifier (left front)
202701 825
Includes
Washer, shoulder
253 200 061
Left front heat sink
223400609
Resistor, MF 150 n ± 5%, 20 W
234400251
Screw, pnhd Phillips M3 x 0.5 x 12 zinc
237050135
Diode, Fast Recovery
239850034
23 Phd Phillips M4 x 0.7 x 20 mm
237050130
24
Fuse holder
215100526
25 Bracket, heat sink support
223301143
28
Screw, panhd Phillips M4 x 0.7 x 8 nylon
237050143
30
Wire, TS, 20 awg, yellow
255058006
31
Sleeving, PVC clear 11 awg
249014012
32 Wire, TS, 20 awg, red
255058008
33 Washer, lock internal M3
253300044
34
Tie wire
222004001
Force FXTf>LC Service Manual
9-17
