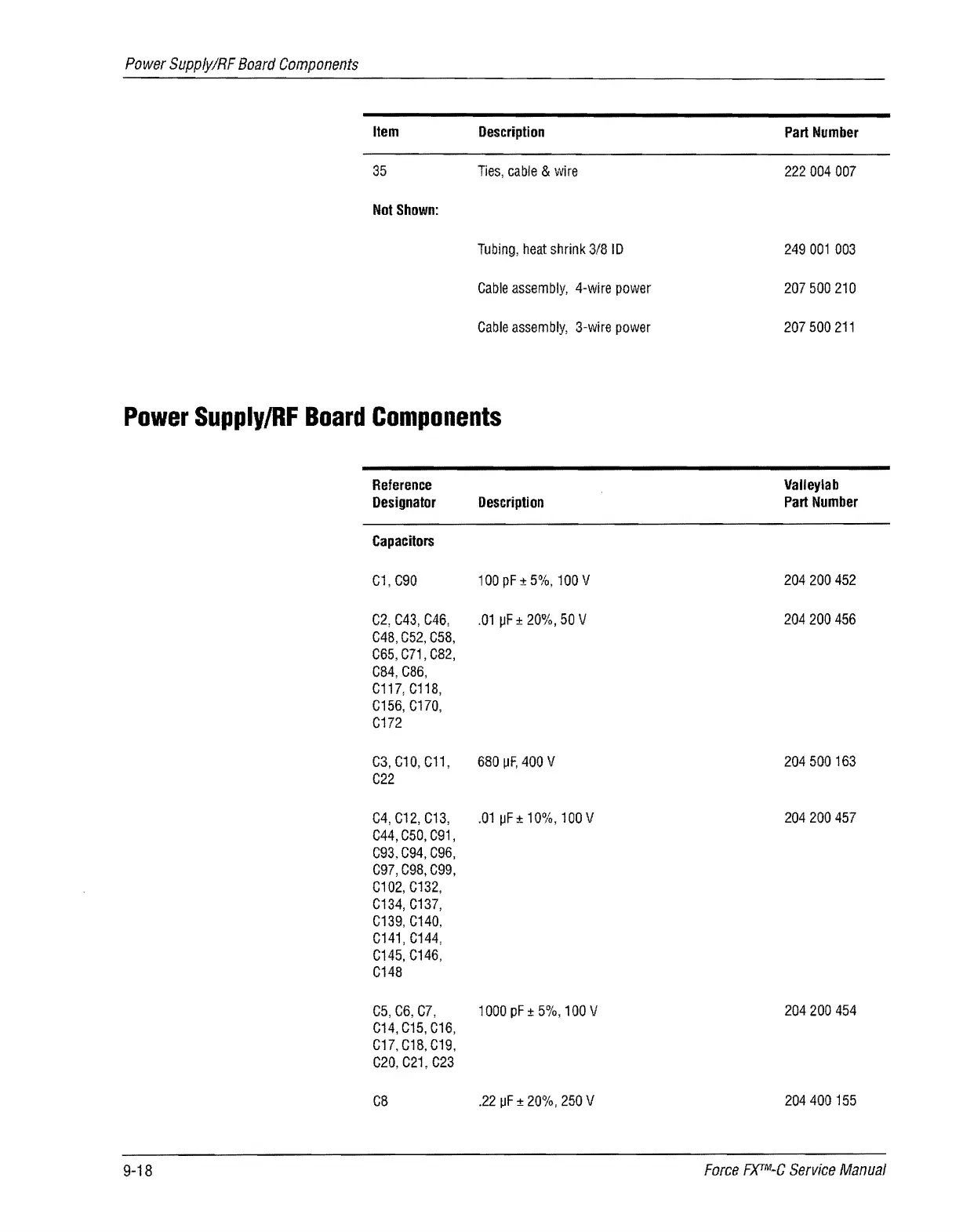

Valleylab Force FX-C - Page 202

Power Suppfy/RF Board Components
Item Description
Part Number
35 Ties, cable & wire
222004007
Not Shown:
Tubing, heat shrink 3/8 ID
249001 003
Cable assembly, 4-wire power 207500210
Cable assembly, 3-wire power 207500211
Power SupplyJRF Board Components
Reference
Valleylab
Designator Description
Part Number
Capacitors
C1,C90 100 pF ± 5%,100 V
204200452
C2, C43, C46,
.01 IJF ± 20%, 50 V
204200456
C4B, C52, C58,
C65, C71, C82,
C84,
C86,
C117,C118,
C156, C170,
C172
C3, C1o, C11,
680 IJF, 400 V
204500163
C22
C4, C12, C13, .01 IJF ± 10%, 100 V
204200457
C44, C50, C91 ,
C93, C94, C96,
C97, C98, C99,
C102, C132,
C134, C137,
C139,
C140,
C141, C144,
C145, C146,
C148
C5, C6, C7, 1000 pF ± 5%, 100 V
204200454
C14, C15, C16,
C17, C18, C19,
C20, C21, C23
CB .22 IJF ± 20%, 250 V
204400155
9-18
Force F)(TM-C Service Manual
