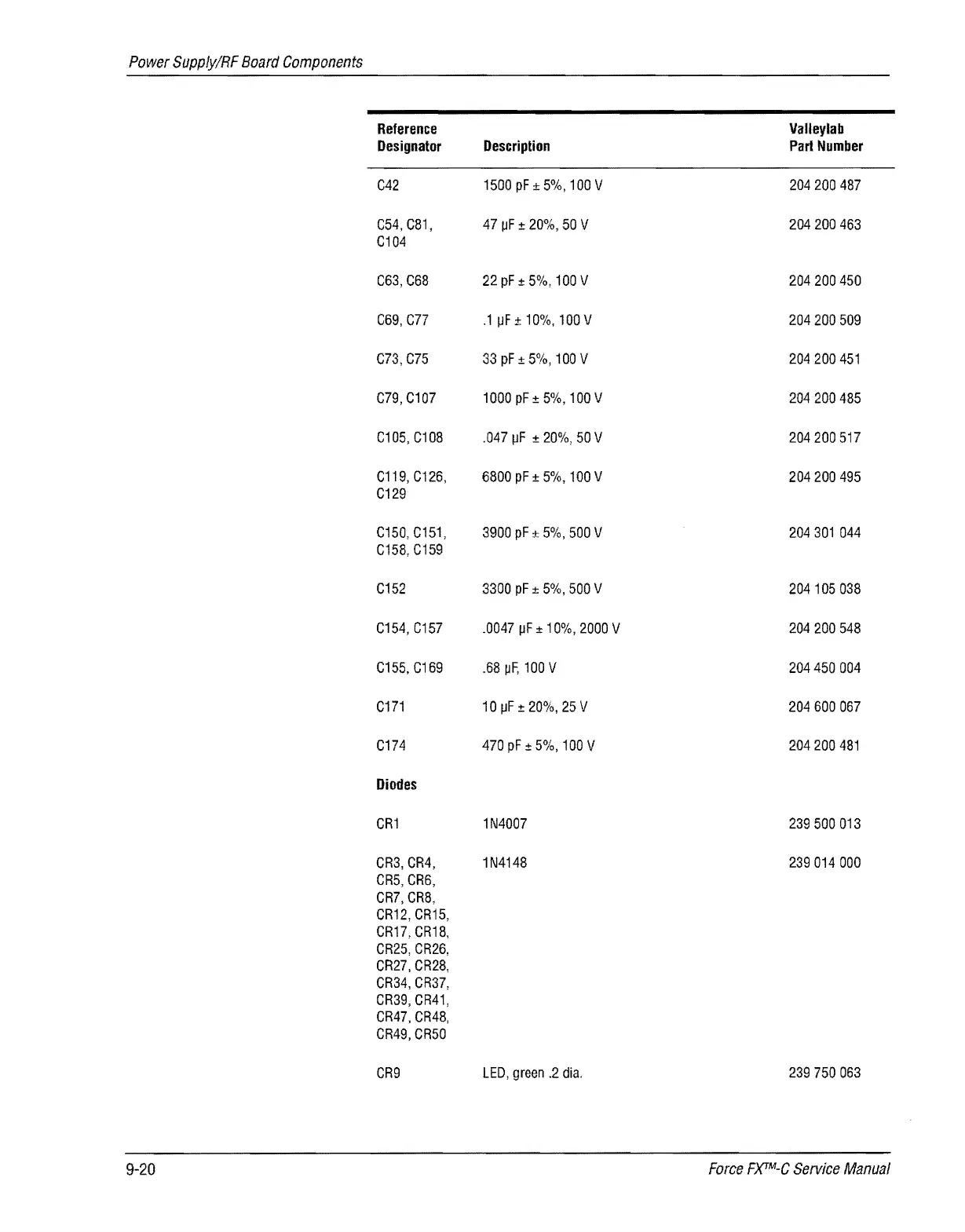

Power Supp/yIRF Board Components
Reference Valleylab
Designator Description Pari Number
C42 1500pF±5%,100V 204200487
C54, C81, 47 ~F ± 20%, 50 V
204 200 463
C104
C63,C68 22 pF ± 5%,100 V 204200450
C69, C77 .1 ~F ± 10%, 100 V 204200509
C73,C75 33 pF ± 5%,100 V 204200451
C79,C107 1000 pF ± 5%, 100 V
204200485
C105,C108 .047 ~F ± 20%, 50 V 204200517
C119,C126, 6800 pF ± 5%, 100 V
204200495
C129
C150, C151, 3900 pF ± 5%, 500 V 204301 044
C158,C159
C152 3300 pF ± 5%, 500 V 204105038
C154,C157 .0047 ~F ± 10%, 2000 V 204200548
C155,C169 .68 ~F, 100 V 204450004
C171 1 0 ~F ± 20%, 25 V 204600067
C174 470 pF ± 5%,100 V 204200481
Diodes
CR1
1N4007
239500013
CR3, CR4, 1N4148 239014000
CR5, CR6,
CR7, CR8,
CR12, CR15,
CR17, CR18,
CR25, CR26,
CR27, CR28,
CR34, CR37,
CR39, CR41,
CR47, CR48,
CR49, CR50
CR9
LED, green .2 dia. 239750063
