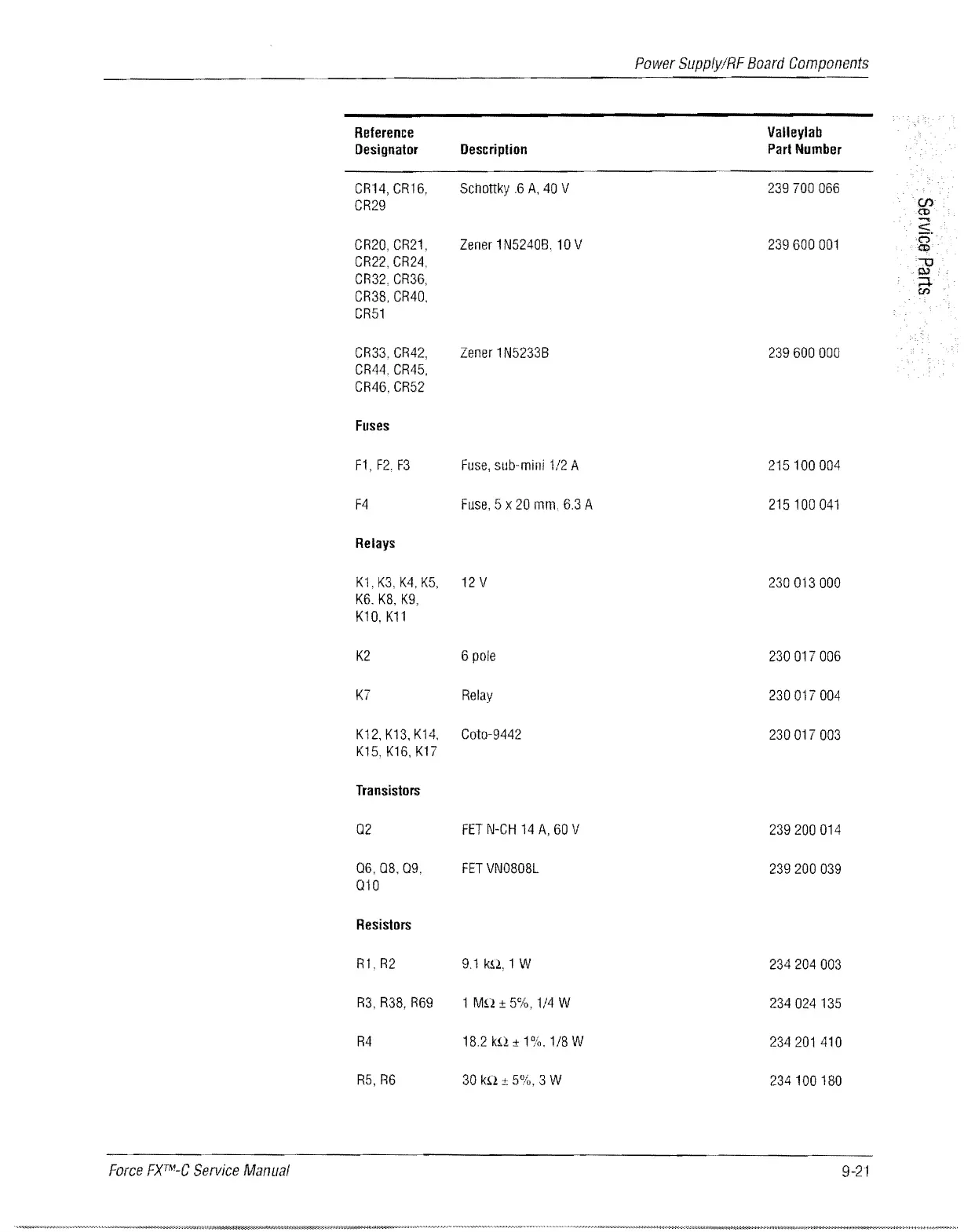

Power Supp/y/RF Board Components
Reference
Valleylab
Designator Description
Part Number
CR14, CR16, Schottky .6 A, 40 V 239700066
CR29
CJ)
C/:)
.....
<
CR20, CR21,
Zener 1 N5240B. 10 V
239600001
0'
co
CR22, CR24,
-:0
CR32. CR36,
w
;;::+
CR38, CR40,
trJ
CR51
CR33, CR42, Zener 1 N52338
239600000
CR44, CR45,
CR46,CR52
Fuses
Fl, F2, F3 Fuse, sub-mini 1/2 A
215100004
F4
Fuse, 5 x 20 mill, 6.3 A 215100041
Relays
Kl, K3. K4, K5,
12 V
230013000
K6. K8, K9,
Kl0, Kl1
K2 6 pole
230017006
K7 Relay
230017004
K12, K13, K14, Coto-9442
230017003
K15, K16, K17
Transistors
02 FET N-CH 14 A, 60 V
239200014
06,08,09,
FET VN0808L
239200039
010
Resistors
Rl, R2
9.1 kil, 1 W
234204003
R3, R38, R69
1 Mn ± 5%. 1/4 W
234024135
R4
18.2k!l±1%,1/8W
234201410
R5, R6 30 kn ± 5%,3 W
234100180
Force FXTM-C Service Manual
9-21
