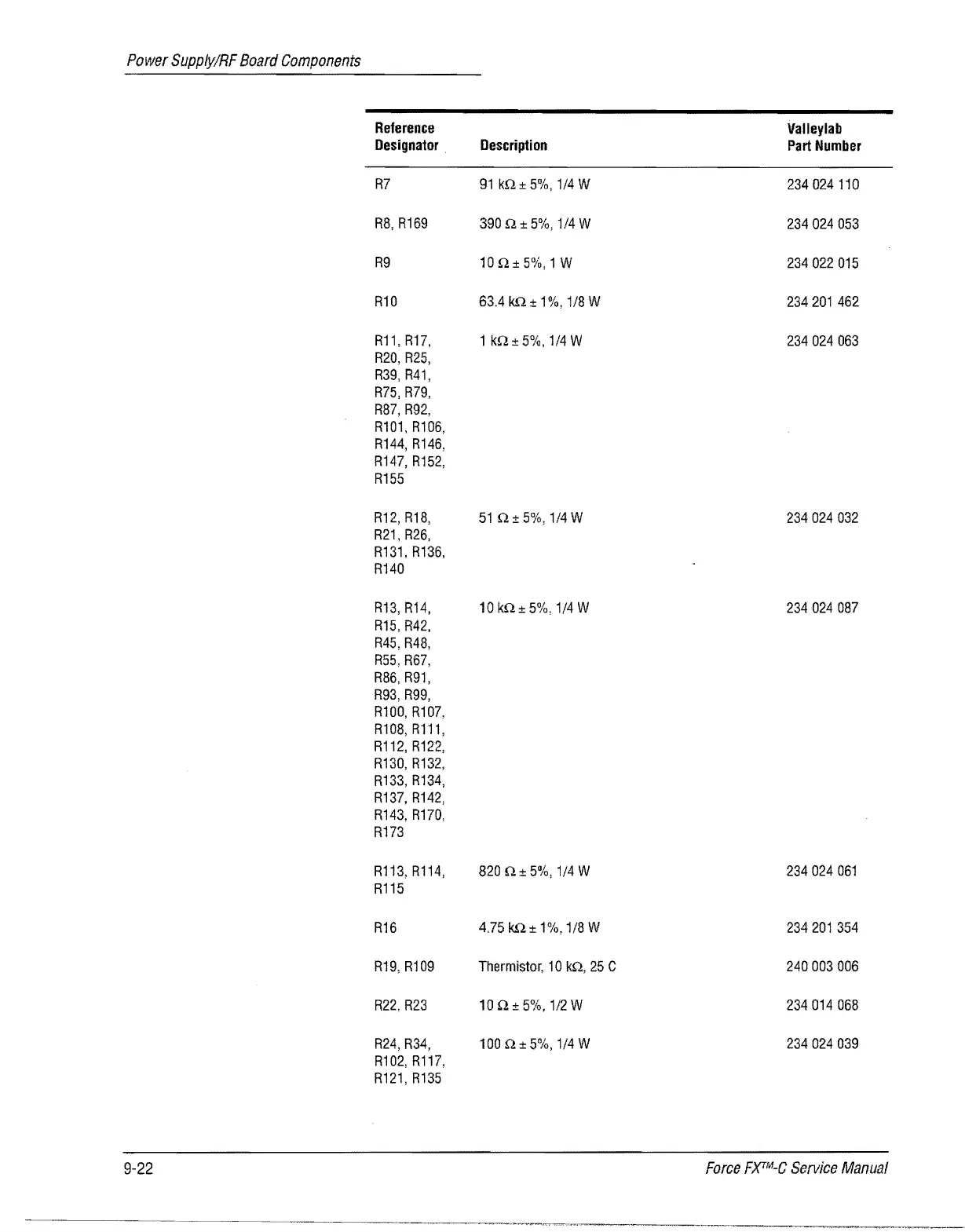

Valleylab Force FX-C - Page 206

Power SupplylRF Board Components
Reference
Valleylab
Designator
Description
Part Number
R7
91 kn ± 5%, 1/4 W 234024110
R8,R169
390n±5%,1/4W
234024053
R9
10n±5%,1 W
234022015
R10 63.4 kn ± 1%, 1/8 W 234201462
R11, R17, 1 kn±5%, 1/4W
234024063
R20, R25,
R39, R41,
R75, R79,
R87, R92,
R101, R106,
R144, R146,
R147, R152,
R155
R12, R18, 51 n ± 5%, 1/4 W
234024032
R21, R26,
R131, R136,
R140
R13, R14,
10kn±5%,1/4W 234024087
R15, R42,
R45, R48,
R55, R67,
R86, R91,
R93, R99,
R100, R107,
R108,R111,
R112, R122,
R130, R132,
R133, R134,
R137,
R142,
R143, R170,
R173
R113, R114, 820 n ± 5%, 1/4 W 234024061
R115
R16
4.75 kn ± 1%, 1/8 W 234201354
R19, R109 Thermistor, 10 kn, 25 C 240003006
R22,R23 10 n ± 5%,112 W 234014068
R24, R34, 100n±5%,1/4W 234024039
R102, R117,
R121,
R135
