4 GET TO KNOW YOUR MACHINE

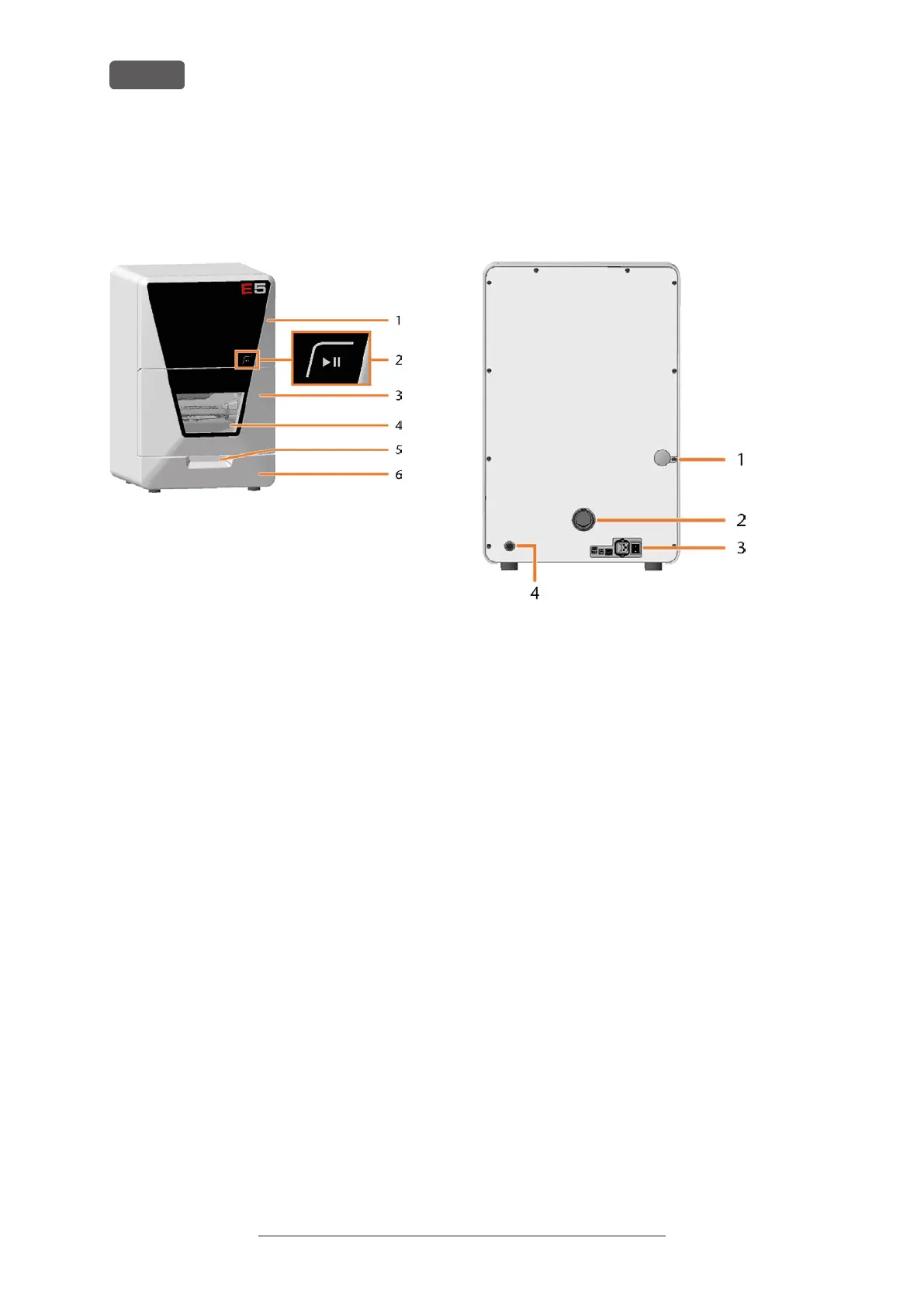

4.1 Front side of the machine
1. Upper service cover for access to the machine interior
2. Start button
Start button (  page 11)
3. Working chamber door
Working chamber door (  page 11)
4. View window to the working chamber
Cleaning the machine (  page 44)
5. Recessed grip for opening the working chamber door
6. Lower service cover for access to the system module slot
Exchanging the system module (  page 73)
4.2 Rear side of the machine
1. Emergency opening mechanism for the working chamber
door
Emergency opening of the working chamber door
(  page 99)
2. Hose connection for the air extraction system
Installing the air extraction system (  page 18)
3. Connection panel
Connection panel (  page 11)
4. Air extraction interface (6 pins, IEC 61076-2-106)
Installing the air extraction system (  page 18)
