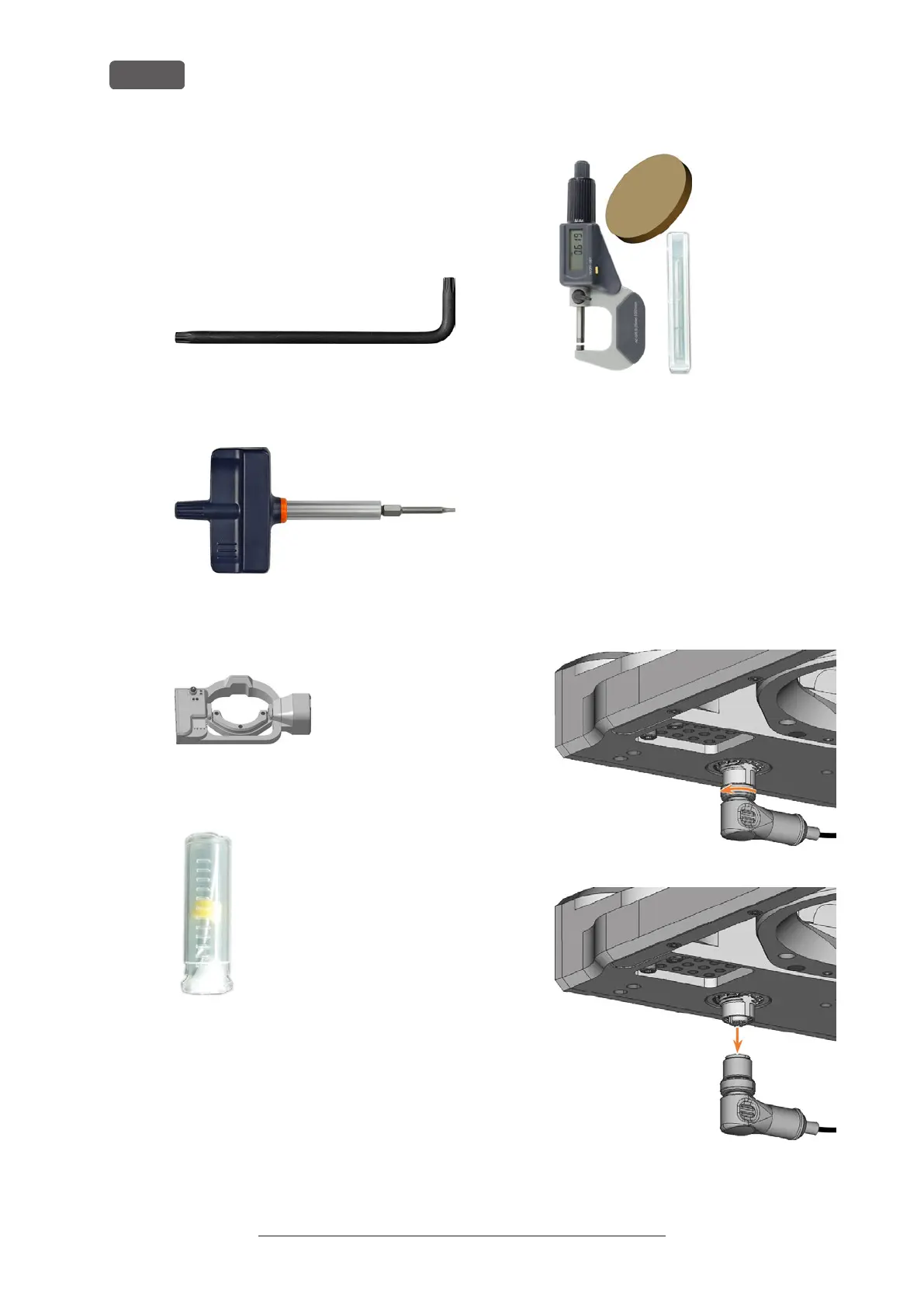

VHF E5 - A-B Axis Module Exchange

7.23 Exchanging the A-B axis mod-
ule
1. Have ready:
n
1x Angle screwdriver TX25
FIG. 258
n
1x Torque screwdriver 5.0Nm with TX25
bit (supplied with the spare part)
FIG. 259
n
1x Spare A-B axis module
FIG. 260
n
1x Drill bit for tool positions (2.8 mm)
FIG. 261
n
1x Calibration set
FIG. 262
2. Close DENTALCNC.
3. Open the working chamber door.
4. Switch off the machine at the main power switch.
5. ⚠ CAUTION! Wear gloves.
6. NOTICE! Remove all tools from the tool magazine
and remove the AirTool from the insert E1.
7. Loosen the A-B axis module power cable.
a. Open the screw cap on the lower left side of
the A-B axis module.
b. Pull the cable down.
FIG. 263
FIG. 264
