VHF E5 - Page 89

FIG. 252
FIG. 253
FIG. 254

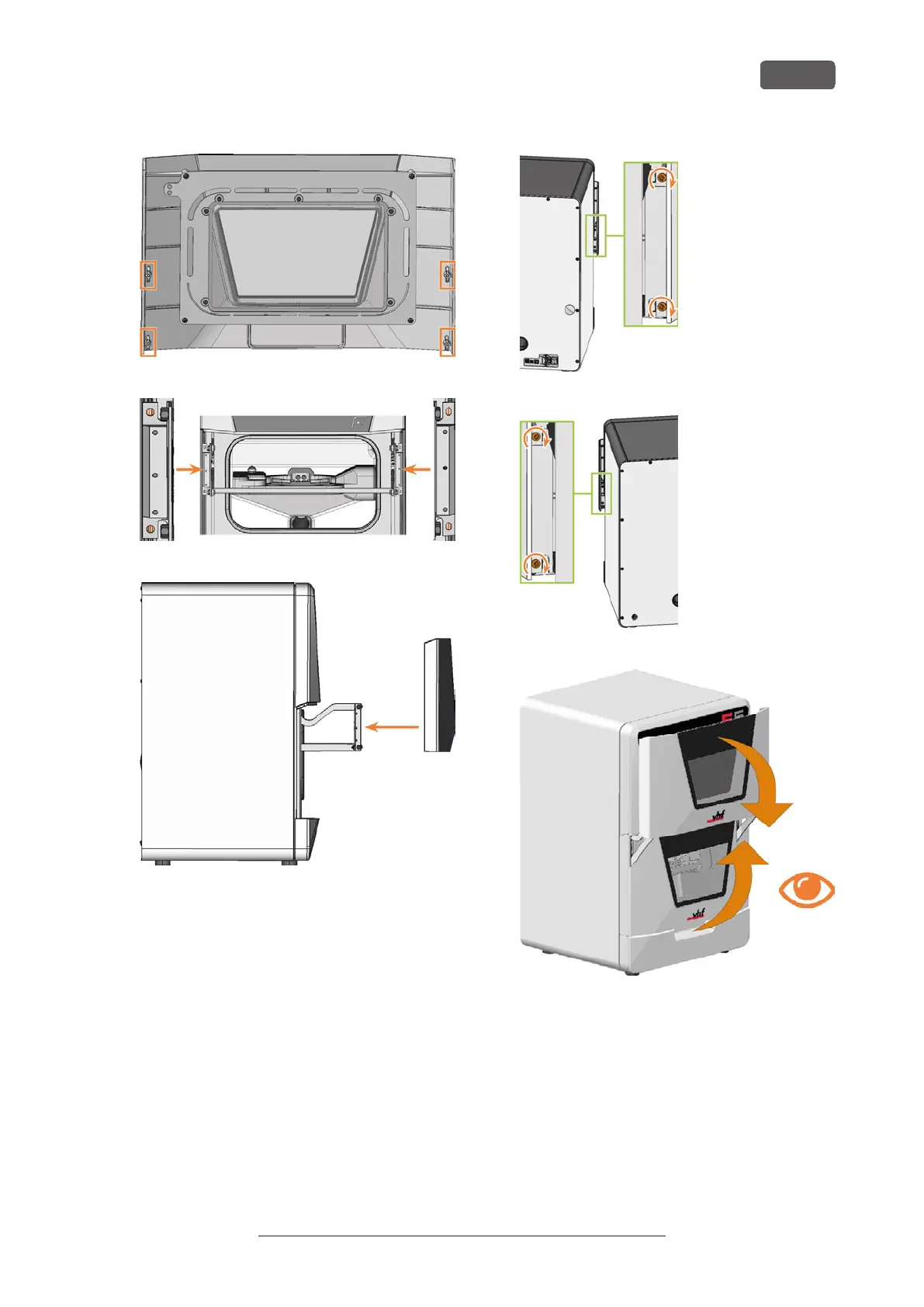

6. Use the 1.5 Nm torque screwdriver to tighten the
working chamber door with the 4 self-tapping
screws (marked orange).
7. Test if the working chamber door opens and closes
properly. If not, loosen the 4 screws and correct the
position of the working chamber door.
FIG. 255
FIG. 256
FIG. 257
Maintenance
EN 89
Original Operating Instructions: E5
Version: 4/27/2023
