VHF E5 - Measuring Key Exchange

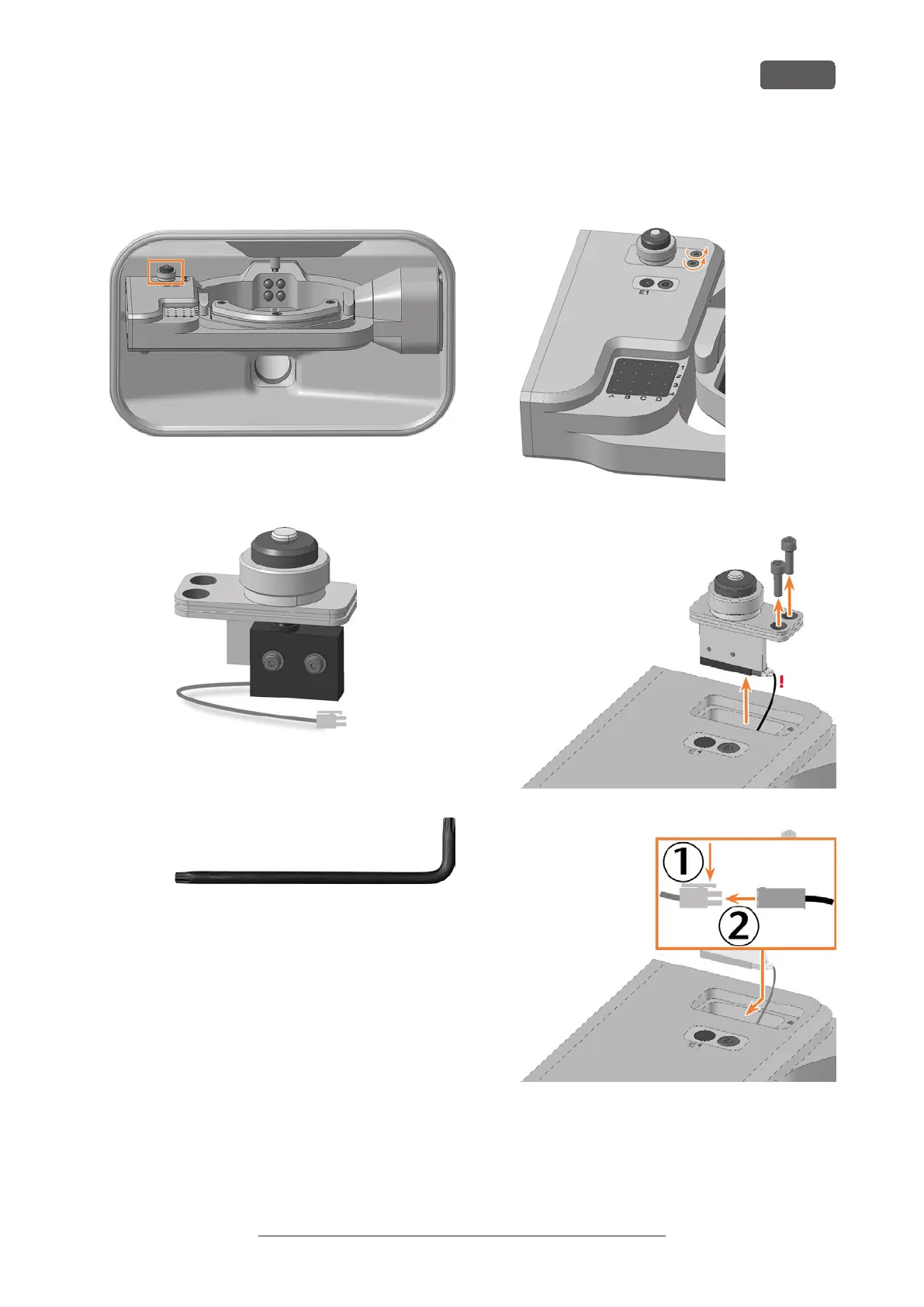

7.17 Exchanging the measuring key
The measuring key is located in the working chamber:
FIG. 209 MEASURING KEY IN THE WORKING CHAMBER (MARKED ORANGE)
1. Have ready:
n
1x Spare measuring key
FIG. 210
n
1x Angle screwdriver TX10
FIG. 211
2. Open the working chamber door.
3. ⚠ CAUTION! Wear gloves.
4. Remove the tool from position E1.
5. Close DENTALCNC.
6. Switch off the machine at the main power switch.
7. Use the TX10 angle screwdriver to remove the 2
screws holding the measuring key in place.
8. Gently pull the measuring key up a little. Pay atten-
tion to the plugged-in measuring key cable.
9. Push in the side clip on the connector of the meas-
uring key cable and pull the connector out of the
socket.
FIG. 212
FIG. 213
FIG. 214
10. Remove the measuring key with its cable from the
working chamber.
Maintenance
EN 79
