VHF E5 - Tool Magazine Insert Exchange

7.11 Exchanging tool magazine
inserts and associated holders
NOTICE
Machine and tool damage if not all tools
are removed
If a tool remains in the working chamber, a collision
will ensue.
Always remove all tools from the working chamber
when exchanging inserts.
New inserts are delivered without holes for the tools.
The holes must be drilled into the inserts with the
machine.
In case of a defect, you can exchange the holders for
the inserts separately.

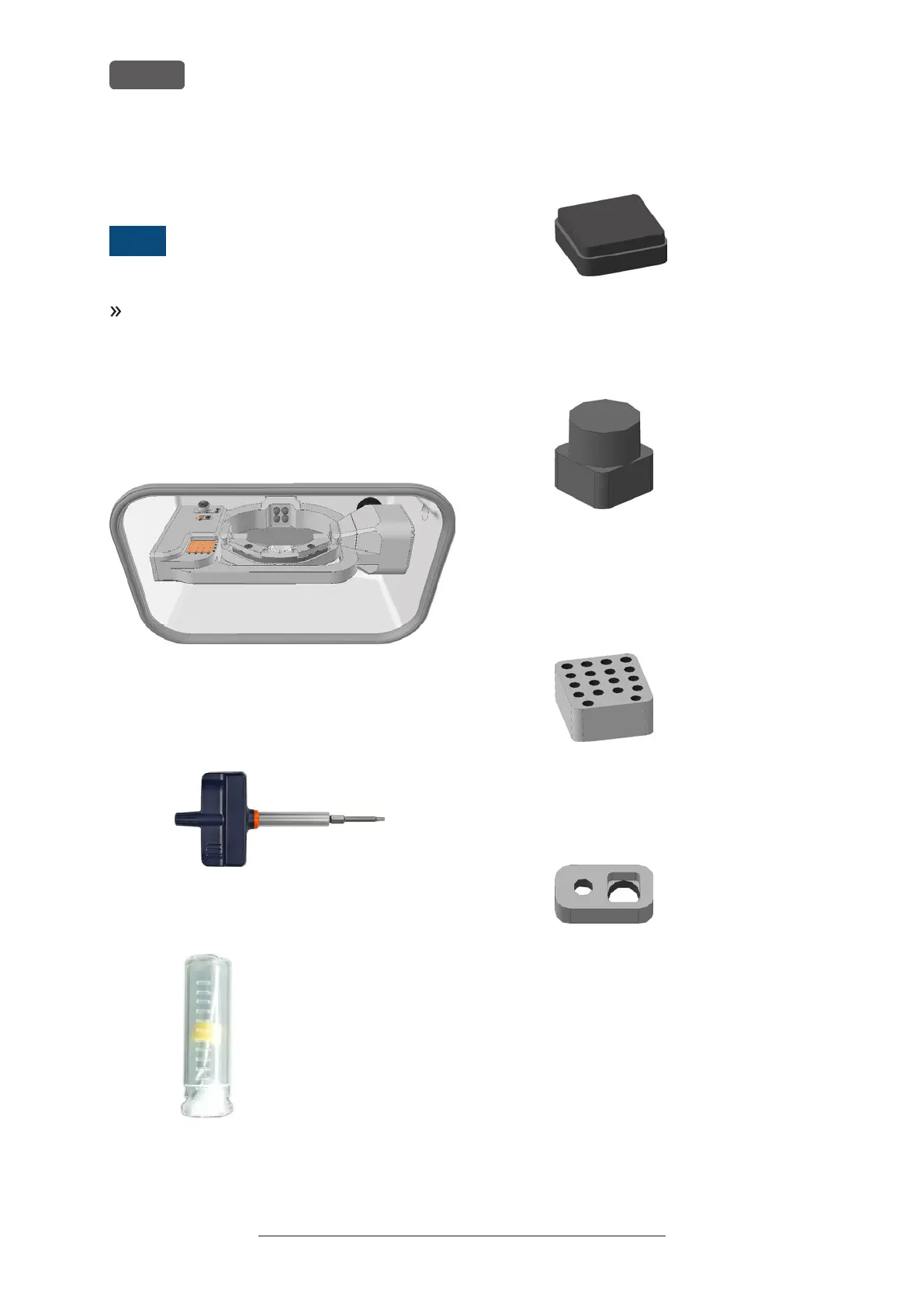

FIG. 110 TOOL MAGAZINE INSERT AND AIRTOOLINSERT (MARKED ORANGE)
1. Have ready:
n
1x Torque screwdriver 1.5 Nm with TX20
bit
FIG. 111
n
1x Drill bit for tool positions (2.8 mm)
FIG. 112
If you want to exchange the inserts:
n
FIG. 113
and
n
1 x AirTool insert
FIG. 114
If you want to exchange at least one of the
holders:
n
1 x Holder for tool magazine insert
FIG. 115
and / or
n
1 x Holder for AirTool insert
FIG. 116
2. Quit DENTALCNC.
3. Open the working chamber door.
4. Switch off the machine at the main power switch.
5. ⚠ CAUTION! Wear gloves.
6. NOTICE! Remove all tools from the tool magazine
and remove the AirTool from the insert E1.
7. Remove the screw on the right side of the AirTool
insert E1.
