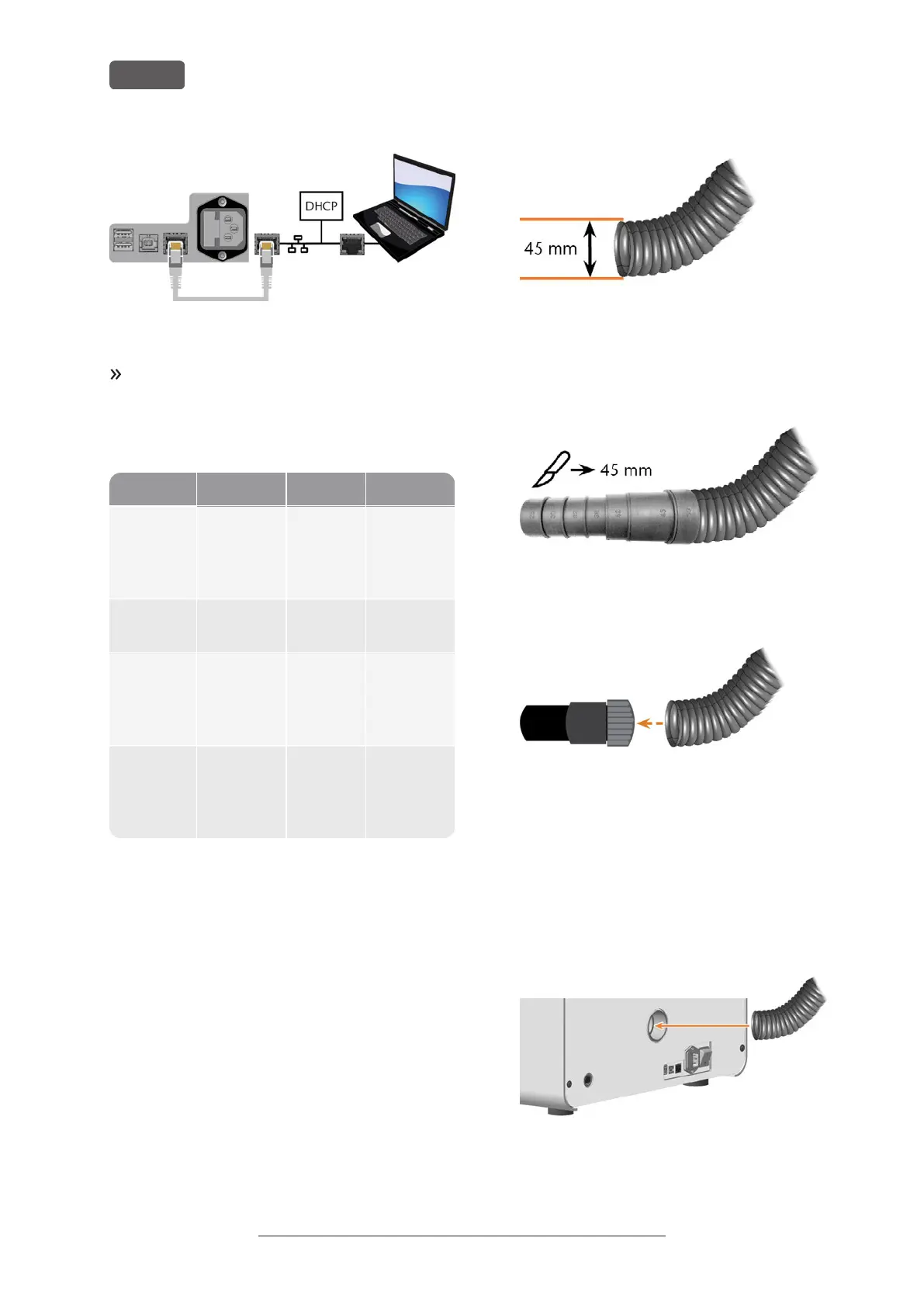

FIG. 10 CONNECTION VIA A NETWORK DIAGRAM
5.2.3 Installing the air extraction system
⚠ WARNING! Always use an air extraction system
that meets the requirements of the chapter Tech-
nical data.
Components of the air extraction system:
Component Source Required? Prerequisite
Suction unit
incl. suction
hose
Customer
service,
specialist
dealers
Yes –
Switching
unit
Customer
service
*
No Data cable
not used
Data cable of
supported
suction units
Manufacturer
of the suction
unit
No Supported
suction unit;
switching
unit not used
Hose connec-
tion
Customer
service
If the
suction
hose does
not fit
–
*
The switching unit is not available worldwide.
You can install the suction unit as follows:
1. Read the documentation for the suction unit.
Follow the operating and safety instructions at any
time.
2. Check if the connection of the suction hose has an
outer diameter of 45mm.
FIG. 11
3. If the diameter is different, adjust either the hose or
the hose adapter supplied with the suction unit.
Alternative: Use the optional hose connection of
vhf.
FIG. 12 EXAMPLE: SUCTION HOSE WITH HOSE ADAPTER
or
FIG. 13 HOSE CONNECTION
FIG. 14 CONNECTING THE SUCTION HOSE WITH THE OPTIONAL HOSE
CONNECTION (  PAGE 19)
4. Insert the suction hose into the opening for the
suction unit on the machine. Ensure that the
suction hose is properly seated.
or
