7.21 Exchanging the A-B axis mod-
ule cover caps
4 cover caps protect the 4 fixing screws of the
machining unit from machining residues.

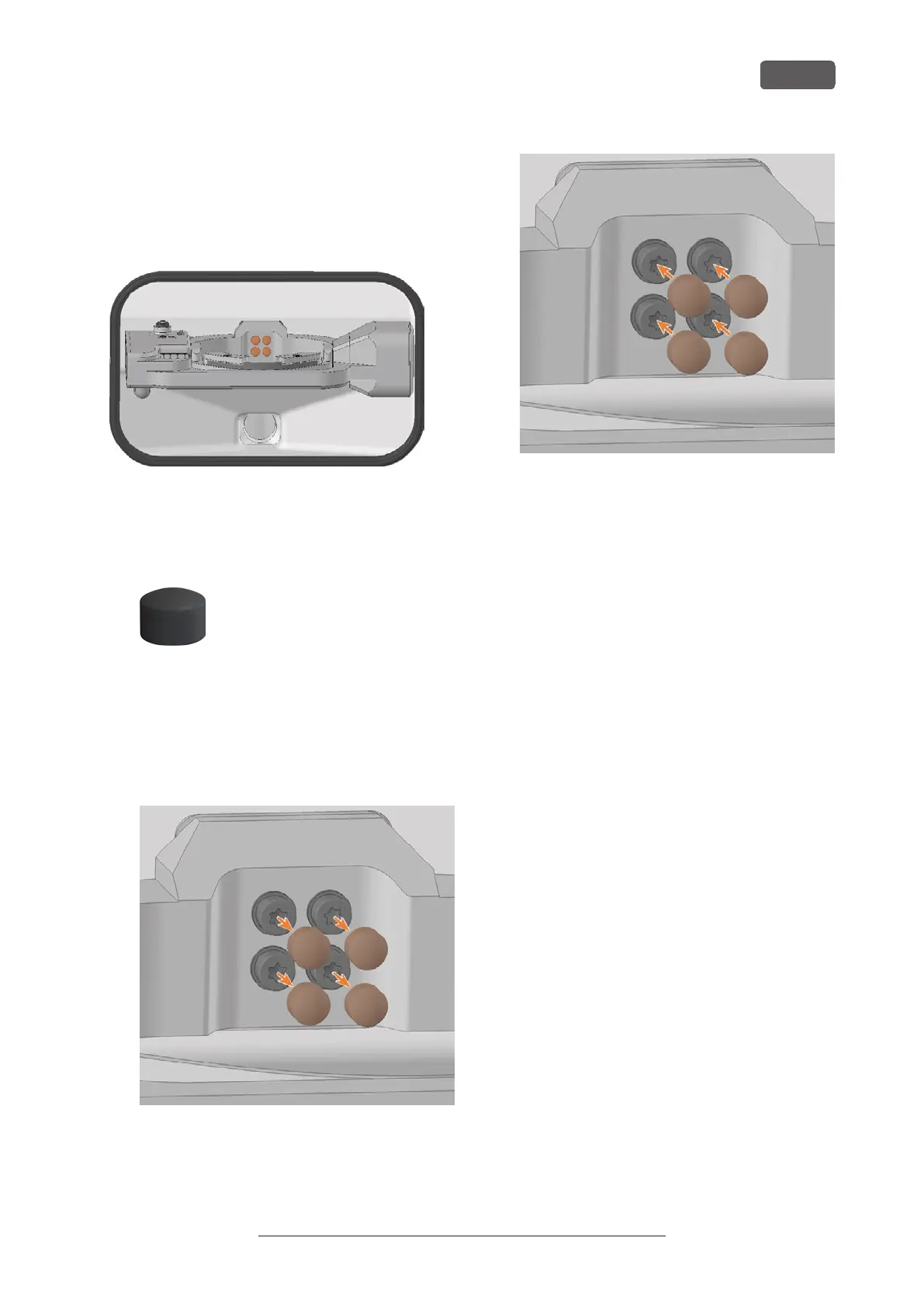

FIG. 243 COVER CAPS ON THE FIXING SCREWS OF THE A-B AXIS MODULE
(MARKED ORANGE)
1. Have ready:
4 x Spare cap
FIG. 244
2. Open the working chamber door.
3. ⚠ CAUTION! Wear gloves.
4. Pull the 4 cover caps (marked orange) off the 4
fixing screws on the A-B axis module.
5. Plug the spare caps onto the fixing screws.
FIG. 245
FIG. 246
Maintenance
EN 87
Original Operating Instructions: E5
Version: 4/27/2023
