14. If the spindle cannot be pulled out, do the
following:
a. Open the working chamber door using the
emergency release.
Emergency opening of the working chamber
door – on page99
b. Loosen the screws securing the mounting
washer to the bellow without unscrewing it.
c. Close the working chamber door.

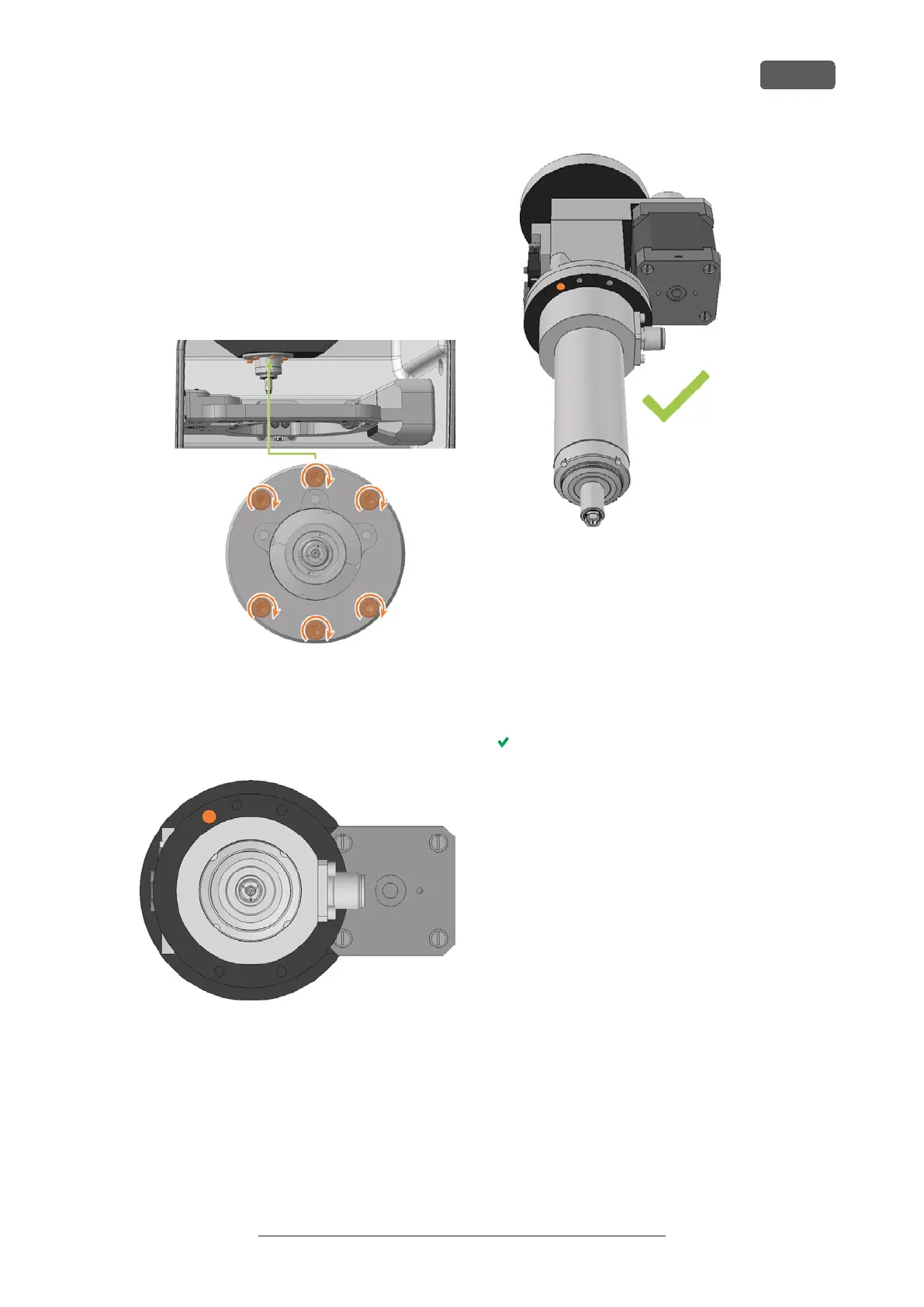

15. Pick up the spare spindle and locate the positioning
pin hole (marked orange) on the bottom.
16. Rotate the spindle so that the positioning pin aper-
ture (marked orange) is in the front left.
FIG. 171
FIG. 172
17. Insert the replacement spindle from above into the
spindle holder:
a. Insert the positioning pin on the spindle
bracket (marked in green) into the posi-
tioning pin opening (marked in orange) in
the spindle.
b. Gently push the spindle down, paying atten-
tion to the spindle height indicator.
Once you have pushed the spindle down suffi-
ciently, you will see the green ring on the spindle
height indicator.
Maintenance
EN 69
