VHF E5 - Fuser Latches & Clamping Blocks Exchange (Lower Cover)

7.19 Exchanging the fuser latches
and clamping blocks on the low er
service cover
If the lower service cover no longer holds, exchange
the fuser latches and the clamping blocks if necessary.

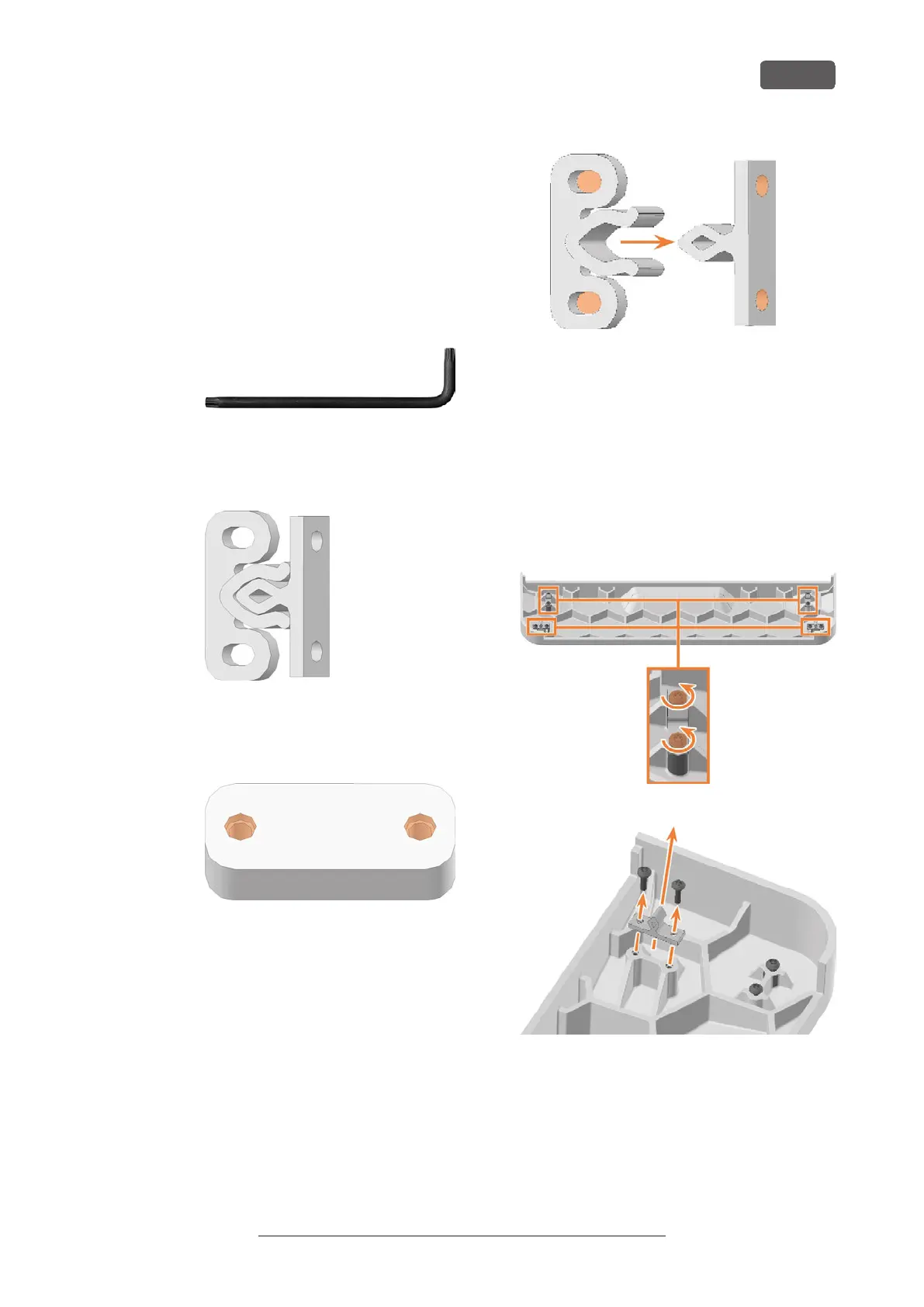

1. Have ready:
n
TX10 angle screwdriver
FIG. 226
n
Replacement fuser latch, number as
required, maximum 4
FIG. 227 LATCH COMBINED
n
Spare voltage blocks (optional),
number as required, maximum 4
FIG. 228 SCREW HOLES MARKED ORANGE
2. Separate the 2 components of the replace-
ment latch: Pull the plug (right) out of the
socket (left).
FIG. 229 SCREW HOLES MARKED ORANGE
3. Close the working chamber door.
1. Remove the lower service cover.
 Exchanging the system module – on page73
2. Replace the connectors of the damaged fuser
latches on the service cover:
a. Loosen the 2 screws and remove the
connectors.
b. Screw on the spare connectors in the same
position.
FIG. 230
FIG. 231
3. Replace the sockets on the damaged fuser latches
on the machine housing:
a. Loosen the 2 screws and remove the jacks
and clamping blocks.
Maintenance
EN 83
