6.2 Mounting & removing blanks
NOTICE
Damage to tools and blanks as well as
defective machining results due to
incorrect fixing
If blanks move or vibrate during machining, the result
may become unusable. Tightening screws too much
can damage blanks.
Tighten the screws on the clamping devices with
the specified torque.
6.2.1 Suitable blanks
The machine can process the following blanks:
n
Discs with a diameter of 98.5mm – 98.8mm
n
Blocks, max. size: 45x 20x 20mm (L/D/H)
*
*
requires extra equipment
Extra equipment can be obtained from your customer
service provider.
6.2.2 Overview of blank holders and stand-
ard clamping devices

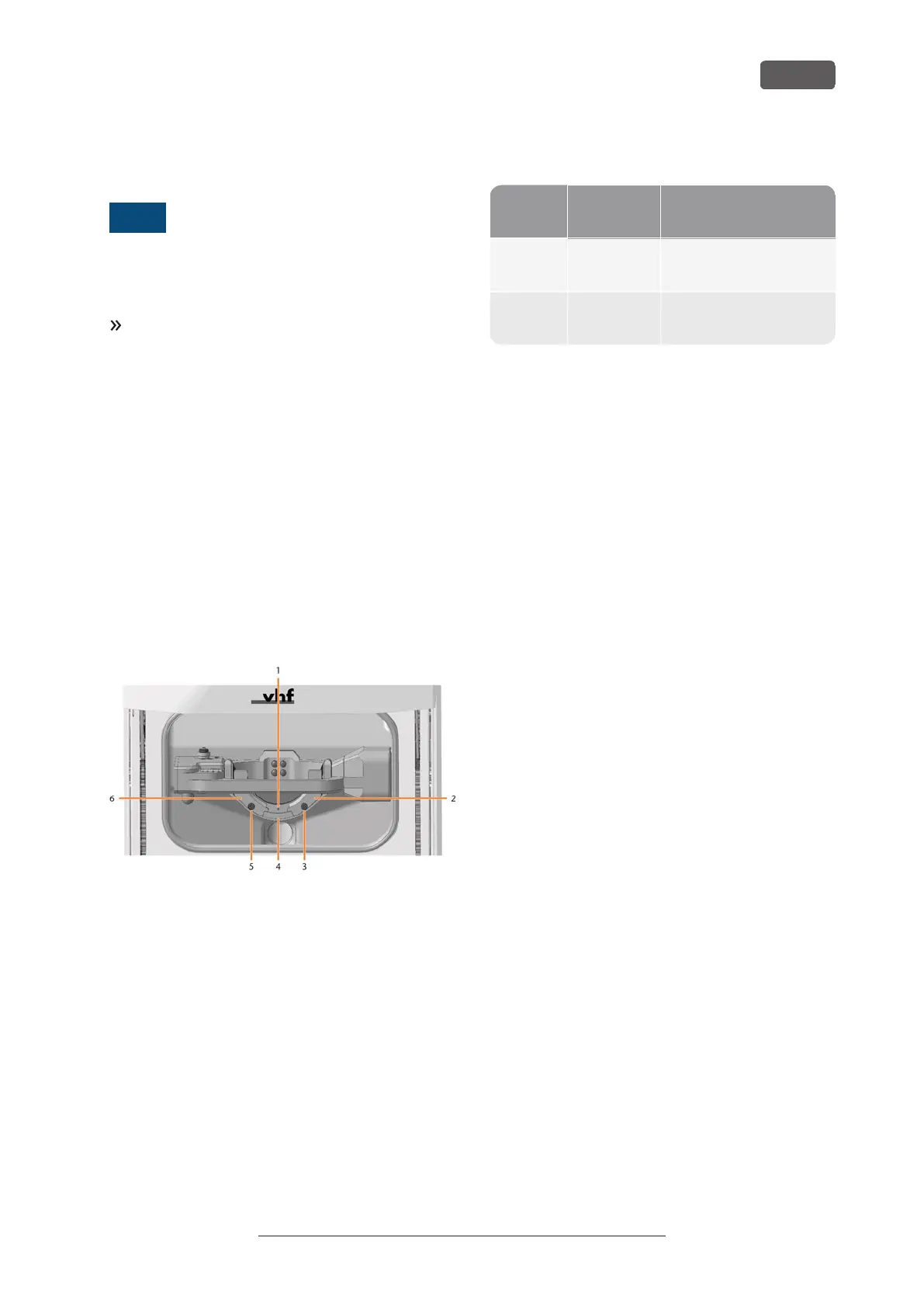

FIG. 35
1. Marking for the safe remounting of discs
2. Right-hand clamping device
3. Fixing screw for right-hand clamping device
4. Blank holder
5. Fixing screw for left-hand clamping device
6. Left-hand clamping device
6.2.3 How to mount the different blank types
Blank
type
Holder
required?
Mount like this
Standard
Discs
No Discs >> Blank holder
Blocks Yes Blocks >> Block holder >>
Blank holder
Operating the machine
EN 27
Original Operating Instructions: E5
Version: 4/27/2023
