VHF E5 - Removing Broken Tools

8.4 Removing broken tools from the
collet chuck
If parts of a broken tool are in the collet chuck, you
must manually remove them.
NOTICE! The collet chuck may be damaged if
you use the knurled nut with pin for removal
1. Have ready:
n
1 x Supplied wrench (5.5 mm)
n
1x Spindle service set
2. Place the wrench on the spindle.
3. Loosen the collet chuck with the wrench. Unscrew
the collet chuck by hand or with the wrench.
If the collet chuck cannot be released because the
collet chuck is spinning, follow the troubleshooting
guide below: Error code -24 – Abgebrochenes
Werkzeug in der Spannzange

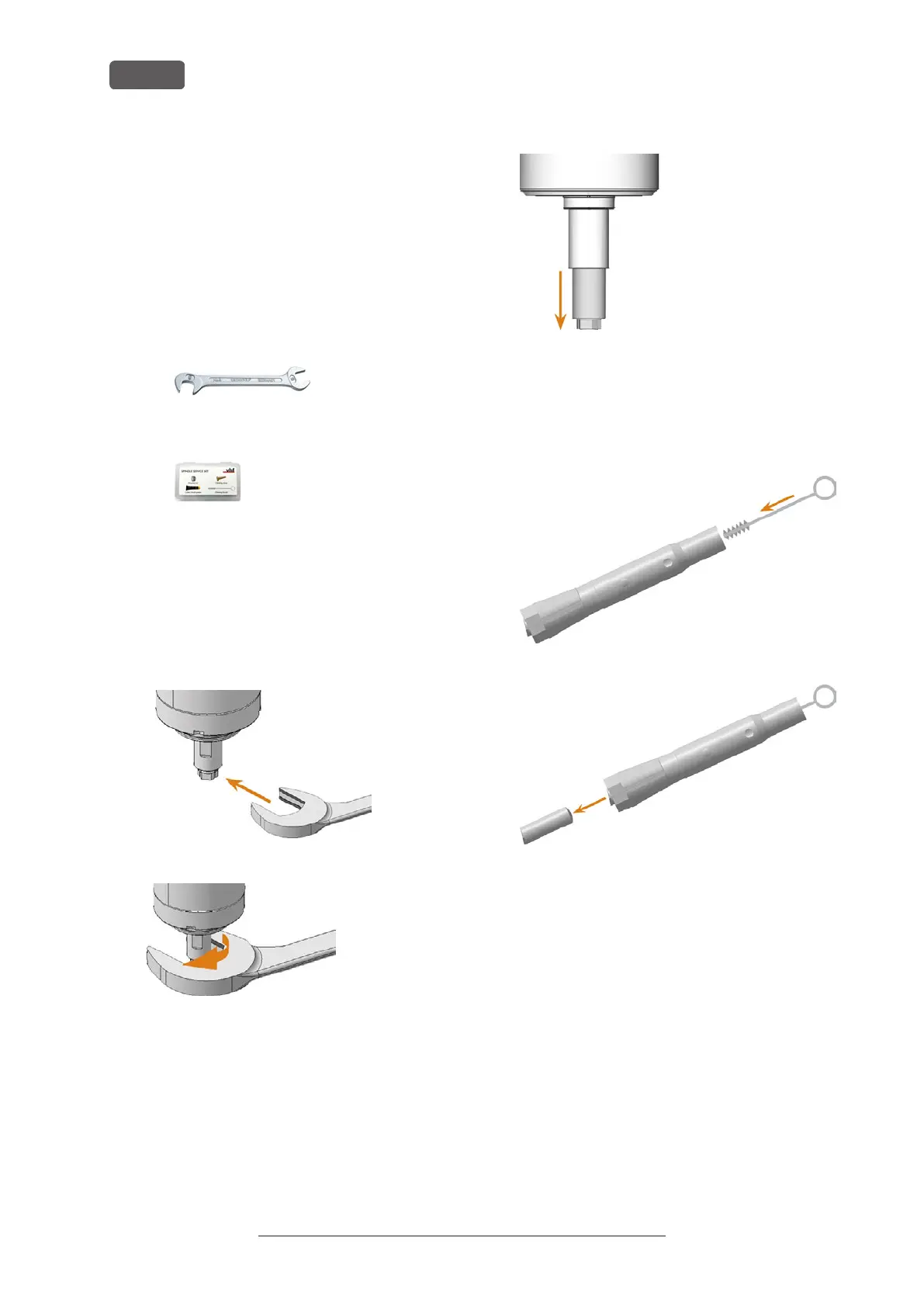

FIG. 285
FIG. 286
FIG. 287
4. Remove the cleaning brush from the spindle
service set.
5. Insert the cleaning brush into the collet chuck and
push the broken off part of the tool out of the collet
chuck.
FIG. 288
FIG. 289
6. Clean and grease the collet chuck and reinstall it:
 Cleaning the collet chuck – on page48
Original Operating Instructions:E5
Version: 4/27/2023
Troubleshooting
EN 100
