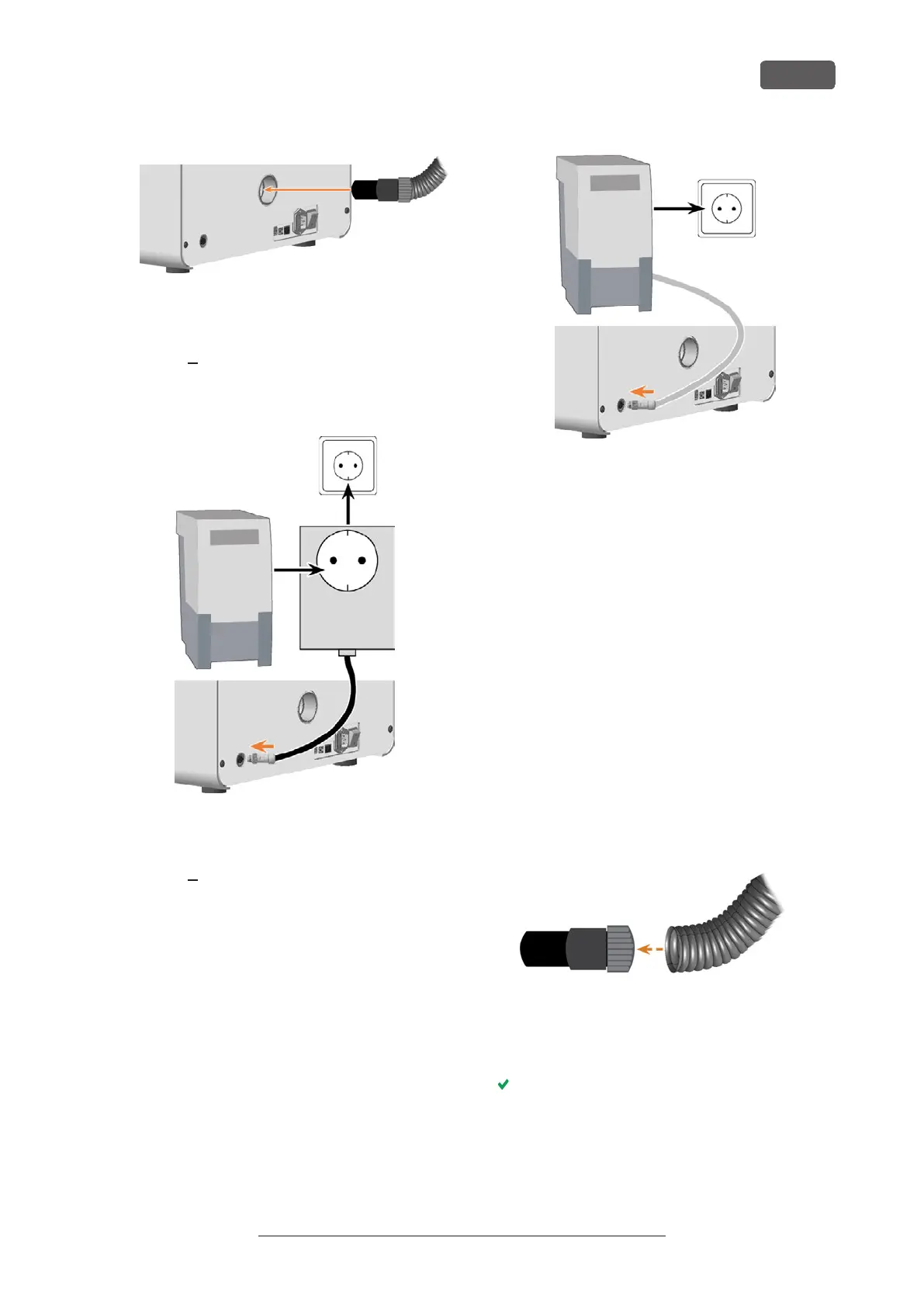

5. If you want the machine to automatically switch the
suction unit on and off, choose 1 of the following
options:
Install the switching unit (extra equip-
ment). The switching unit is not avail-
able worldwide.
FIG. 15
or
Connect a data cable provided by the
suction unit manufacturer to the
machine’s air extraction interface.
6. Continue with the installation of the suction unit as
described in the documentation of the unit.
Connecting the suction hose with the optional
hose connection
If you cannot connect the suction hose of the suction
unit directly to the machine, install the hose connec-
tion as follows:
1. Obtain the hose connection from customer service.
2. Turn the thread of the hose connection counter-
clockwise until the connection is completely open.
If the thread gets detached from the hose connec-
tion, place it onto the connection again and turn it
clockwise once so that it is screwed to the connec-
tion again.
3. Insert the suction hose of the suction device com-
pletely into the hose connection on the side of the
thread.
FIG. 16 INSERTING THE SUCTION HOSE INTO THE HOSE CONNECTION
4. Turn the thread of the hose connection clockwise
as far as you can.
The suction hose is firmly attached to the hose
connection.
5. Insert the hose connection into the opening for the
air extraction system of the machine. Ensure it is
firmly connected.
Installation
EN 19
Original Operating Instructions: E5
Version: 4/27/2023
