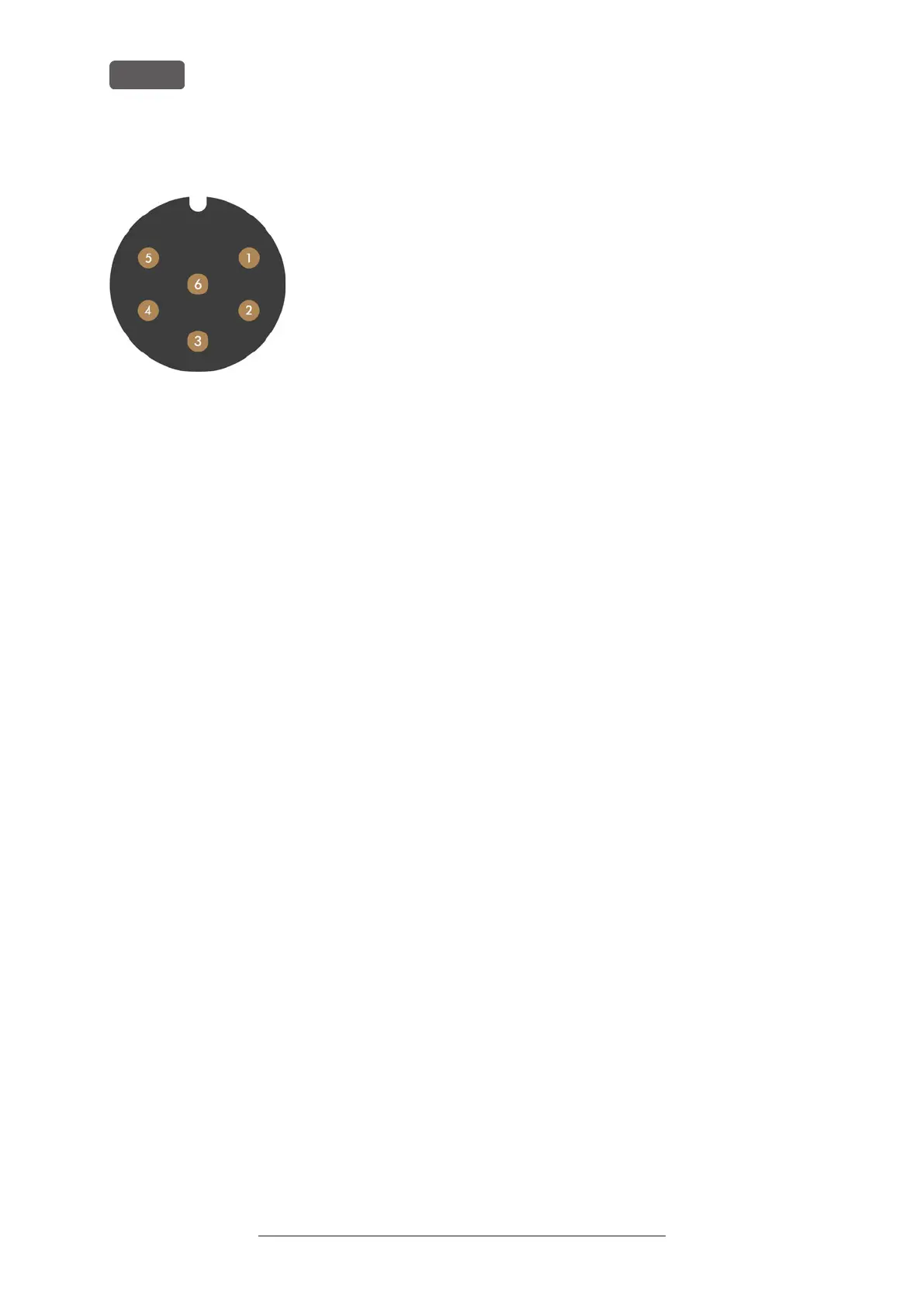

Pin assignment of the suction unit data port
FIG. 8
1. + 24 V, switched, output 1
2. + 24 V, switched, output 2 (not used)
3. +24 V, continuous
4. Rear signal input, output 2 (not used)
5. Rear signal input, output 1 (not used)
6. Ground (PE)
