hand.

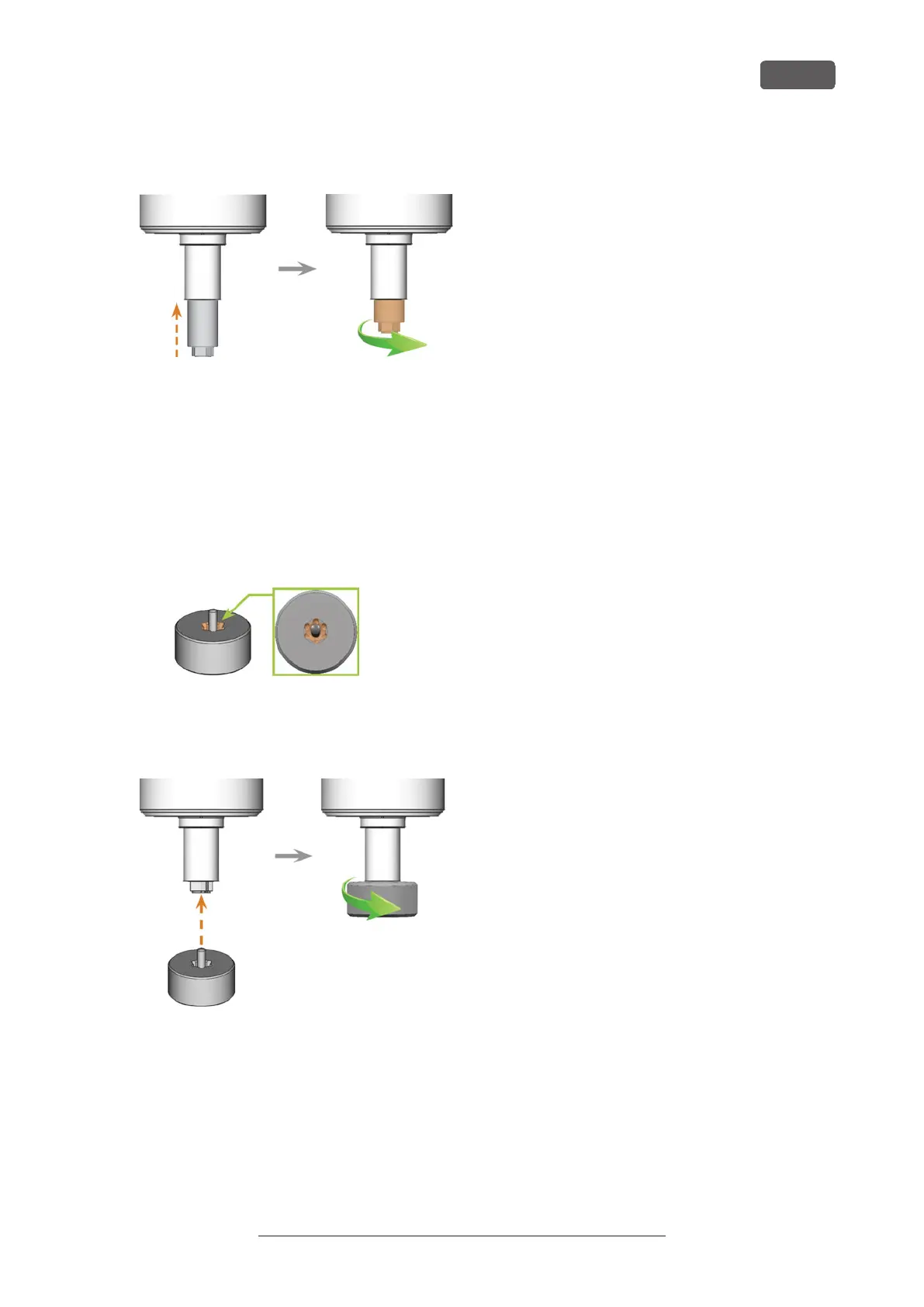

FIG. 87
NOTICE! Rotational imperfections when the
collet chuck is not tightened properly.
2. Tighten the collet chuck with the knurled nut with
pin:
a. Insert the pin of the knurled nut into the
collet chuck.
b. Ensure that the collet chuck is properly seated
in the recess of the knurled nut.
FIG. 88
c. Turn the knurled nut clockwise until the collet
chuck fits tightly in the spindle.
FIG. 89
3. Store the spindle service set in a safe place.
Maintenance
EN 49
Original Operating Instructions: E5
Version: 4/27/2023
