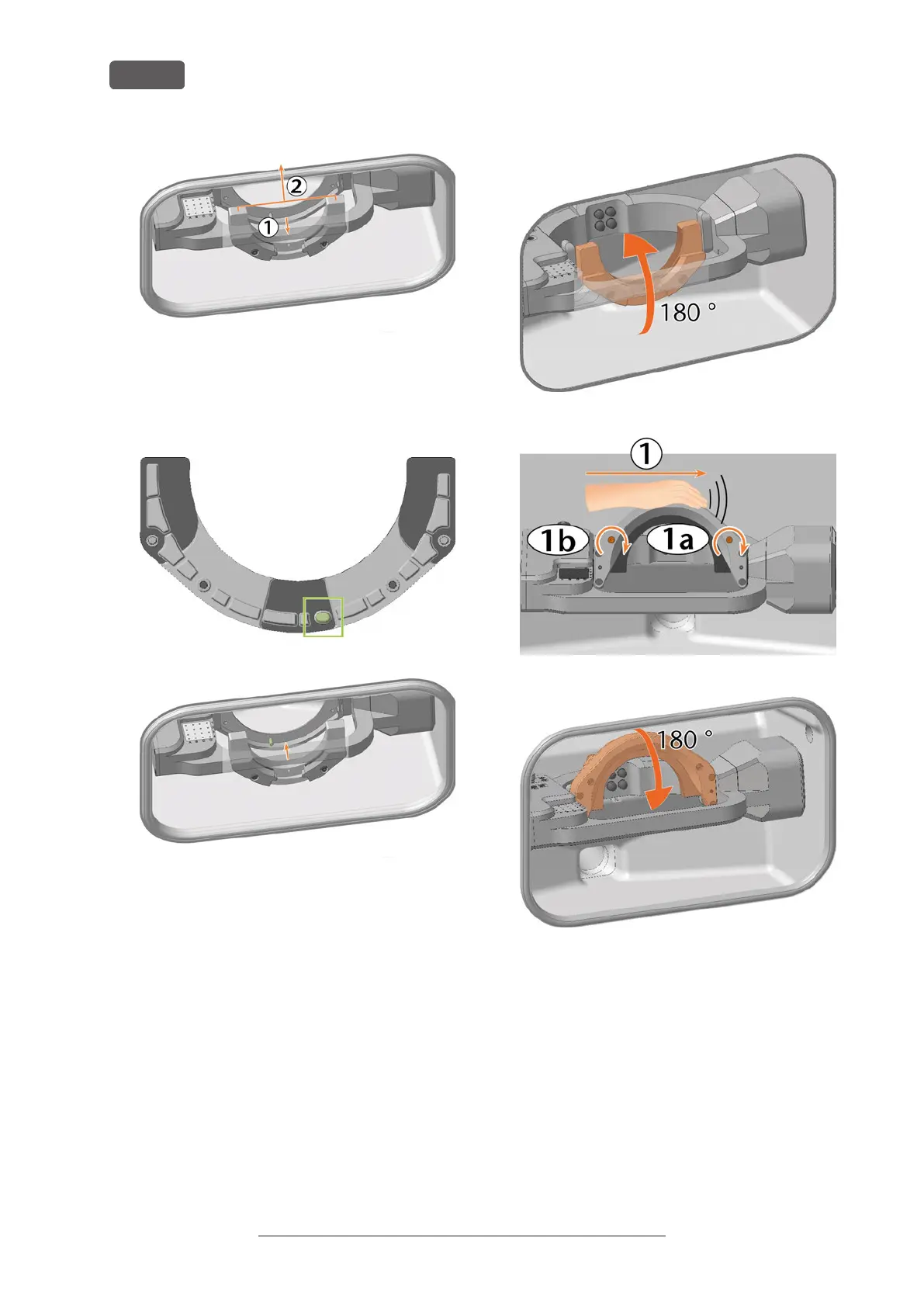

FIG. 101
12. A drilling for the positioning pin is located on the
rear side of the blank holder.
Slide the spare blank holder onto the positioning
pin.
FIG. 102
FIG. 103
13. Hold the blank holder. Gently turn the blank holder
180° upwards.
14. Screw the blank holder tight:
a. Press the blank holder to the right and hold it
in this position.
b. Tighten the right screw.
c. Tighten the left screw.
15. Gently turn the blank holder 180° down.
FIG. 104
FIG. 105
FIG. 106
NOTICE! Damage to tools, blanks and the
machine if the blank holder is positioned
incorrectly
16. Check that the blank holder engages the contact
surfaces of the support on the right side.
Original Operating Instructions:E5
Version: 4/27/2023
Maintenance
EN 52
